Tractor · 1990Unverified

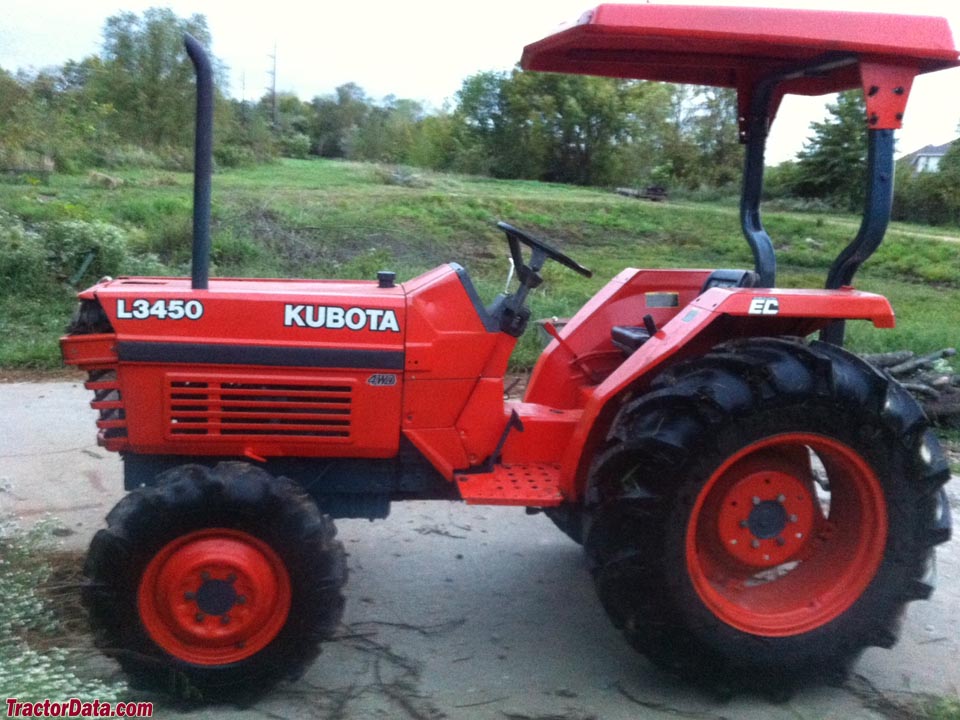

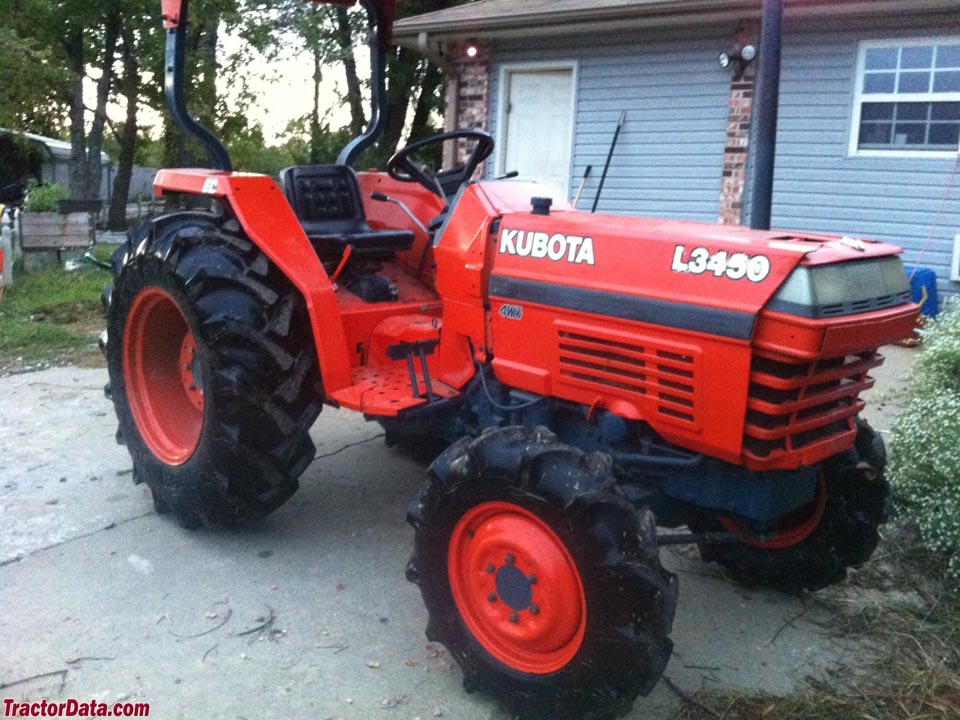

Kubota L3450
Kubota L3450 — L50 Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
2610 to 2900 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rear lockReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS. Optional canopy.Reference
Engine
Kubota 1.9L 4-cyl dieselReference
Engine (gross)27.4 kWReference
Kubota V1902-DI-AEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke85 x 82 mmReference
Power (gross)27.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque115.8 NmReference
Starter volts12Reference
Coolant capacity5.6 LReference
Oil capacity8.4 LReference
Oil change200 hReference
Transmission
8-speed mechanical shuttleReference
8-speedReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears (1-4) in two ranges (Low-High) with left-hand reverser lever. Gears shifted with right-hand gear shift on the console. Ranges shifted with left-hand lever beside seat. Shuttle shifting is synchronized, using the clutch and at low engine RPMs. Tractor must be stopped to shift ranges. The transmission may be equipped with a dual-stage clutch. This can be identified if the PTO shift has 1000 RPMs on the left, and 540 RPMs on the right.Reference
TransmissionKubota Glide ShiftReference
Clutchdry discReference
Oil capacity27.0 LReference
Kubota Glide Shift (GST) allows for on-the-go shifting without using the clutch. Transmission should be shifted one gear at a time using the left-hand gear lever. Forward-reverse shuttle shifting may be done without the clutch.Reference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Hydraulic system28.4 LReference
Typeopen centerReference
Capacity28.4 LReference
Pressure171.7 barReference
Pump flow31.0 lpmReference
Rear Type1Reference
Controlposition control with optional draft controlReference
Rear lift (at ends)1199 kgReference
Rear lift (at 24"/610mm)929 kgReference
Rear PTOtransmssionReference
Rear PTOlive (optional)Reference
Rear PTO Type540/1000 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type1080/2000Reference
Capacities
Fuel29.1 LReference
Dimensions
Wheelbase173 cmReference
Weight2610 to 2900 poundsReference
Front tire5.00-15Reference
Rear tire12.4-24 (2WD)Reference
Weight215 kgReference
Standard tires (ag)Front: 5.00-15. Rear: 12.4-24 (2WD)Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24 (4WD)Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear355/80-D20Reference
Length290 cmReference
Width136 cmReference
Height (steering wheel)147 cmReference
Height (ROPS)210 cmReference
Ground clearance34 cmReference
Front tread115/124/134/145 cmReference
Front tread112 cmReference
Rear tread104/115/123/133/141/151 cmReference
2WD1183 kgReference
4WD1290 kgReference
GST1315 kgReference
Max Drawbar648 kgReference
Kubota L3450 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA447Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Kubota LA650 loaderReference
Kubota LA650A loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Kubota RC72-28Reference
Type3-bladeReference
Cutting width182 cmReference
Overall width225 cmReference
Cut height3 to 11 cmReference
Kubota L4530B Backhoe
Backhoe typeKubota L4530B BackhoeReference
Transport height180 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth243 cmReference
Reach from pivot284 cmReference
Loading height179 cmReference
Bucket Rotation194°Reference
Swing Arc180°Reference
Bucket force1310 kgReference
Dipperstick force746 kgReference
Kubota L4560 Backhoe
Backhoe typeKubota L4560 BackhoeReference
Transport height266 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Digging depth251 cmReference
Reach from pivot373 cmReference
Loading height252 cmReference
Bucket Rotation190°Reference
Swing Arc180°Reference
Bucket force2231 kgReference
Dipperstick force1102 kgReference
Kubota BL4590 Backhoe
Backhoe typeKubota BL4590 BackhoeReference
Transport height200 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Speeds
With 12.4-24 rear tires. Reverse speeds are about 10% slower than forward.Reference
With 12.4-24 rear tires. Reverse speeds are about 20% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
