Kubota L3540
Kubota L3540 — L40 Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3296 to 3395 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price$21,157 (2011)Reference
The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.Reference
Four-wheel driveReference
Differential lockstandardReference
Steeringhydrostatic power steeringReference
Mechanical wet disc brakesReference

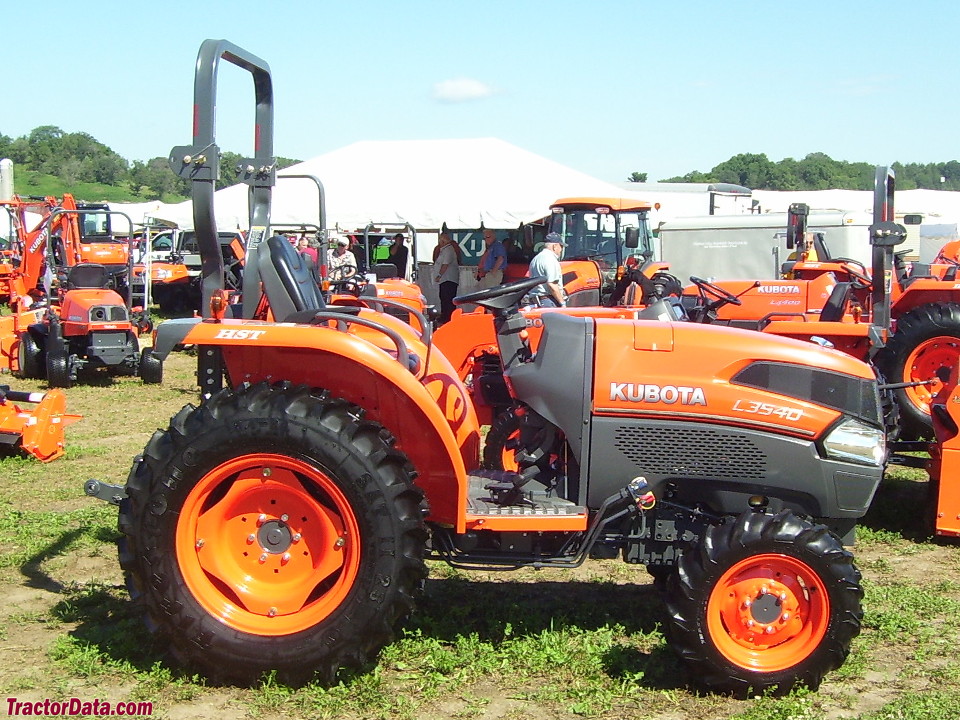

Two-post ROPS. Grand CAB on L3540HSTC. Optional radio/CD player.Reference
Variants
L3540GSTgearReference
L3540HSThydroReference

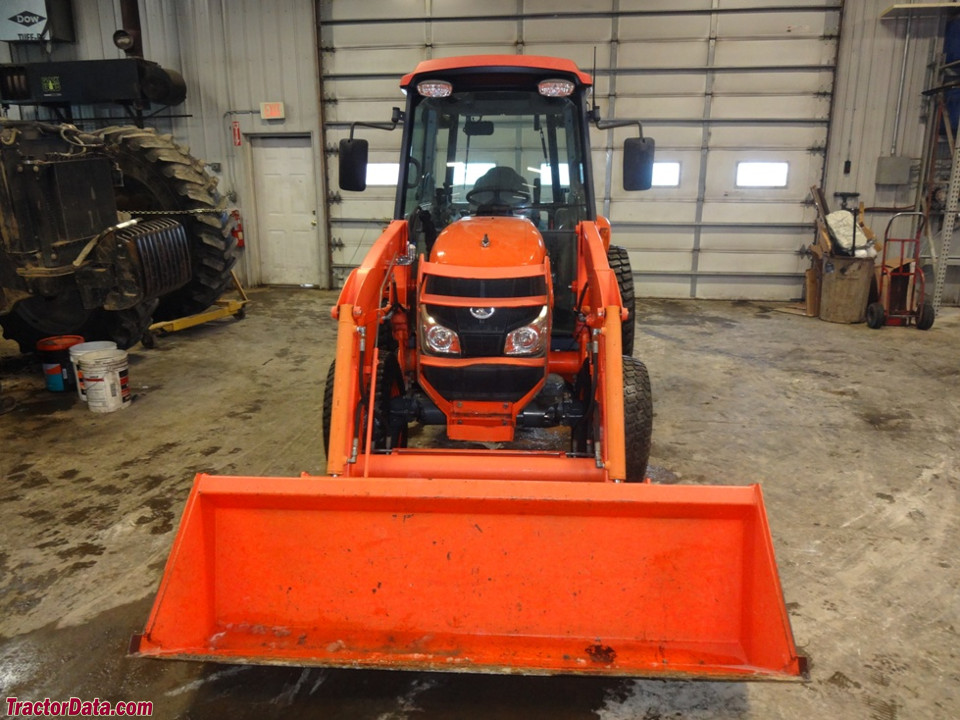

L3540HSTChydro cabReference
Engine
Kubota 1.8L 3-cyl dieselReference
Engine (gross)27.6 kWReference
Engine (net)26.1 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke85 x 102 mmReference
Power (net)26.1 kWReference
Power (gross)27.6 kWReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity6.7 LReference
Coolant capacity7.5 LReference
Transmission
hydrostaticReference
12-speedReference
TransmissionHST PlusReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.Reference
TransmissionGlide Shift (GST)Reference
Gears12 forward and 8 reverseReference
Oil capacity42.0 LReference
PTO & Hydraulics
Gear PTO (claimed)22.0 kWReference
Hydro PTO (claimed)20.9 kWReference
Hydraulic system42.0 LReference
Typeopen centerReference
Capacity42.0 LReference
Valves2 to 3Reference
Pump flow31.4 lpmReference
Total flow50.0 lpmReference
Steering flow18.5 lpmReference

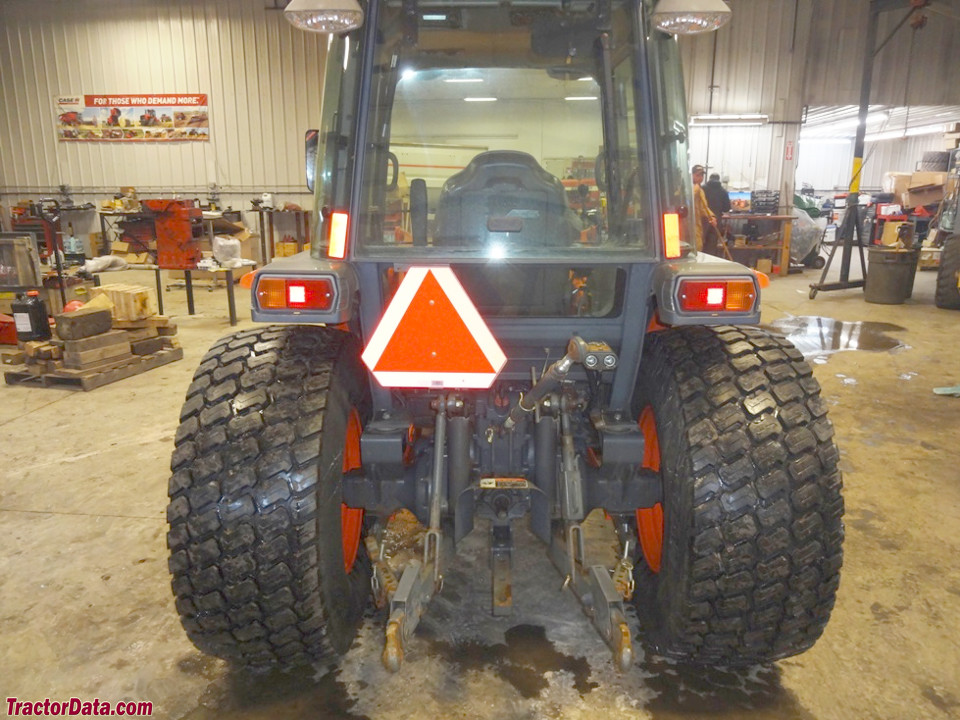

Rear TypeIReference
Rear lift (at ends)1701 kgReference
Rear lift (at 24"/610mm)1 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2550Reference
Mid PTOsemi-independent (optional)Reference
Mid PTO Type2000Reference
Capacities
Fuel43.9 LReference
Front axle6.5 LReference
Dimensions
Wheelbase180 cmReference
Weight3296 to 3395 poundsReference
Front tire7.2-16Reference
Rear tire12.4-24Reference
Weight210 kgReference
Standard tires (ag)Front: 7.2-16. Rear: 12.4-24Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf front27-10.50LLx15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf rear355/80-D20Reference
Lawn/turf rear41-18LLx16.1Reference
Industrial front10-16.5Reference
Industrial rear420/70-24Reference
Length292 cmReference
Width151 cmReference
Height230 cmReference
Weight1495 kgReference
Weight1539 kgReference
Ground clearance35 cmReference
Front tread115 cmReference
Rear tread119 to 148 cmReference
Kubota L3540 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging amps40Reference
Charging amps55 (cab)Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Kubota LA514 loaderReference

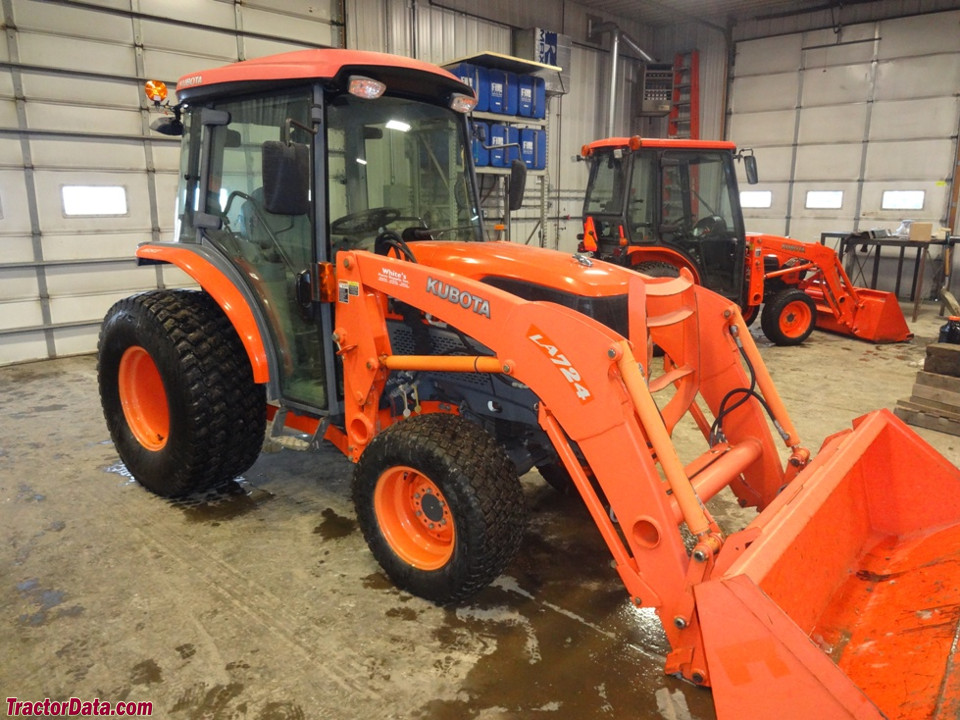

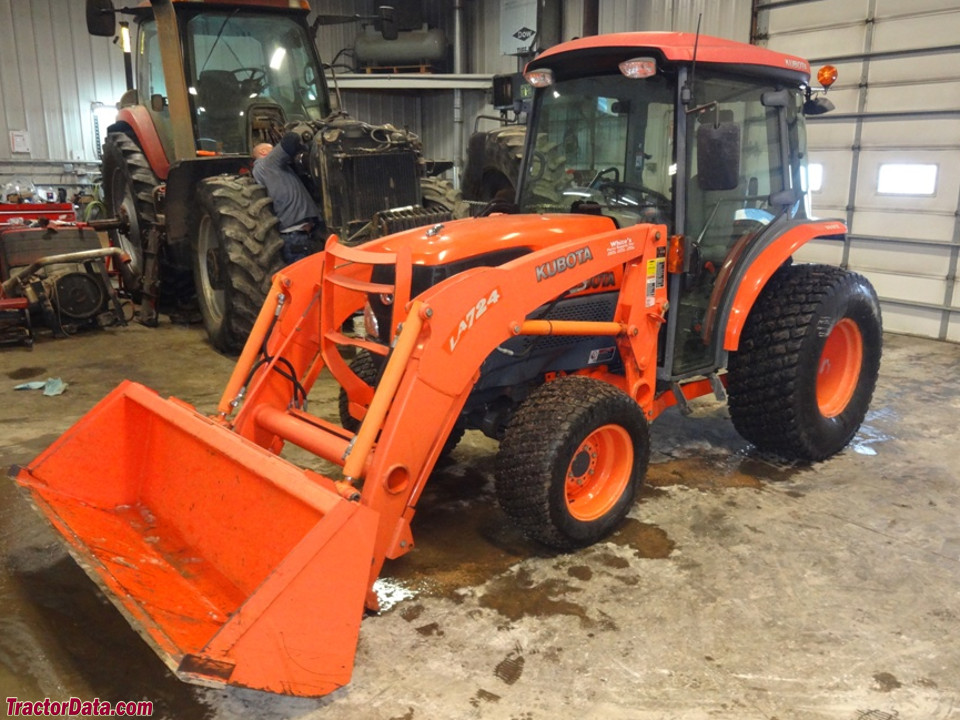

Kubota LA724 loaderReference
BackhoeReference
The mid-mount mower and front-mount snowblower require the optional mid PTO.Reference
72" Mower deck
Typemid-mount Kubota RC72Reference
Type3-bladeReference
Cutting width182 cmReference
Cut height3 to 11 cmReference
Kubota BH76 Backhoe
Backhoe typeKubota BH76 BackhoeReference
2-Foot flat digging depth231 cmReference
Reach from pivot306 cmReference
Loading height163 cmReference
Bucket force1514 kgReference
Dipperstick force951 kgReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
2-Foot flat digging depth234 cmReference
Reach from pivot315 cmReference
Loading height170 cmReference
Bucket force1551 kgReference
Dipperstick force993 kgReference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
2-Foot flat digging depth278 cmReference
Reach from pivot382 cmReference
Loading height214 cmReference
Bucket force2062 kgReference
Dipperstick force1223 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
