Tractor · 2013Unverified

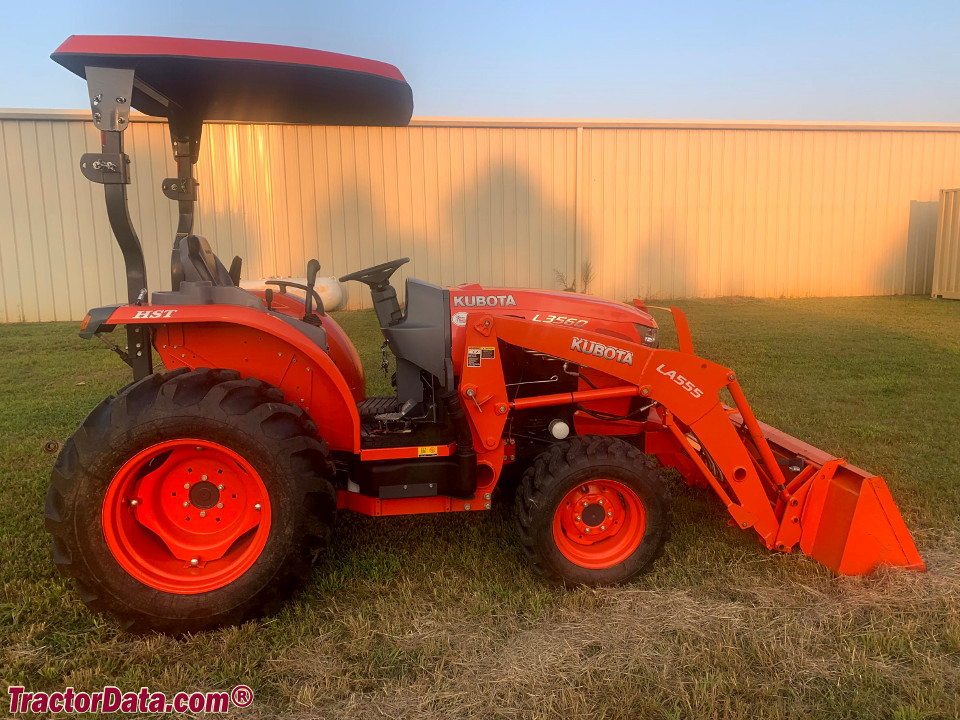

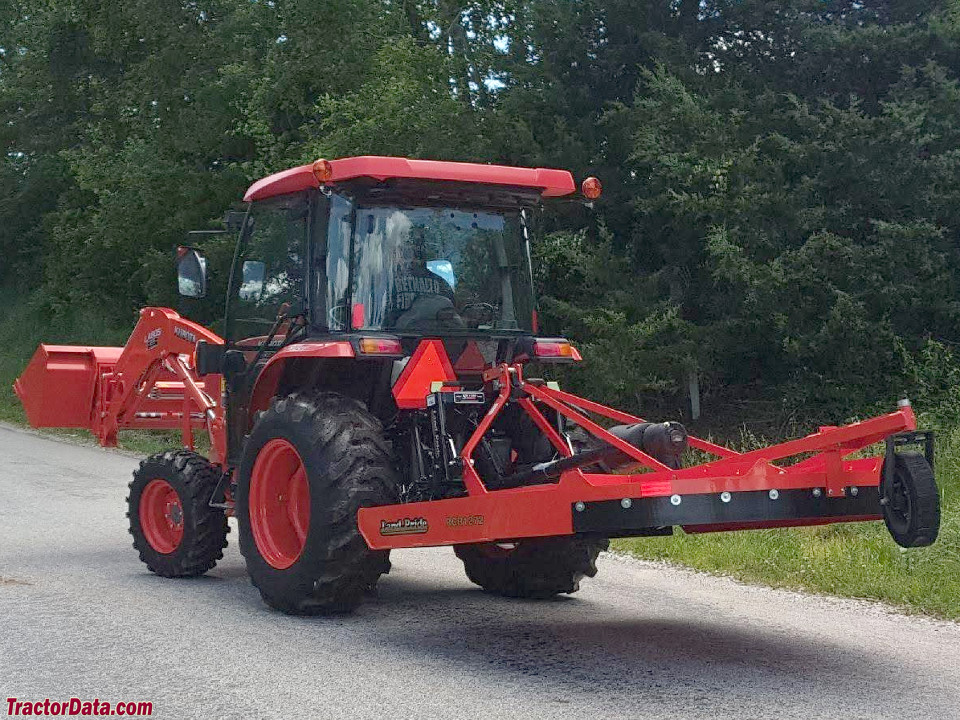

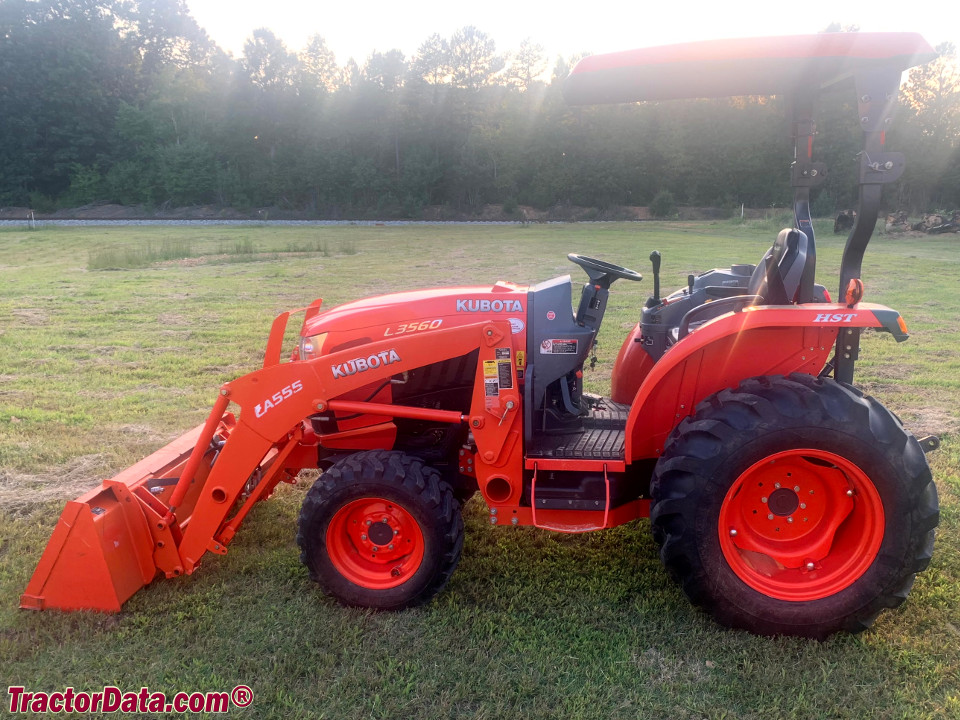

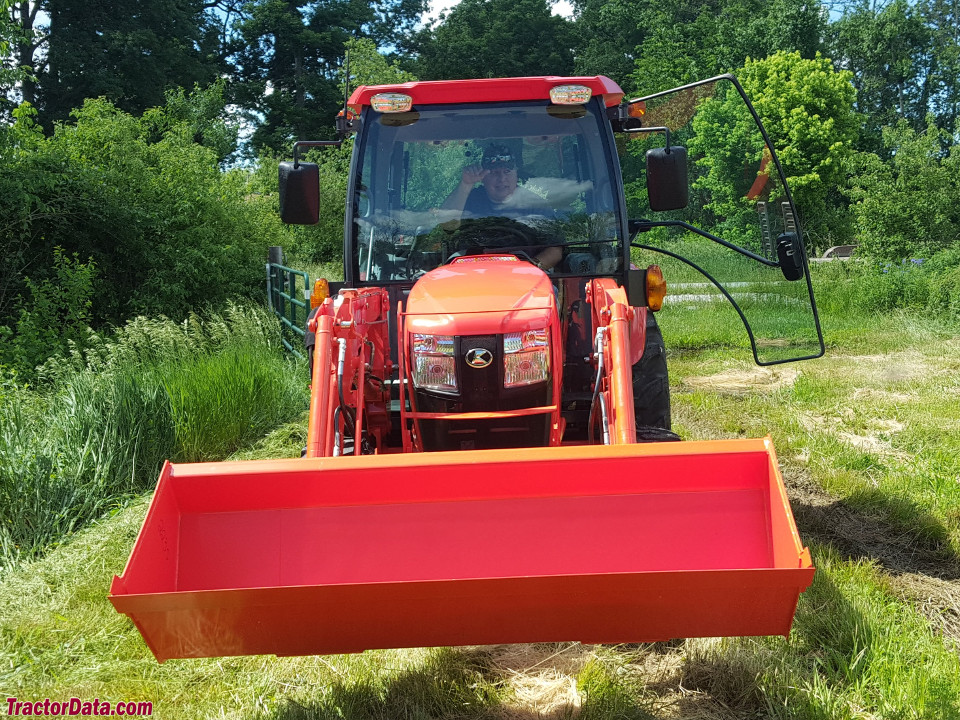

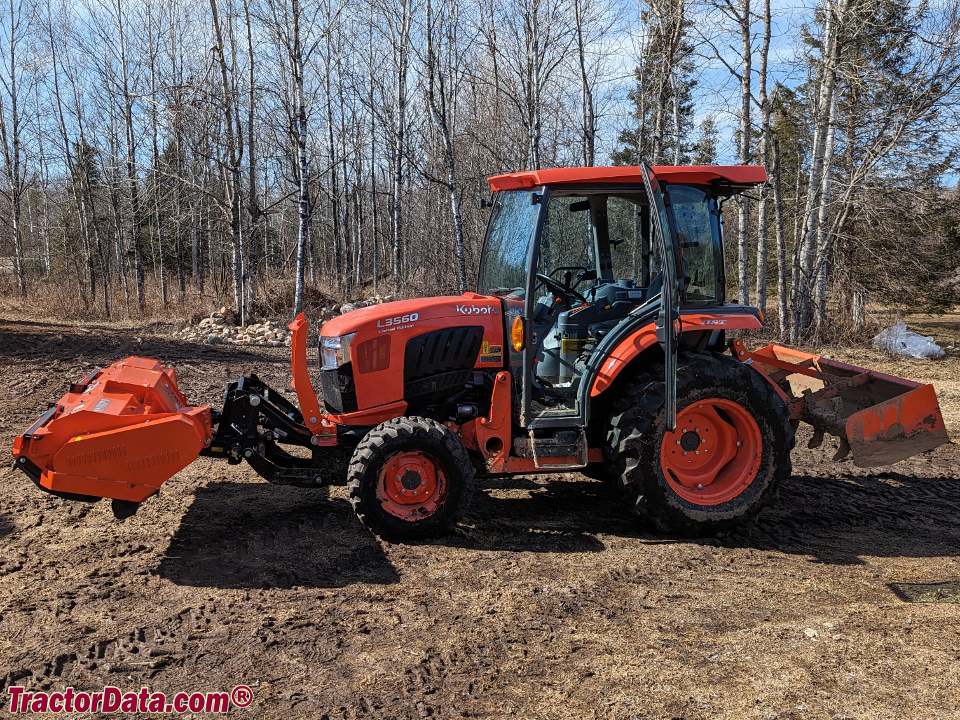

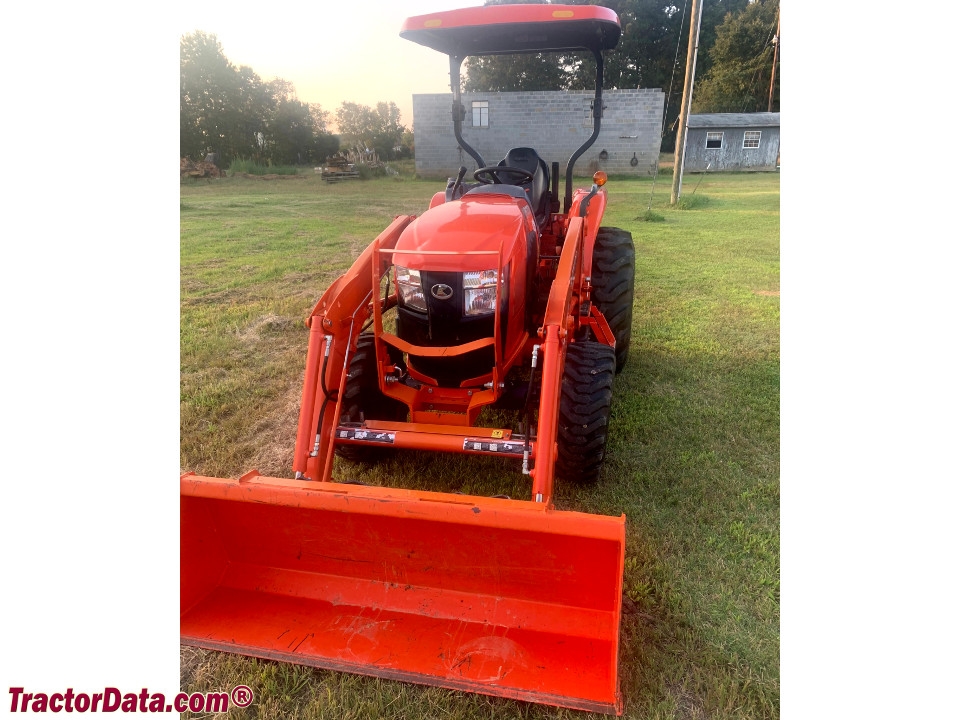

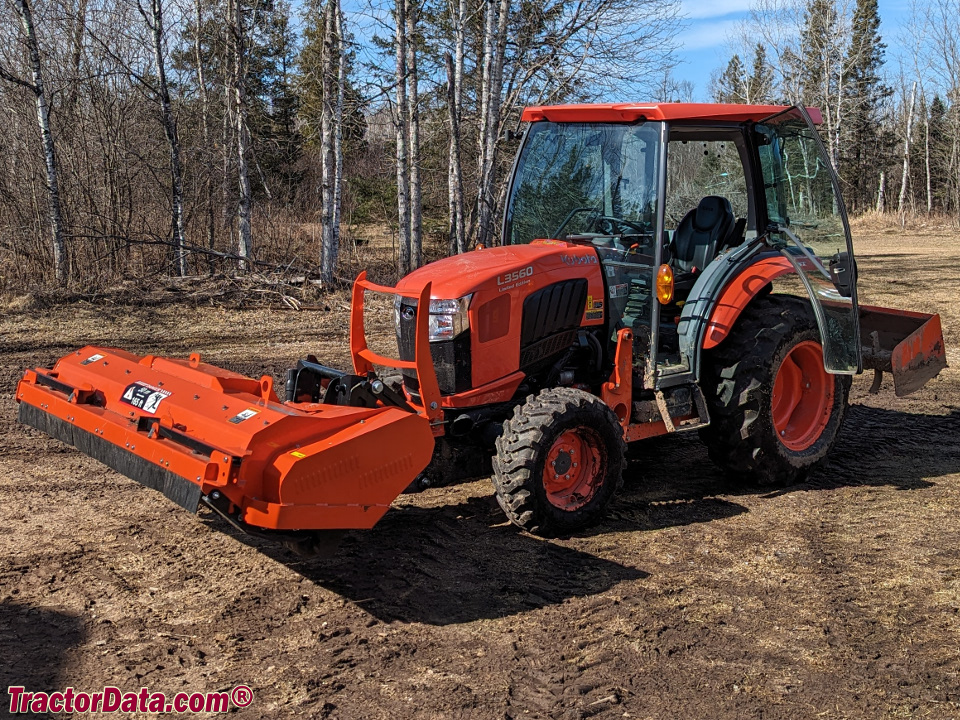

Kubota L3560

Name: Kubota L3560
Brand: Kubota

Kubota L3560 — L60 Series · 37 hp. Reference specifications; pending source verification.

The Kubota L3560 is a tractor with a rated output of 37 hp, characterising it as one of the more compact options in its class. Production of the L3560 took place between 2013 and 2025. It is equipped with a 3-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system coupled with a hydrostatic transmission. The listed weight of the tractor ranges from 3483 to 3880 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

37 hp

Max power

37 hp

Weight

3483 to 3880 pounds

Catalogue coverage

Variants represented

Richest spec table

152 rows

Recorded power

37 hp

Transmissions

8-speed synchronized shuttle

Production years

2013-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $29,407 in 2025Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS. Grand Cab with air-conditioning available with hydrostatic.Reference

Variants

L3560DT4WDReference

L3560GST4WD 12-speedReference

L3560HSThydrostaticReference

L3560HSTChydro cabReference

Engine

Kubota 1.8L 3-cyl dieselReference

Fuel tank51.1 LReference

Engine (gross)27.6 kWReference

Engine (net)26.1 kWReference

KubotaReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke86 x 102 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation (EGR)Reference

Power (net)26.1 kWReference

Power (gross)27.6 kWReference

Fuel systemdirect injectionReference

Rated RPM2700 (gear)Reference

Rated RPM2600 (hydro)Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Rated engine speed2,700 rpmReference

Bore and stroke87 X 102.4 mmReference

Transmission

8-speed synchronized shuttleReference

12-speedReference

hydrostaticReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchmechanical dry discReference

TransmissionKubota Glide ShiftReference

Gears12 forward and 8 reverseReference

Clutchhydraulic dry discReference

TransmissionHST PlusReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Hydrostatic transmission with three ranges plus Hydro Dual Speed Hi-Lo. The Dual Speed allows rapid switching between two speeds in range, either automatically or with a lever on the steering column.Reference

Transmission TypeHSTReference

forward and reverse options3 RangesReference

forward speed range1.6 - 26.6 km/hReference

reverse speed range1.5 - 25.4 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)22.0 kWReference

PTO (claimed)20.9 kWReference

Gear Pump flow31.4 lpmReference

Hydro Pump flow30.7 lpmReference

Gear Total flow50.0 lpmReference

Hydro Total flow48.4 lpmReference

Gear Steering flow18.5 lpmReference

Hydro Steering flow17.8 lpmReference

Rear TypeIReference

Controlposition control, draft control optionalReference

Rear lift (at 24"/610mm)1200 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase180 cmReference

Weight3483 to 3880 poundsReference

Front tire7.0-16Reference

Rear tire12.4-24Reference

Ag front7.0-16Reference

Ag rear12.4-24Reference

Length292 cmReference

Width151 cmReference

Height (ROPS)246 cmReference

Height (cab)230 cmReference

Ground clearance34 cmReference

Flange rear axleReference

Front tread115 cmReference

Rear tread119/130/138/148 cmReference

1579 kgReference

1584 kgReference

1589 kgReference

1759 kgReference

Kubota L3560 attachments

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps40Reference

Cab Charging amps60Reference

Battery volts12Reference

Battery size12 VReference

Alternator size12 VReference

Attachment overview

SnowblowerReference

BladeReference

Kubota LA555 loaderReference

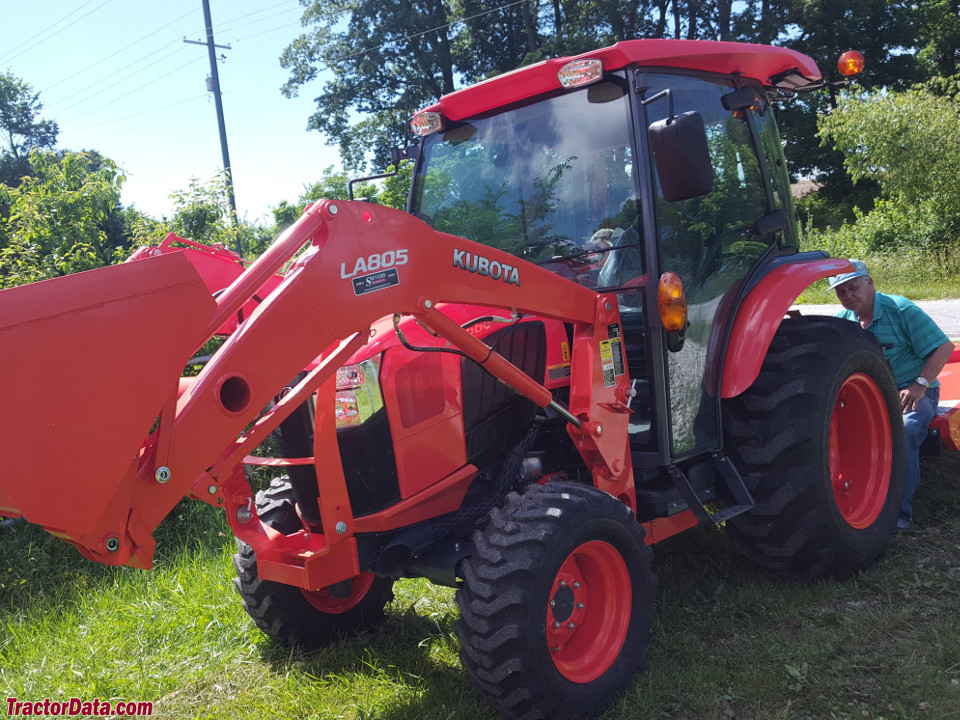

Kubota LA805 loaderReference

BackhoeReference

Kubota BH77 Backhoe

Backhoe typeKubota BH77 BackhoeReference

Transport height204 cmReference

Bucket width25 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width60 cmReference

Digging depth231 cmReference

Loading height163 cmReference

Bucket Rotation182°Reference

Swing Arc180°Reference

Bucket force1514 kgReference

Dipperstick force951 kgReference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

Transport height254 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width60 cmReference

Bucket width76 cmReference

Bucket width91 cmReference

Digging depth278 cmReference

Loading height214 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force2062 kgReference

Dipperstick force1223 kgReference

Capacities

Capacity1,826 ccReference

Power

Max Power37 hpReference

PTO

PTO Power28 hpReference

Rear PTO PowerTRUEReference

Rear PTO ControlIndependentReference

Rear PTO RPM540 rpmReference

Mid PTO RPM2,000 rpmReference

Steering & brakes

BrakesWet disc typeReference

Steering typeHydrostatic power steeringReference

Hydraulics

Pump Rated Output (total)48.3 l/minReference

Hydraulics Type3-point: Category 1Reference

Remote Valves3Reference

Steering & Implements flow17.9 lpm (30.4 lpm)Reference

Rear Hitch category (SAE designation)Category IReference

General

SCV controlJoystickReference

Rear tread spacing1,480 mmReference

Dimensions & weight

Overall Height2,470 mmReference

Overall Length2,920 mmReference

Overall Width1,520 mmReference

Turning radius8.9 feet (with Brakes)Reference

Overall weight1,759.9 kgReference

Wheels & tyres

Rear Wheel Type12.4-24Reference

Front Wheel Type7.0-16Reference

Front Wheel tread range1,155 mmReference

Operator station

Cab AvailabilityOptionalReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
