Tractor · 1994Unverified
Kubota L3600
Kubota L3600 — Grand L Series · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
2800 to 2955 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Kubota 1.9L 4-cyl dieselReference
Engine (gross)28.7 kWReference
Engine (net)26.6 kWReference
Plows2 (14-inch)Reference
Kubota V1903Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke79 x 91 mmReference
Power (net)26.6 kWReference
Power (gross)28.7 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
Torque120.3 NmReference
Starter volts12Reference
Coolant capacity7.5 LReference
Oil capacity6.0 LReference
Oil change100 hReference

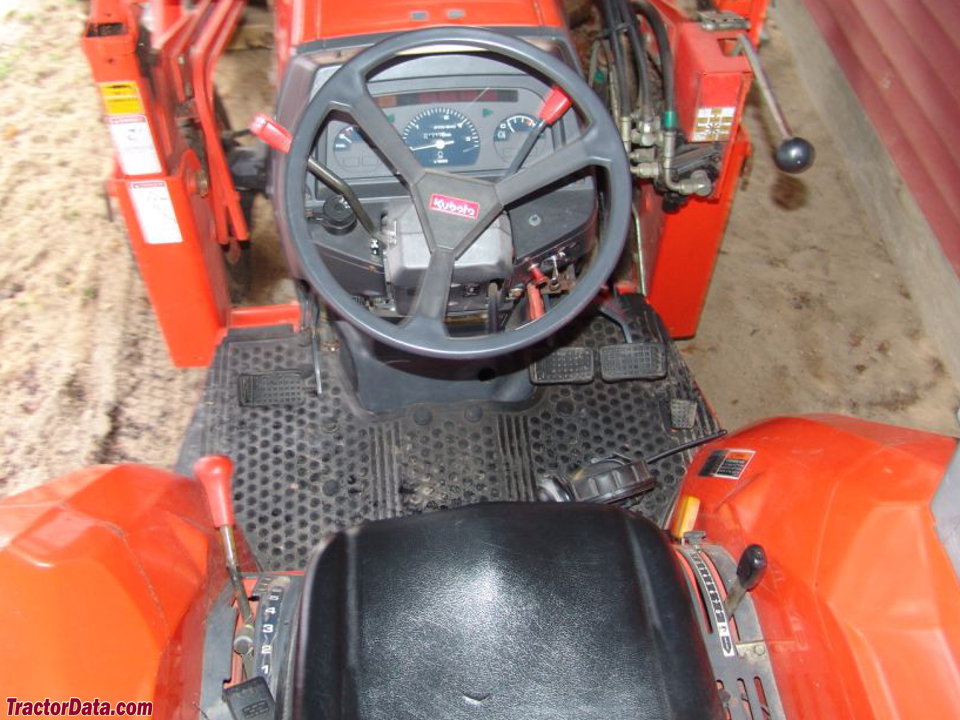

Transmission
8-speed synchronized shuttleReference
8-speed power shuttleReference
TransmissionFSTReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Oil capacity39.0 LReference
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionGlide Shift (GST)Reference
Typepower shuttleReference
Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears.Reference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Hydraulic system39.0 LReference
Typeopen centerReference
Capacity39.0 LReference
Pressure171.7 barReference
Pump flow29.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1301 kgReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2447Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Engine RPM2000@2404Reference
Capacities
Fuel34.8 LReference
Dimensions
2WD Wheelbase181 cmReference
4WD Wheelbase180 cmReference
Weight2800 to 2955 poundsReference
Front tire6.00-16Reference
Rear tire13.6-24 (2WD)Reference
Weight215 kgReference
Standard tires (ag)Front: 6.00-16. Rear: 13.6-24 (2WD)Reference
Standard tires (ag)Front: 8.3-16. Rear: 13.6-24 (4WD)Reference
Length299 cmReference
Width142 cmReference
Height (steering wheel)152 cmReference
Height (ROPS)212 cmReference
Ground clearance33 cmReference
Front tread114/124/134/144 cmReference
Front tread115 cmReference
Rear tread107/117/119/130/145/154 cmReference
2WD ROPS1270 kgReference
4WD ROPS1340 kgReference
Max Drawbar648 kgReference
Kubota L3600 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA447Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference

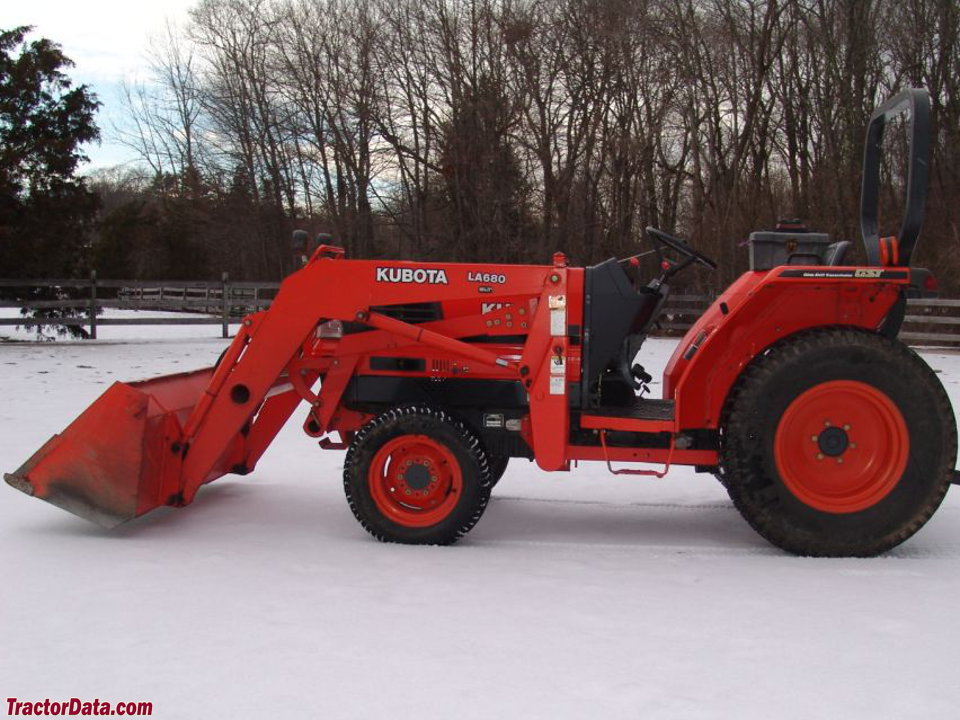

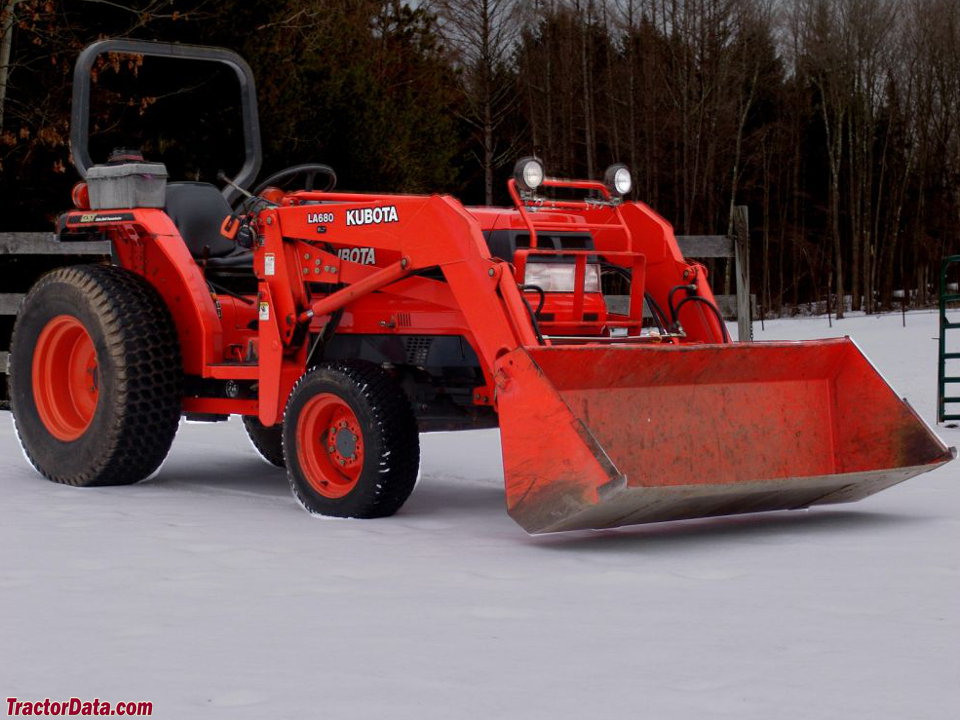

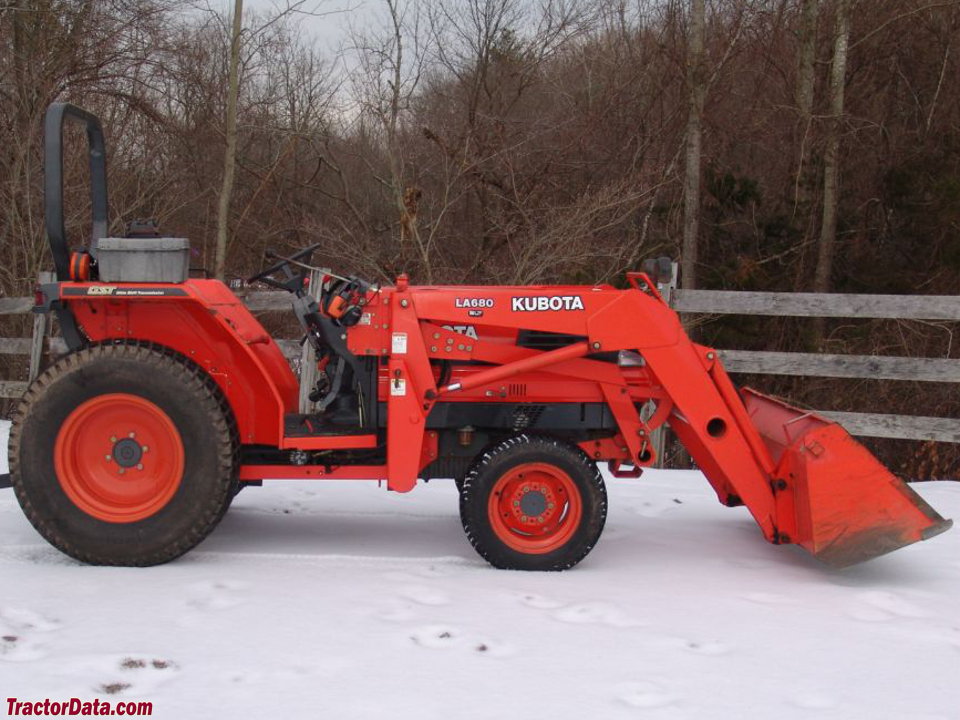

Kubota LA680 loaderReference
Kubota LA681 loaderReference
BackhoeReference
The maximum trailer load for the L3600 is 5,500 pounds. Mid and rear mount mowers up to 72 inches were recommended, and tillers up to 60 inches in width.Reference
72" Mower deck
Typemid-mount Kubota RC72-36Reference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width225 cmReference
Cut height3 to 10 cmReference
Kubota BL4690 Backhoe
Backhoe typeKubota BL4690 BackhoeReference
Transport height194 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Speeds
With 16.6-24 rear tires.Reference
