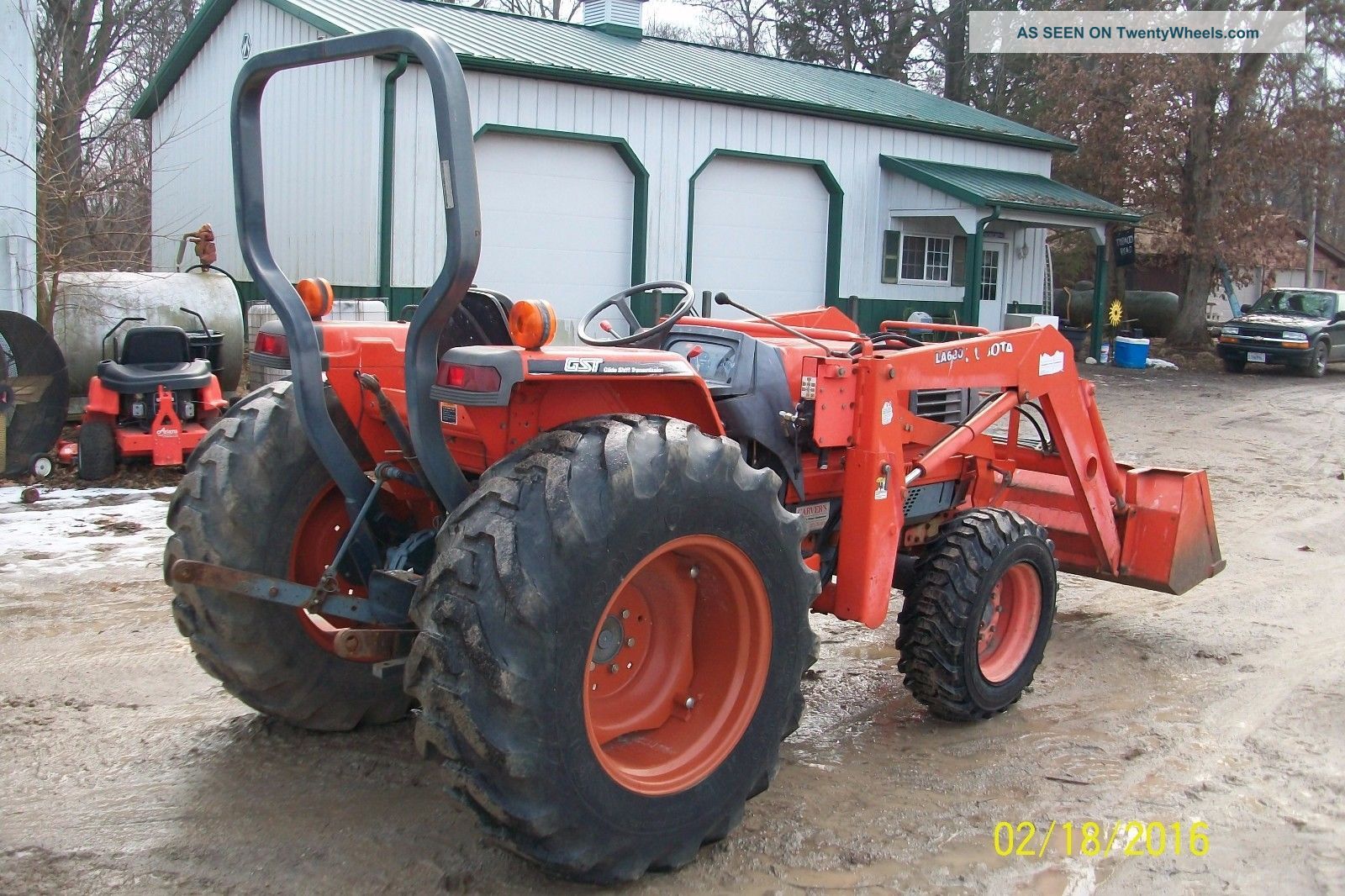

The Kubota L3602 is a tractor with a rated power output of 36 hp, which positions it at the lighter end of its class. It was manufactured from 1978 to 1985. The tractor features a 4-cylinder diesel liquid-cooled engine paired with four-wheel drive and a 16-speed gearbox. It is suitable for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Catalogue coverage
Variants represented
2
Richest spec table
24 rows
Recorded power
36 hp
Transmissions
16-speed
Production years
1978-1985
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
L36022WDReference
L3602DT4WDReference
Engine
Kubota 1.9L 4-cyl dieselReference
Engine26.5 kWReference
Kubota V1902Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke84 x 81 mmReference
Power26.5 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
