Tractor · 1990Unverified
Kubota L3650
Kubota L3650 — L50 Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
2700 to 2965 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rear lockReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS. Optional canopy.Reference
Engine
Kubota 1.9L 4-cyl dieselReference
Engine (gross)30.2 kWReference
Kubota V1902-DI-X-AEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke85 x 82 mmReference
Power (gross)30.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
Torque124.6 NmReference
Starter volts12Reference
Coolant capacity5.6 LReference
Oil capacity8.4 LReference
Oil change200 hReference
Transmission
8-speed mechanical shuttleReference
8-speedReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears (1-4) in two ranges (Low-High) with left-hand reverser lever. Gears shifted with right-hand gear shift on the console. Ranges shifted with left-hand lever beside seat. Shuttle shifting is synchronized, using the clutch and at low engine RPMs. Tractor must be stopped to shift ranges. The transmission may be equipped with a dual-stage clutch. This can be identified if the PTO shift is engaged (540 RPMs) to the right.Reference
TransmissionKubota Glide ShiftReference
Clutchdry discReference
Oil capacity27.0 LReference
Kubota Glide Shift (GST) allows for on-the-go shifting without using the clutch. Transmission should be shifted one gear at a time using the left-hand gear lever. Forward-reverse shuttle shifting may be done without the clutch.Reference
PTO & Hydraulics
PTO (claimed)24.6 kWReference
Hydraulic system28.4 LReference
Typeopen centerReference
Capacity28.4 LReference
Pressure171.7 barReference
Pump flow31.0 lpmReference
Rear Type1Reference
Controlposition control with optional draft controlReference
Rear lift (at ends)1199 kgReference
Rear lift (at 24"/610mm)929 kgReference
Rear PTOtransmssionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel29.1 LReference
Dimensions
Wheelbase173 cmReference
Weight2700 to 2965 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-26Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-26Reference
4WD Standard tires (ag)Front: 8-16. Rear: 13.6-26Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear355/80-D20Reference
Length294 cmReference
Width148 cmReference
Height (steering wheel)150 cmReference
Height (ROPS)215 cmReference
Ground clearance36 cmReference
2WD Front tread115/124/134/145 cmReference
4WD Front tread112 cmReference
Rear tread115/122/132/134/145 cmReference
2WD1224 kgReference
4WD1319 kgReference
GST1344 kgReference
Max Drawbar648 kgReference
Kubota L3650 attachments
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA447Reference
Battery volts12Reference
Attachment overview
BladeReference

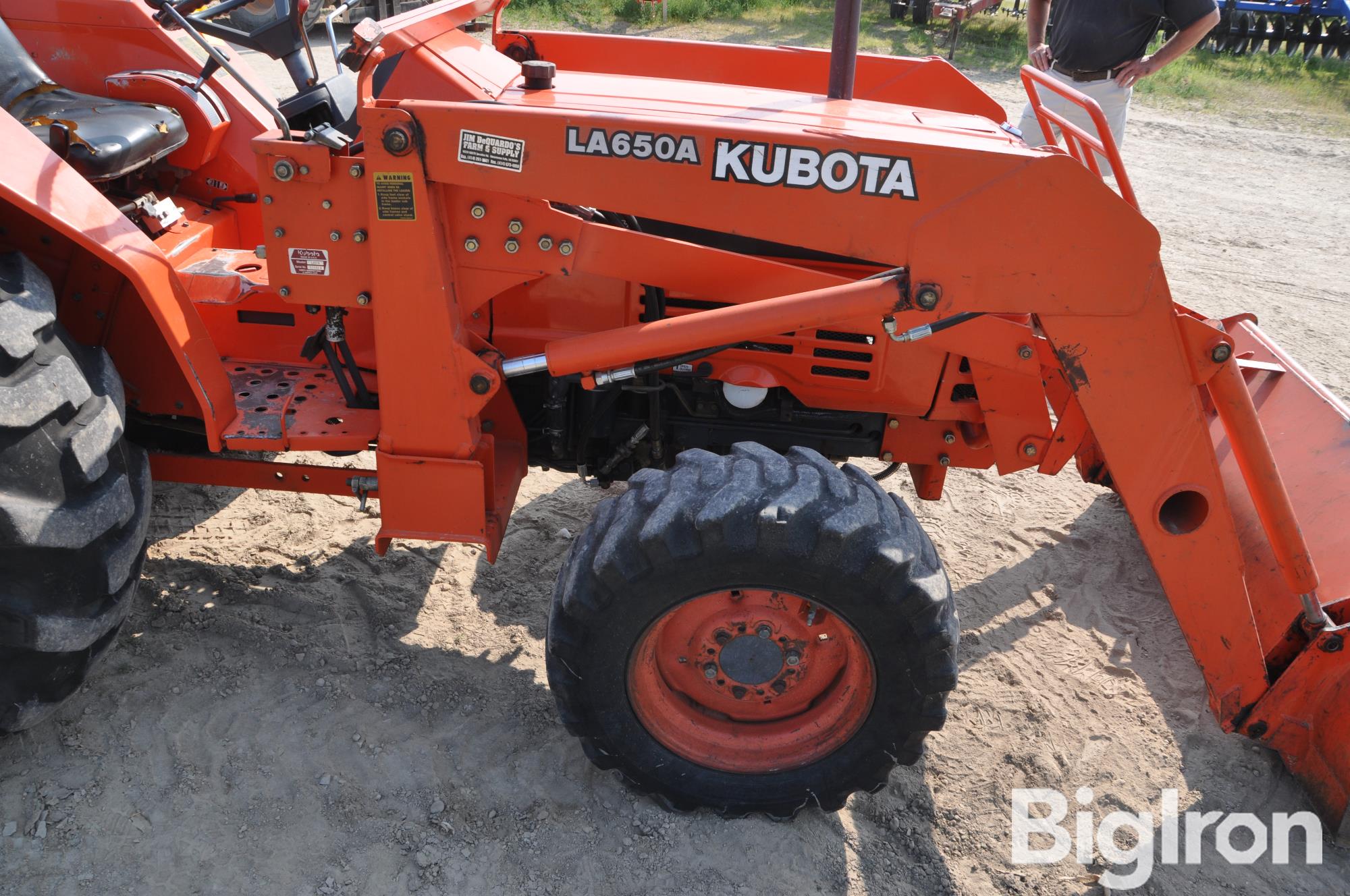

Kubota LA650 loaderReference
Kubota LA650A loaderReference
BackhoeReference
Kubota L4530B Backhoe
Backhoe typeKubota L4530B BackhoeReference
Transport height180 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth243 cmReference
Reach from pivot284 cmReference
Loading height179 cmReference
Bucket Rotation194°Reference
Swing Arc180°Reference
Bucket force1310 kgReference
Dipperstick force746 kgReference
Kubota L4560 Backhoe
Backhoe typeKubota L4560 BackhoeReference
Transport height266 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Digging depth251 cmReference
Reach from pivot373 cmReference
Loading height252 cmReference
Bucket Rotation190°Reference
Swing Arc180°Reference
Bucket force2231 kgReference
Dipperstick force1102 kgReference
Kubota BL4590 Backhoe
Backhoe typeKubota BL4590 BackhoeReference
Transport height200 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Speeds
With 13.6-26 rear tires. Reverse speeds are about 10% slower than forward.Reference
With 13.6-26 rear tires. Reverse speeds are about 20% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
