Tractor · 2010Unverified

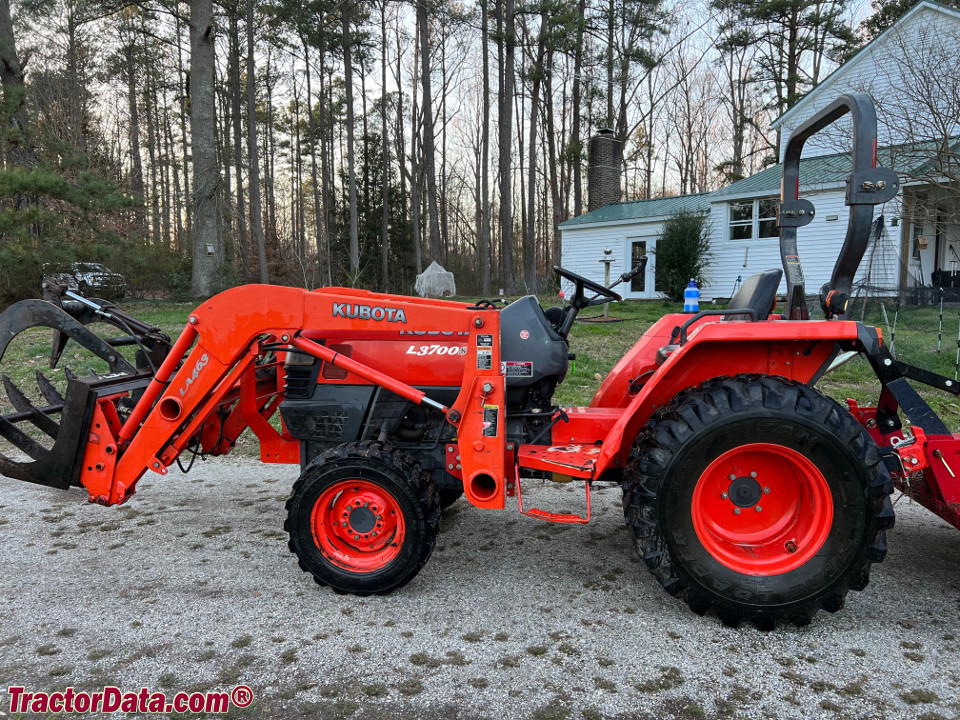

Kubota L3700SU
Kubota L3700SU — Utility tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
1164 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Original price was $20,050 in 2011Reference
Four-wheel driveReference
Differential lockrear standardReference
Power steeringReference
Mechanical wet disc brakesReference
Folding two-post ROPS. Optional sunshade.Reference
Engine
Kubota 1.8L 3-cyl dieselReference
Engine (gross)27.9 kWReference
Engine (net)26.6 kWReference
KubotaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
EmissionsInterim Tier IVReference
Power (net)26.6 kWReference
Power (gross)27.9 kWReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Hydraulic system23.5 LReference
Typeopen centerReference
Capacity23.5 LReference
Pump flow25.7 lpmReference
Total flow41.3 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Rear lift (at ends)906 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2425Reference
Capacities
Fuel34.1 LReference
Dimensions
Wheelbase160 cmReference
Weight1164 kgReference
Front tire7-16Reference
Rear tire11.2-24Reference
Ag front7-16Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Industrial front27x8.50-15Reference
Industrial rear15-19.5Reference
Length270 cmReference
Width130 cmReference
Height (ROPS)215 cmReference
Clearance (front axle)34 cmReference
Front tread109 cmReference
Rear tread102 to 129 cmReference
Kubota L3700SU attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA490Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
The Kubota L3700SU was configured with quick-attach loader as standard equipment and an optional backhoe. Kubota-recommended rear attachments included 64 or 74-inch snowblowers and 40, 50, or 60-inch tillers.Reference
Kubota BH76 Backhoe
Backhoe typeKubota BH76 BackhoeReference
Digging depth234 cmReference
2-Foot flat digging depth231 cmReference
8-Foot flat digging depth176 cmReference
Reach from pivot306 cmReference
Loading height163 cmReference
Bucket force1514 kgReference
Dipperstick force951 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
