Tractor · 1998Unverified

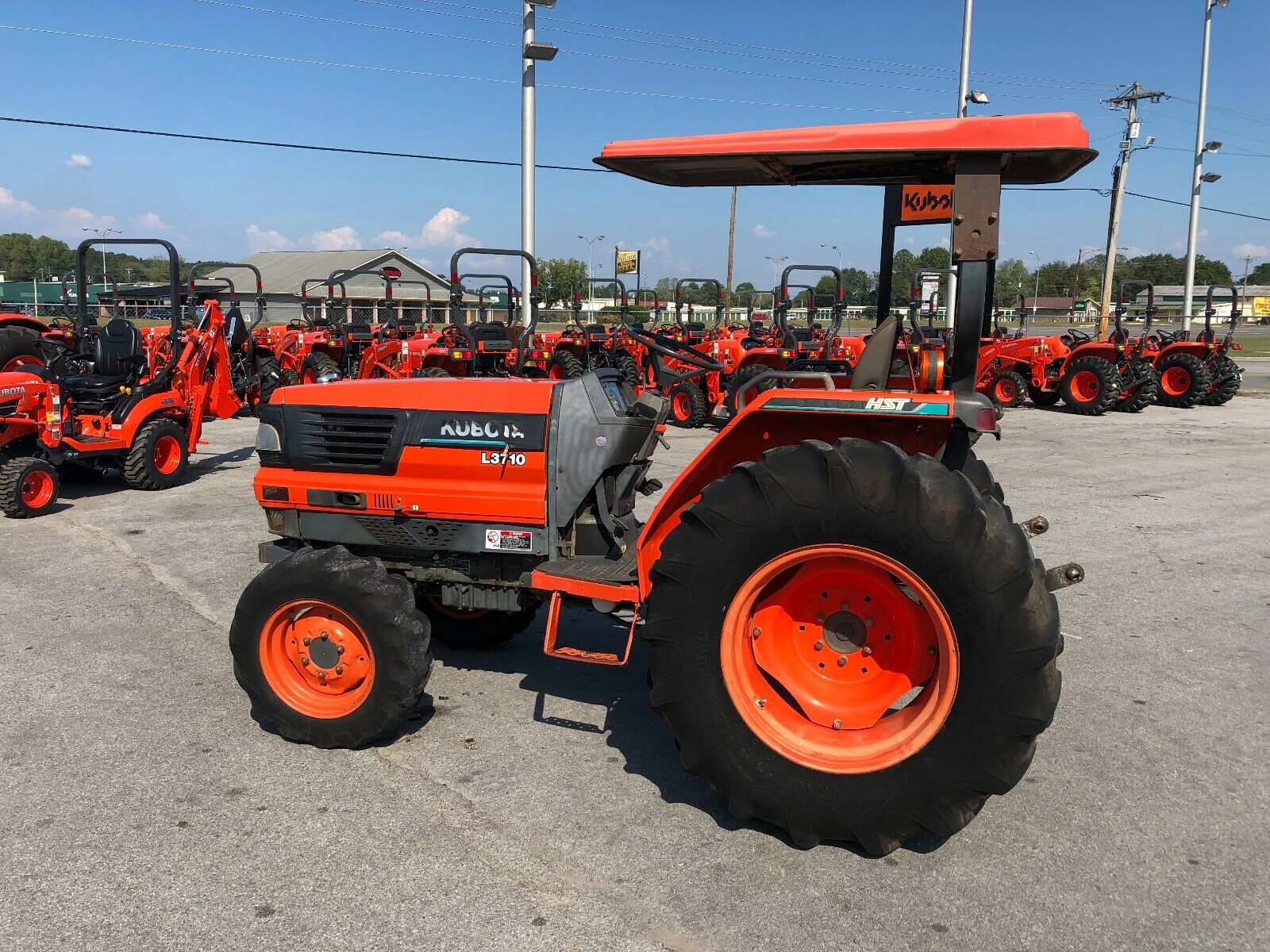

Kubota L3710
Kubota L3710 — Grand L10 Series · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
2955 to 3490 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
L3710DT4WD Gear ROPSReference
L3710GST4WD Glide Shift ROPSReference
L3710HST4WD Hydro ROPSReference
L3710HSTC4WD Hydro CabReference
Engine
Kubota 1.9L 4-cyl dieselReference
Engine (gross)28.7 kWReference
Engine (net)27.3 kWReference
Kubota E-TVCSReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke80 x 92 mmReference
Power (net)27.3 kWReference
Power (gross)28.7 kWReference
Rated RPM2600Reference
Starter volts12Reference
Coolant capacity7.5 LReference
Transmission
8-speed mechanical shuttleReference
hydrostaticReference
8-speed automatic fully synchronizedReference
16-speed creeperReference
4WD gear1340 kgReference
TransmissionFSTReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Four synchronized gears in two ranges. Synchronized shuttle shifting.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
TransmissionGlide Shift (GST)Reference
Typeautomatic fully synchronizedReference
The Glide Shift allows clutchless automatic shifting between gears.Reference
TypecreeperReference
Gears16 forward and reverseReference
Optional creeper range available for the FST or GST transmission.Reference
PTO & Hydraulics
Gear PTO (claimed)23.5 kWReference
Hydro PTO (claimed)22.4 kWReference
Hydraulic system39.0 LReference
Typeopen centerReference
Capacity39.0 LReference
Pump flow29.5 lpmReference
Steering flow15.5 lpmReference
Rear Type1Reference
Controlposition control and optional draft controlReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOsemi-independent (L3710HST)Reference
Mid PTO Type2000Reference
Capacities
Fuel34.8 LReference
Dimensions
Wheelbase180 cmReference
Weight2955 to 3490 poundsReference
Front tire8.3-16Reference
Rear tire14.9-24Reference
Weight215 kgReference
Ag front8.3-16Reference
Ag rear14.9-24Reference
Length298 cmReference
Width158 cmReference
Height (ROPS)215 cmReference
Height (cab)220 cmReference
Ground clearance38 cmReference
Ground clearance35 cmReference
Front tread115 cmReference
Rear tread118/119/130/145/154 cmReference
Hydro1356 kgReference
Hydro cab1583 kgReference
Kubota L3710 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps55 (cab)Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Advertised attachments for the L3710 included 72-inch rear-mount finish mowers (RCR72-CA) and 60- or 72-inch rotary cutters (L360CA, L372CA), tillers (FL1521C, L60CA), post-hole diggers (BL80A), box scrapers (L7554), and 60-inch front-mount rotary brooms (L2062A).Reference
72" Mower deck
Typemid-mount Kubota RC72-36AReference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width225 cmReference
Cut height3 to 8 cmReference
Kubota BL4690 Backhoe
Backhoe typeKubota BL4690 BackhoeReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
