Tractor · 1984Unverified

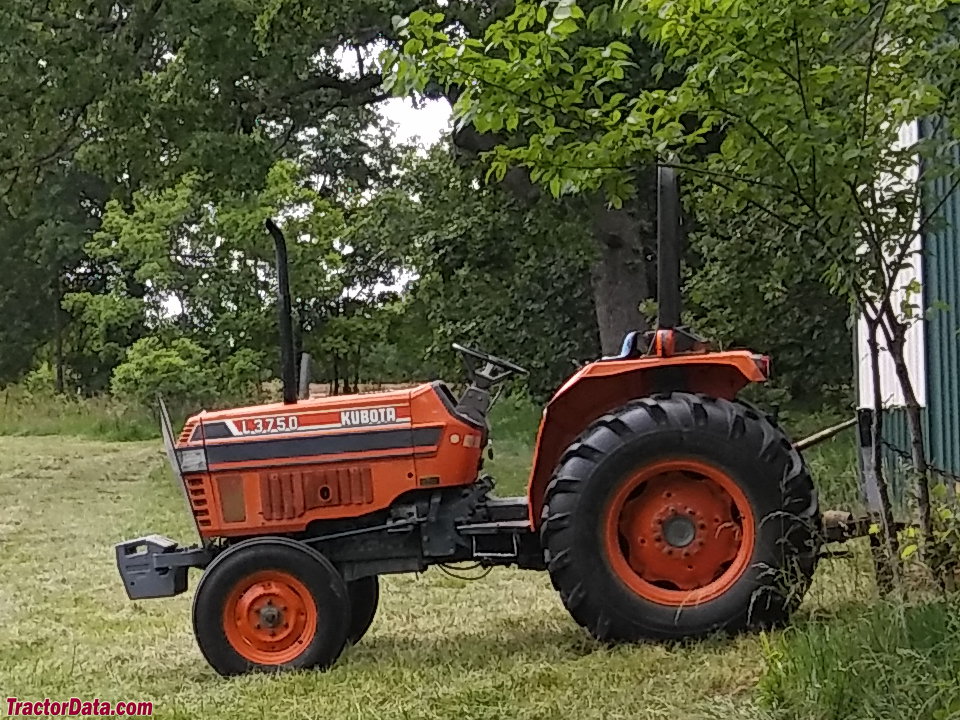

Kubota L3750
Kubota L3750 — L Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
22.5 kW
Weight
3650 to 3915 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Drive4x2 2WD (L3750F)Reference
Drive4x4 MFWD 4WDReference
SteeringpowerReference
Mechanical wet discs brakesReference
Two-post ROPS with optional sunshade.Reference
Variants
L3750F2WDReference
L3750DT4WDReference
Engine
Kubota 2.3L 5-cyl dieselReference
Engine33.6 kWReference
Drawbar (tested)22.5 kWReference
Kubota F2302-D1-LReference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke84 x 81 mmReference
Power33.6 kWReference
Air cleanerdual dry elementReference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity7.6 LReference
Power at rated engine speed27.6 kWReference
Max power22.5 kWReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Clutchdual dry platesReference
Oil capacity40.1 LReference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
PTO (tested)27.6 kWReference
Hydraulic system40.1 LReference
Typeopen centerReference
Capacity40.1 LReference
Pressure172.4 barReference
Valves0 to 2Reference
Pump flow32.9 lpmReference
Rear TypeIReference
Rear lift (at ends)1598 kgReference
Rear lift (at 24"/610mm)1202 kgReference
Rear PTOliveReference
Rear PTO Type540/750Reference
Power at rated PTO speed27.4 kWReference
Capacities
Fuel57.9 LReference
Dimensions
Wheelbase194 cmReference
Weight3650 to 3915 poundsReference
Front tire6.50-16Reference
Rear tire13.6-28Reference
Ag front6.50-16 (2WD)Reference
Ag front9.5-16 (4WD)Reference
Ag rear13.6-28Reference
Ag front6.00-16 (2WD)Reference
Ag front8.3-16 (4WD)Reference
Ag rear12.4-28Reference
Ag rear14.9-24Reference
Lawn/turf rear18.4-16.1 (2WD)Reference
Industrial front9.00-10 (2WD)Reference
Length326 cmReference
Width167 cmReference
Height (steering wheel)152 cmReference
Weight1655 kgReference
Weight1775 kgReference
Front tread121 to 182 cmReference
Front tread132 cmReference
Rear tread132 to 193 cmReference
Kubota L3750 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Kubota BF900 loaderReference
Kubota LA950A loaderReference
BackhoeReference
Kubota L4540 Backhoe
Backhoe typeKubota L4540 BackhoeReference
Transport height266 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Digging depth312 cmReference
Reach from pivot424 cmReference
Loading height254 cmReference
Bucket force1805 kgReference
Dipperstick force759 kgReference
Kubota L4540A Backhoe
Backhoe typeKubota L4540A BackhoeReference
Transport height262 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth344 cmReference
Reach from pivot425 cmReference
Loading height250 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1564 kgReference
Dipperstick force1242 kgReference
Test results
Diesel 8-speed 4WDMarch 25 - April 11, 1985Link: Nebraska Tractor Test 1555 fileReference
PTO performanceReference
Fuel use8.3 l/hourReference
Fuel use7.9 l/hourReference
Drawbar performanceReference
Fuel use8.7 l/hourReference
Max pull2204 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
