Tractor · 2003Unverified

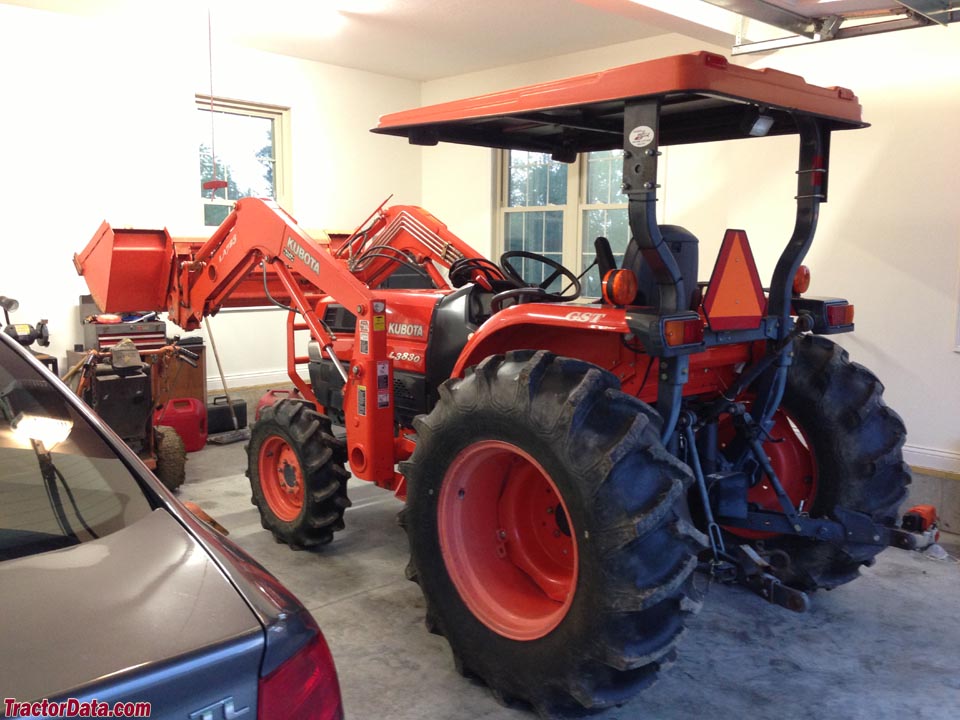

Kubota L3830

Name: Kubota L3830
Brand: Kubota

Kubota L3830 — L30 Series · 39 hp. Reference specifications; pending source verification.

The Kubota L3830 is a tractor with a rated output of 39 hp, categorising it among the more compact models in its class. Production of this model occurred from 2003 to 2007. Its powertrain consists of a 3-cylinder diesel liquid-cooled engine, transmitting power to four-wheel drive via a hydrostatic transmission. The listed weight range for the Kubota L3830 is 3150 to 3340 pounds, suitable for tasks involving approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

39 hp

Weight

3150 to 3340 pounds

Catalogue coverage

Variants represented

Richest spec table

138 rows

Recorded power

39 hp

Recorded weight

210 kg

Transmissions

hydrostatic

Production years

2003-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

L3830F2WDReference

L3830DT4WD 8 speedReference

L3830GST4WD 12 speedReference

L3830HST4WD hydroReference

Engine

Kubota 1.8L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine (gross)29.1 kWReference

Engine (net)27.9 kWReference

KubotaReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

Power (net)27.9 kWReference

Power (gross)29.1 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2700Reference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.425x4.031 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

8-speed fully synchronizedReference

12-speed power shiftReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

TransmissionFSTReference

Typefully synchronizedReference

Gears8 forward and reverseReference

Clutchdry discReference

Synchronized transmission with mechanical shuttle.Reference

TransmissionGlide ShiftReference

Typepower shiftReference

Gears12 forward and 8 reverseReference

Transmission TypeGearReference

PTO & Hydraulics

Gear PTO (claimed)23.9 kWReference

Hydro PTO (claimed)22.7 kWReference

Typeopen centerReference

Valves3Reference

Pump flow31.4 lpmReference

Total flow50.0 lpmReference

Steering flow18.5 lpmReference

Rear TypeIReference

Controlposition control with optional draft controlReference

Rear lift (at 24"/610mm)1251 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

2WD Wheelbase184 cmReference

4WD Wheelbase183 cmReference

Weight3150 to 3340 poundsReference

Front tire6.0-16Reference

2WD Rear tire14.9-24Reference

Weight210 kgReference

2WD Standard tires (ag)Front: 6.0-16. Rear: 14.9-24Reference

4WD Standard tires (ag)Front: 8.3-16. Rear: 14.9-24Reference

2WD Length309 cmReference

4WD Length298 cmReference

Width168 cmReference

Height (ROPS)231 cmReference

2WD Weight1428 kgReference

4WD hydro Weight1515 kgReference

Ground clearance37 cmReference

2WD Front tread120/131/140/150 cmReference

4WD Front tread115 cmReference

Rear tread128/143/152 cmReference

Kubota L3830 attachments

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

L3830 Serial Numbers

Location:Serial number decal on the left side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery volts12Reference

Attachment overview

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

72" Mower deck

Typemid-mount Kubota RC72-38Reference

Type3-bladeReference

Cutting width182 cmReference

Cut height3 to 11 cmReference

Kubota BL4690B Backhoe

Backhoe typeKubota BL4690B BackhoeReference

Transport height195 cmReference

Digging depth229 cmReference

Reach from pivot295 cmReference

Loading height191 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1338 kgReference

Dipperstick force789 kgReference

Kubota BH90 Backhoe

Backhoe typeKubota BH90 BackhoeReference

Transport height251 cmReference

Digging depth276 cmReference

Reach from pivot372 cmReference

Loading height242 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1755 kgReference

Dipperstick force1176 kgReference

General

Make & ModelKubotaReference

Capacities

Capacity111.5 ciReference

Power

Rated Power37.4 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

BrakesWet discReference

Steering typeHydrostatic power steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves3 valvesReference

Steering & Implements flow4.9 gpm (8.3 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch Sensing Typeposition control with optional draft controlReference

Dimensions & weight

Wheelbase184.4 cmReference

Height Over ROPS231.4 cmReference

Overall Height231.4 cmReference

Overall Length308.1 cmReference

Overall Width168.9 cmReference

Turning radius2.7 mReference

Wheels & tyres

Rear Wheel Type14.9-24Reference

Rear wheel tread range152.9 cmReference

Front Wheel Type8.3-16Reference

Front Wheel tread range150.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
