Tractor · 2022Unverified

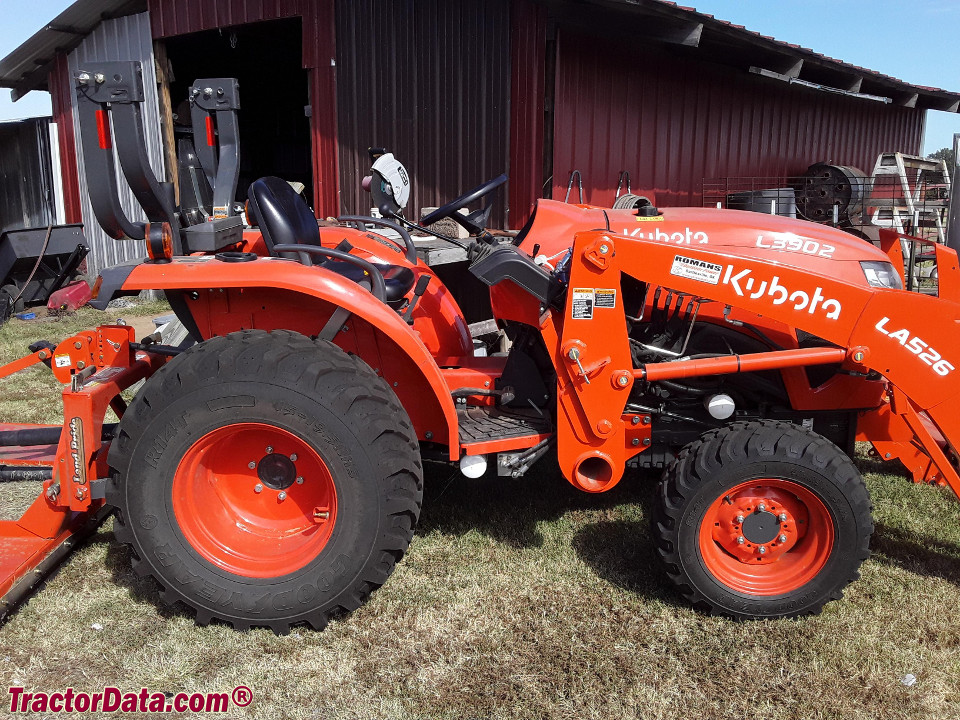

Kubota L3902

Name: Kubota L3902
Brand: Kubota

Kubota L3902 — L02 Standard Series · 38 hp. Reference specifications; pending source verification.

The Kubota L3902 is a tractor model with a rated power of 38 hp, categorising it within the lighter end of its class. Manufactured in 2022, it features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 2767 to 2778 pounds, and it is suited for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Max power

37.5 hp

Weight

2767 to 2778 pounds

Catalogue coverage

Variants represented

Richest spec table

114 rows

Recorded power

38 hp

Recorded weight

1255 kg

Transmissions

8-speed mechanical shuttle

Production years

2022-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $25,693 in 2023Reference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Kubota 1.8L 3-cyl dieselReference

Fuel tank42.0 LReference

Engine (gross)28.0 kWReference

Engine (net)27.1 kWReference

KubotaReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

Power (net)27.1 kWReference

Power (gross)28.0 kWReference

Fuel systemdirect injectionReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Rated engine speed2,700 rpmReference

Bore and stroke87 x 102.4 mmReference

Transmission

8-speed mechanical shuttleReference

hydrostaticReference

Gear Battery CCA580Reference

Gear Weight1255 kgReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeHSTReference

forward and reverse options8x8 / 3 rangeReference

forward speed range1.7 - 21.2 km/hReference

reverse speed range1.7 - 21.2 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)23.9 kWReference

Hydro PTO (claimed)22.6 kWReference

Typeopen centerReference

Pump flow23.8 lpmReference

Steering flow14.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)906 kgReference

Rear lift (at 24"/610mm)650 kgReference

Gear Rear PTOliveReference

Hydro Rear PTOindependentReference

Clutchdry disc (gear)Reference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2425 (gear)Reference

Engine RPM540@2470 (hydro)Reference

Dimensions

Wheelbase161 cmReference

Weight2767 to 2778 poundsReference

Front tire7.2-16Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7.2-16. Rear: 11.2-24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear13.6-16Reference

Industrial front27x8.50-15Reference

Industrial front29x9.50-15Reference

Industrial rear15-19.5Reference

Industrial rear43x16-20Reference

Length275 cmReference

Width139 cmReference

Height (ROPS)232 cmReference

Hydro Weight1260 kgReference

Ground clearance34 cmReference

Front tread109 cmReference

Rear tread111/119/129 cmReference

Kubota L3902 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging volts12Reference

Hydro Battery CCA600Reference

Battery volts12Reference

Battery size12V, RC: 120 min, CCA: 6,000 AReference

Alternator size12V, 45AReference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota BH77 Backhoe

Backhoe typeKubota BH77 BackhoeReference

Transport height203 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot315 cmReference

Loading height166 cmReference

Bucket Rotation180°Reference

Capacities

Capacity1,826 ccReference

Power

Max Power37.5 hpReference

PTO

PTO Power32.1 hpReference

Rear PTO PoweryesReference

Rear PTO RPM540 rpmReference

Engine Speed on Rear PTO speed2,470 rpmReference

General

Cruise controltrueReference

Rear tread spacing1,290 mmReference

Steering & brakes

BrakesMechanical, wet disc typeReference

Steering typeIntegral type power steeringReference

Hydraulics

Pump Rated Output (total)38.4 l/minReference

Hydraulics TypePosition controlReference

Maximum operating pressure165 kgf/cm2Reference

Steering & Implements flow14.5 lpm (23.9 lpm)Reference

Rear Hitch category (SAE designation)SAE Category IReference

Rear Hitch maximum lift capacity906.3 kgReference

Dimensions & weight

Overall Height2,330 mmReference

Overall Length2,755 mmReference

Overall Width1,400 mmReference

Turning radius7.9 feet (with Brakes)Reference

Overall weight1,260.1 kgReference

Operator station

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
