Tractor · 2007Unverified

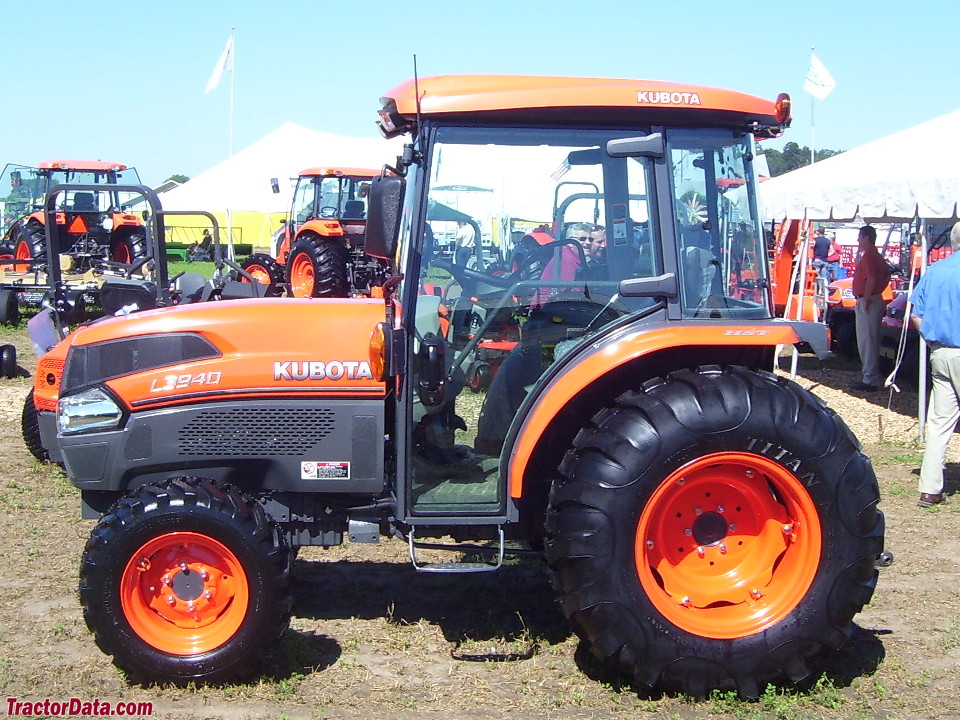

Kubota L3940
Kubota L3940 — L40 Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
3483 to 3968 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price$22,159 (2011)Reference
The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.Reference
Four-wheel driveReference
Differential lockstandardReference
Steeringhydrostatic power steeringReference
Wet disc brakesReference
Two-post ROPS. Grand CAB on HSTC.Reference
Variants
L3940DT8-speedReference
L3940GST12-speedReference
L3940HSThydroReference
L3940HSTChydro cabReference
Engine
Kubota 2.0L 4-cyl dieselReference
Engine (gross)30.2 kWReference
Engine (net)28.7 kWReference
KubotaReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke84 x 91 mmReference
Power (net)28.7 kWReference
Power (gross)30.2 kWReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity8.2 LReference
Coolant capacity7.5 LReference
Transmission
hydrostaticReference
8-speedReference
12-speedReference
TransmissionHST PlusReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity43.2 LReference
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.Reference
TransmissionFST sync shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Oil capacity42.8 LReference
TransmissionGlide Shift (GST)Reference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
Gear PTO (claimed)24.6 kWReference
Hydro PTO (claimed)23.5 kWReference
Hydraulic system43.1 LReference
Typeopen centerReference
Capacity43.1 LReference
Valves2 to 3Reference
Pump flow37.1 lpmReference
Total flow55.6 lpmReference
Steering flow18.5 lpmReference
Rear TypeIReference
Rear lift (at ends)1750 kgReference
Rear lift (at 24"/610mm)1251 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2550Reference
Mid PTOsemi-independent (optional)Reference
Mid PTO Type2000Reference
Capacities
Fuel50.0 LReference
Front axle6.5 LReference
Dimensions
Wheelbase189 cmReference
Weight3483 to 3968 poundsReference
Front tire8.3-16Reference
Rear tire14.9-24Reference
Weight210 kgReference
Standard tires (ag)Front: 8.3-16 . Rear: 14.9-24Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf front27-10.50LLx15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf rear355/80-D20Reference
Lawn/turf rear41-18LLx16.1Reference
Industrial front10-16.5Reference
Industrial rear17.8L-24Reference
Length308 cmReference
Width168 cmReference
Height247 cmReference
Weight1579 kgReference
Weight1799 kgReference
Ground clearance37 cmReference
Front tread115 cmReference
Rear tread128 to 152 cmReference
Kubota L3940 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging amps40Reference
Charging amps55 (cab)Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
The mid-mount mower and front-mount snowblower require the optional mid PTO.Reference
72" Mower deck
Typemid-mount Kubota RC72Reference
Type3-bladeReference
Cutting width182 cmReference
Cut height3 to 11 cmReference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
2-Foot flat digging depth278 cmReference
Reach from pivot382 cmReference
Loading height214 cmReference
Bucket force2062 kgReference
Dipperstick force1223 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
