Tractor · 2009Unverified

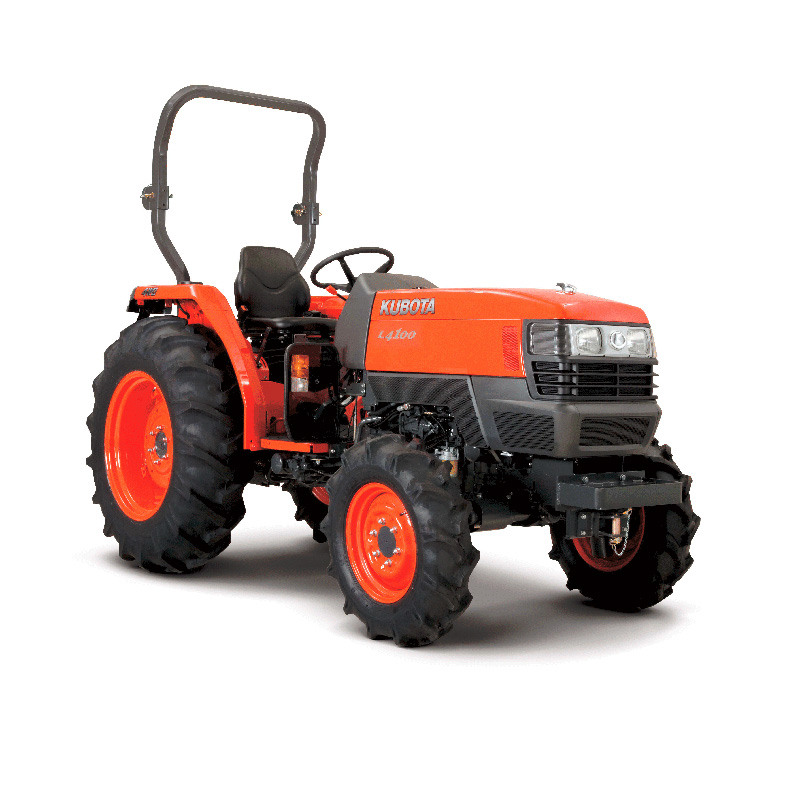

Kubota L4100
Kubota L4100 — Standard L Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
3228 to 3272 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine (gross)30.6 kWReference
Engine (net)29.3 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (net)29.3 kWReference
Power (gross)30.6 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
hydrostaticReference
Gear Weight1464 kgReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four gears (1-4) in three ranges (L/H/R).Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)25.7 kWReference
Hydro PTO (claimed)24.6 kWReference
Typeopen centerReference
Pump flow30.7 lpmReference
Steering flow15.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1309 kgReference
Rear lift (at 24"/610mm)1052 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2208Reference
Dimensions
Wheelbase184 cmReference
Weight3228 to 3272 poundsReference
Front tire8-16Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-26Reference
Lawn/turf front29x12.00-15Reference
Lawn/turf rear475/65-D20Reference
Length300 cmReference
Width158 cmReference
Height (ROPS)244 cmReference
Hydro Weight1484 kgReference
Ground clearance38 cmReference
Front tread114 cmReference
Rear tread114/123/133/134 cmReference
Kubota L4100 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery CCA582Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
