Tractor · 1984Unverified

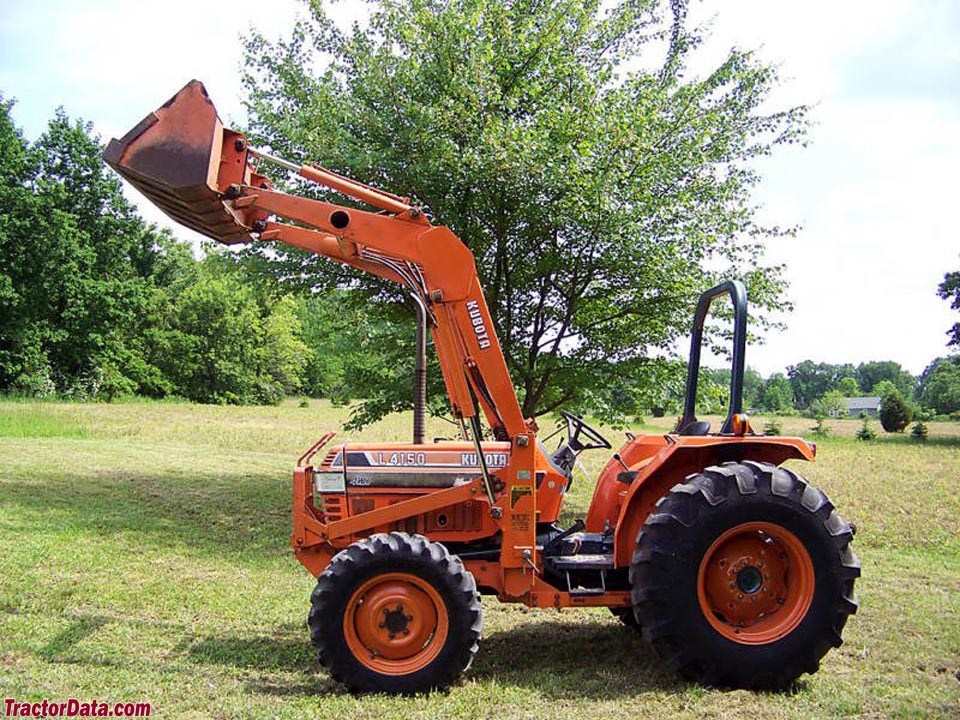

Kubota L4150
Kubota L4150 — L Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Max power
24.4 kW
Weight
3750 to 4080 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS with optional sunshade.Reference
Variants
L4150F2WDReference
L4150DT4WDReference
L4150DTNnarrowReference
Engine
Kubota 2.3L 5-cyl dieselReference
Engine37.3 kWReference
Drawbar (tested)24.4 kWReference
Kubota F2302-D1-2Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke84 x 81 mmReference
Power37.3 kWReference
Air cleanerdual dry elementsReference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity7.6 LReference
Power at rated engine speed30.3 kWReference
Max power24.4 kWReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Clutchsingle dry plateReference
Oil capacity40.1 LReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)30.3 kWReference
Hydraulic system40.1 LReference
Typeopen centerReference
Capacity40.1 LReference
Pressure172.4 barReference
Valves0 or 1Reference
Pump flow34.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1598 kgReference
Rear lift (at 24"/610mm)1202 kgReference
Rear PTOliveReference
Rear PTO Type540/750Reference
Power at rated PTO speed30.0 kWReference
Capacities
Fuel57.9 LReference
Dimensions
Wheelbase194 cmReference
Weight3750 to 4080 poundsReference
Front tire6.50-16Reference
Rear tire14.9-28Reference
Ag front6.50-16 (2WD)Reference
Ag front9.5-20 (4WD)Reference
Ag rear14.9-28Reference
Ag front8.3-20 (4WD)Reference
Ag rear16.9-24Reference
Ag rear18.4-16.1 (2WD)Reference
Ag rear13.6-28 (4WD)Reference
Lawn/turf rear18.4-16.1 (2WD)Reference
Industrial front9.00-10 (2WD)Reference
Length328 cmReference
Width172 cmReference
Height (steering wheel)157 cmReference
2WD Weight1701 kgReference
4WD Weight1850 kgReference
2WD Ground clearance34 cmReference
4WD Ground clearance36 cmReference
2WD Front tread121 to 182 cmReference
4WD Front tread142 cmReference
Rear tread132 to 193 cmReference
Kubota L4150 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Kubota BF900 loaderReference
Kubota LA950A loaderReference
BackhoeReference
Kubota L4540 Backhoe
Backhoe typeKubota L4540 BackhoeReference
Transport height266 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Digging depth312 cmReference
Reach from pivot424 cmReference
Bucket force1805 kgReference
Dipperstick force759 kgReference
Kubota L4540A Backhoe
Backhoe typeKubota L4540A BackhoeReference
Transport height262 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth344 cmReference
Reach from pivot425 cmReference
Loading height250 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1564 kgReference
Dipperstick force1242 kgReference
Test results
Diesel 8-speed 4WDMarch 22 - April 3, 1985Link: Nebraska Tractor Test 1556 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Fuel use8.7 l/hourReference
Drawbar performanceReference
Max pull2343 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
