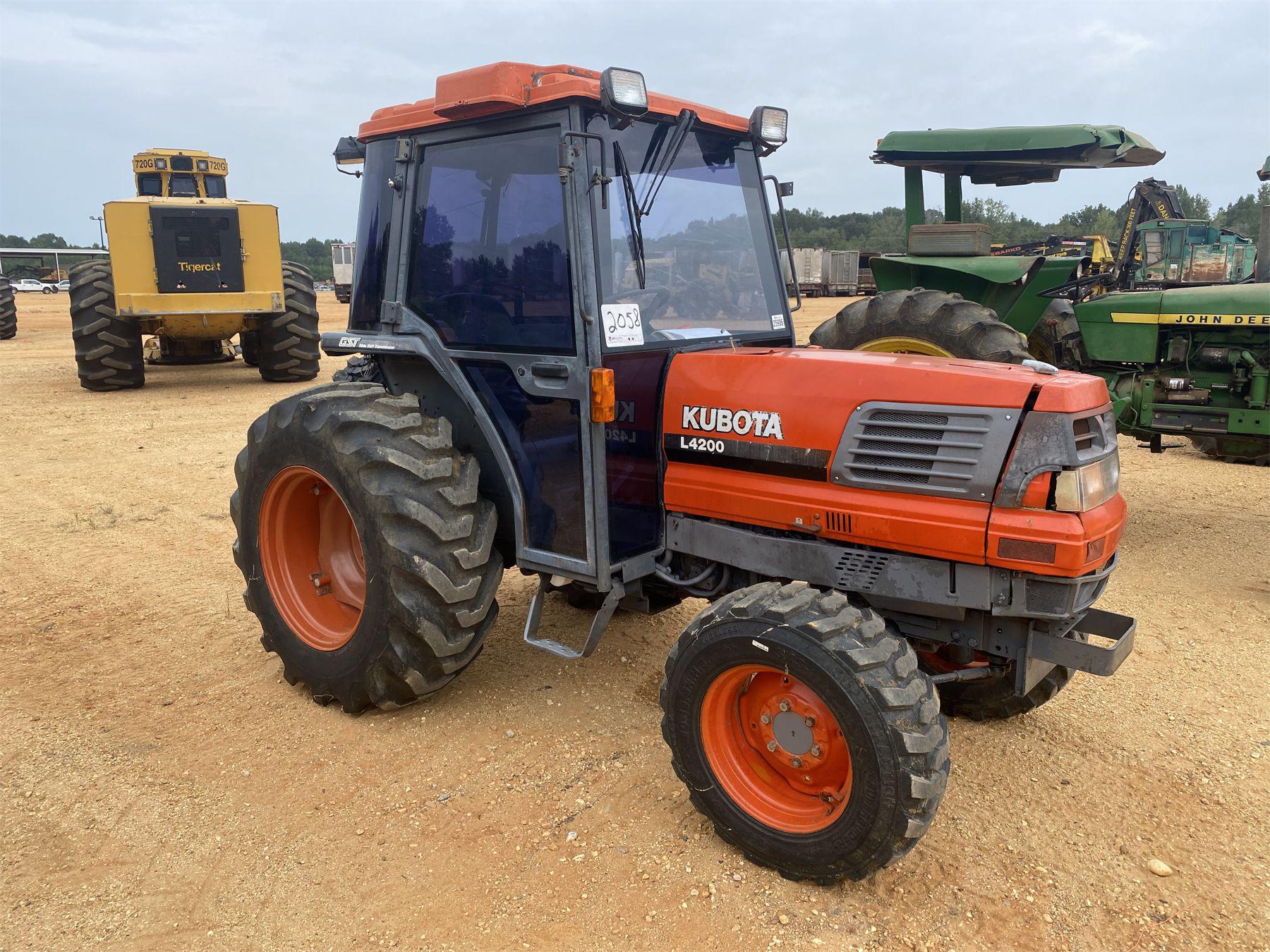

Kubota L4200
Kubota L4200 — Grand L Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
2875 to 3500 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional with heat and air-conditioning.Reference
Engine
Kubota 2.2L 4-cyl dieselReference
Engine (gross)33.8 kWReference
Engine (net)31.3 kWReference
Plows2 (14-inch)Reference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke86 x 91 mmReference
Power (net)31.3 kWReference
Power (gross)33.8 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
Torque139.5 NmReference
Starter volts12Reference
Coolant capacity7.5 LReference
Oil capacity6.0 LReference
Oil change100 hReference
Transmission
8-speed synchronized shuttleReference
8-speed power shuttleReference
TransmissionFSTReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Oil capacity39.0 LReference
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionGlide Shift (GST)Reference
Typepower shuttleReference
Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears.Reference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
Hydraulic system39.0 LReference
Typeopen centerReference
Capacity39.0 LReference
Pressure171.7 barReference
Pump flow29.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1301 kgReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2447Reference
Capacities
Fuel34.8 LReference
Dimensions
2WD Wheelbase181 cmReference
4WD Wheelbase180 cmReference
Weight2875 to 3500 poundsReference
Front tire6.00-16:14.9-24Reference
Ag front6.00-16:14.9-24 (2WD)Reference
Ag front8.3-16:14.9-24 (4WD)Reference
Length302 cmReference
Width158 cmReference
Height (steering wheel)153 cmReference
Height (ROPS)214 cmReference
Ground clearance37 cmReference
Front tread114/124/134/144 cmReference
Front tread115 cmReference
Rear tread107/117/119/130/145/154 cmReference
2WD ROPS1304 kgReference
4WD ROPS1374 kgReference
Cab1587 kgReference
Max Drawbar648 kgReference
Kubota L4200 attachments
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA447Reference
Battery volts12Reference
Attachment overview
BladeReference
Kubota LA680 loaderReference
Kubota LA681 loaderReference
BackhoeReference
Mid-mount mowers were not listed for the L4200. Rear-mount rotary mowers up to 72-inches were specified. Tillers size was 60 inches. Box blade were specified up to 66 inches, or rear blades up to 72 inches.Reference
Kubota BL4690 Backhoe
Backhoe typeKubota BL4690 BackhoeReference
Transport height194 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
