Tractor · 2007Unverified

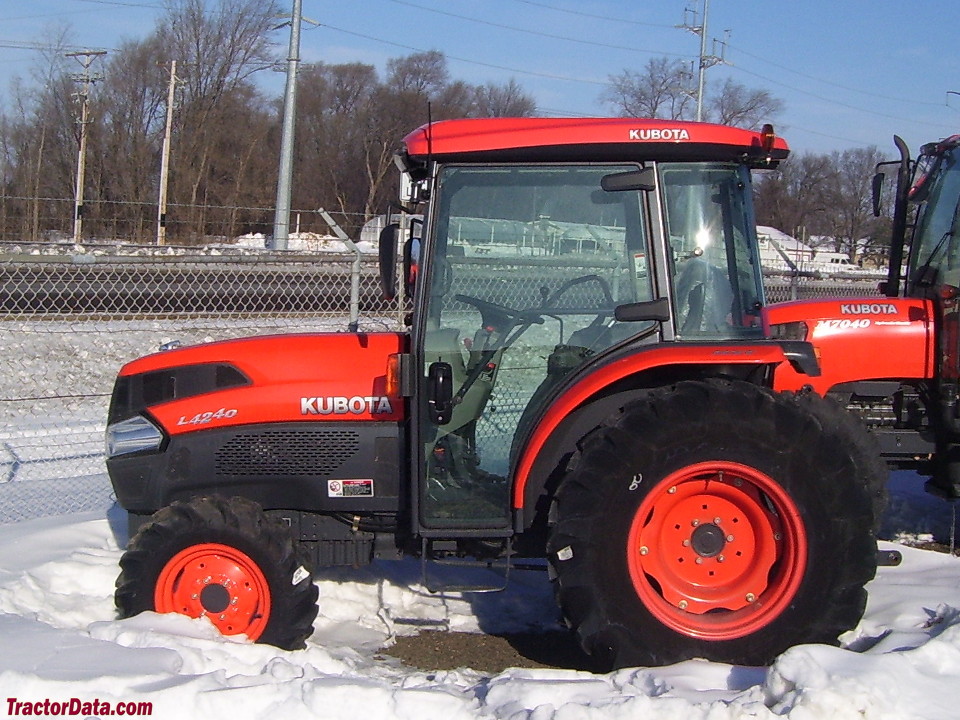

Kubota L4240

Name: Kubota L4240
Brand: Kubota

Kubota L4240 — L40 Series · 44 hp. Reference specifications; pending source verification.

The Kubota L4240 is a tractor with an approximate output of 44 hp, positioning it at the lighter end of its class. It was manufactured between 2007 and 2013. Key features of the L4240 include a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor has an operating weight of 3527 to 4001 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Max power

44 hp

Weight

3527 to 4001 pounds

Catalogue coverage

Variants represented

Richest spec table

136 rows

Recorded power

44 hp

Recorded weight

1599 kg

Transmissions

hydrostatic

Production years

2007-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price$23,949 (2011)Reference

The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.Reference

Four-wheel driveReference

Differential lockstandardReference

Steeringhydrostatic power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Grand CAB on HSTC.Reference

Variants

L4240DT8-speedReference

L4240GST12-speedReference

L4240HSThydroReference

L4240HSTChydro cabReference

Engine

Kubota 2.2L 4-cyl dieselReference

Engine (gross)32.8 kWReference

Engine (net)31.3 kWReference

KubotaReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke86 x 91 mmReference

Power (net)31.3 kWReference

Power (gross)32.8 kWReference

Rated RPM2700Reference

Starter volts12Reference

Oil capacity8.2 LReference

Coolant capacity7.5 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.4x3.6 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

8-speedReference

12-speedReference

TransmissionHST PlusReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity43.2 LReference

Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.Reference

TransmissionFST sync shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

TransmissionGlide Shift (GST)Reference

Gears12 forward and 8 reverseReference

Transmission TypeHSTReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)27.2 kWReference

Hydro PTO (claimed)26.1 kWReference

Hydraulic system43.1 LReference

Typeopen centerReference

Capacity43.1 LReference

Valves2 to 3Reference

Pump flow37.1 lpmReference

Total flow55.6 lpmReference

Steering flow18.5 lpmReference

Rear TypeIReference

Rear lift (at ends)1750 kgReference

Rear lift (at 24"/610mm)1251 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@2550Reference

Mid PTOsemi-independent (optional)Reference

Mid PTO Type2000Reference

Capacities

Fuel50.0 LReference

Front axle9.0 LReference

Fuel tank50 LReference

Crankcase oil volume8.7 qtsReference

Dimensions

Wheelbase189 cmReference

Weight3527 to 4001 poundsReference

Front tire8.3-16Reference

Rear tire14.9-24Reference

Standard tires (ag)Front: 8.3-16. Rear: 14.9-24Reference

Lawn/turf front29x12.50-15Reference

Lawn/turf front12R13.5Reference

Lawn/turf rear44x18-20Reference

Lawn/turf rear610R470Reference

Industrial front10-16.5Reference

Industrial rear17.5L-24Reference

Length308 cmReference

Width168 cmReference

Height (ROPS)239 cmReference

Weight1599 kgReference

Weight1814 kgReference

Ground clearance37 cmReference

Front tread130 cmReference

Rear tread128 to 152 cmReference

Kubota L4240 attachments

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Charging amps55 (cab)Reference

Battery CCA582Reference

Battery volts12Reference

Total cold cranking amps582 CCAReference

Attachment overview

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

The front-mounted sweeper and snowblower require the mid PTO.Reference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

2-Foot flat digging depth278 cmReference

Reach from pivot382 cmReference

Loading height214 cmReference

Bucket force2062 kgReference

Dipperstick force1223 kgReference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPSReference

Power

Max Power44 hpReference

Rated Power42 hpReference

PTO

PTO Power36.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Engine Speed on Rear PTO speed540@2,550 RPMReference

Steering & brakes

BrakesMechanical wet discReference

Steering typehydrostatic power steeringReference

Hydraulics

Pump Rated Output (total)14.7 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 to 3 ValvesReference

Steering & Implements flow4.9 gpm (9.8 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,750.9 kgReference

Dimensions & weight

Overall Height239.8 cmReference

Overall Length308.6 cmReference

Overall Width168.9 cmReference

Overall weight10,162.5 cmReference

Wheels & tyres

Rear Wheel Type14.9-24Reference

Rear wheel tread range50.6 to 60.2 inchesReference

Front Wheel Type8.3-16Reference

Front Wheel tread range130 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
