Tractor · 2026Unverified

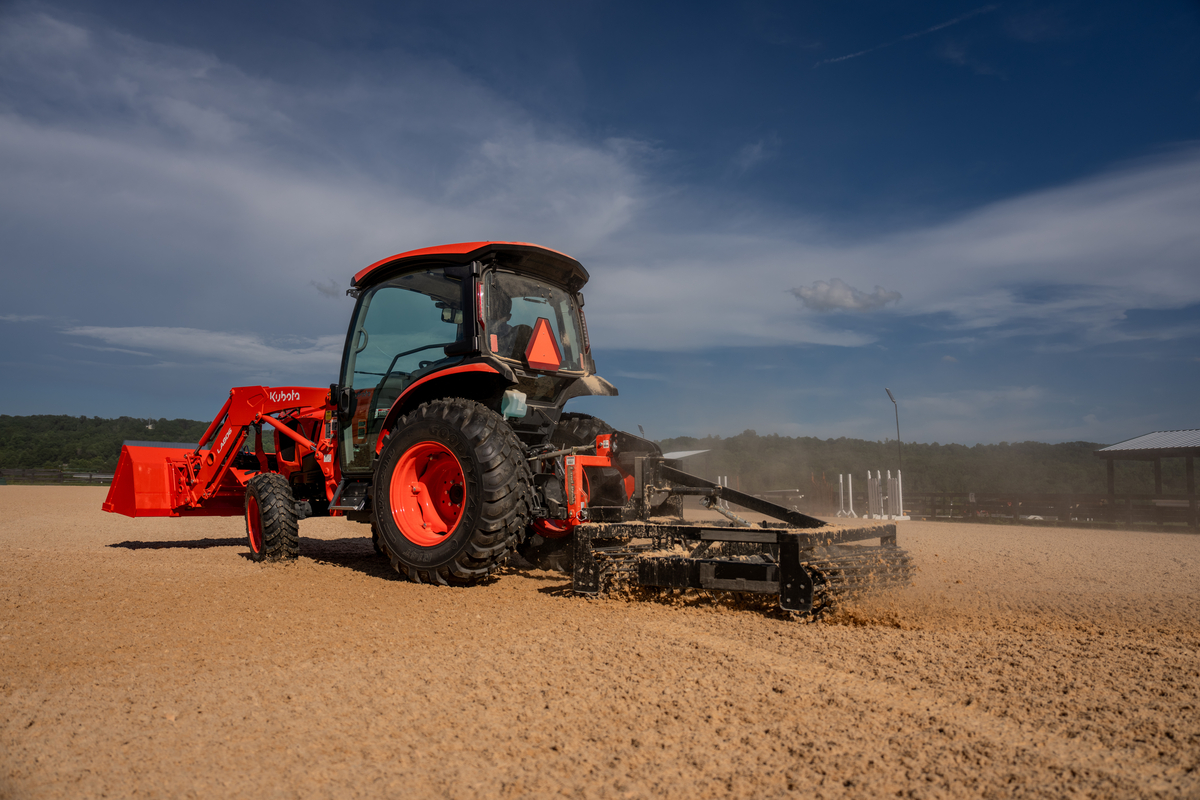

Kubota L4270

Name: Kubota L4270
Brand: Kubota

Kubota L4270 — L70 Series · 42 hp. Reference specifications; pending source verification.

The Kubota L4270 is a tractor with a rated power of 42 hp, positioned in the lighter end of its class. It features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The tractor's operating weight ranges from 3935 to 4288 pounds. It is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

42 hp

Weight

3935 to 4288 pounds

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

42 hp

Recorded weight

1784 kg

Transmissions

hydrostatic

Production years

2026-2026

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $36,770 in 2026Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Engine (gross)31.3 kWReference

Kubota V2403Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power (gross)31.3 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2600Reference

Torque133.6 NmReference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)24.2 kWReference

Rear valves3Reference

Pump flow35.6 lpmReference

Rear TypeIReference

Rear lift (at ends)1749 kgReference

Rear lift (at 24"/610mm)1250 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2491Reference

Dimensions

Wheelbase189 cmReference

Weight3935 to 4288 poundsReference

Front tire8.3-16Reference

Rear tire14.9-24Reference

Standard tires (ag)Front: 8.3-16. Rear: 14.9-24Reference

Length313 cmReference

Width168 cmReference

Height (ROPS)247 cmReference

Height (cab)233 cmReference

ROPS Weight1784 kgReference

Cab Weight1945 kgReference

Ground clearance36 cmReference

Front tread115 cmReference

Rear tread128 to 152 cmReference

Kubota L4270 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery CCA582Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota BH92A Backhoe

Backhoe typeKubota BH92A BackhoeReference

Transport height260 cmReference

2-Foot flat digging depth265 cmReference

Reach from pivot381 cmReference

Loading height224 cmReference

Bucket Rotation180°Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
