Tractor · 2001Unverified

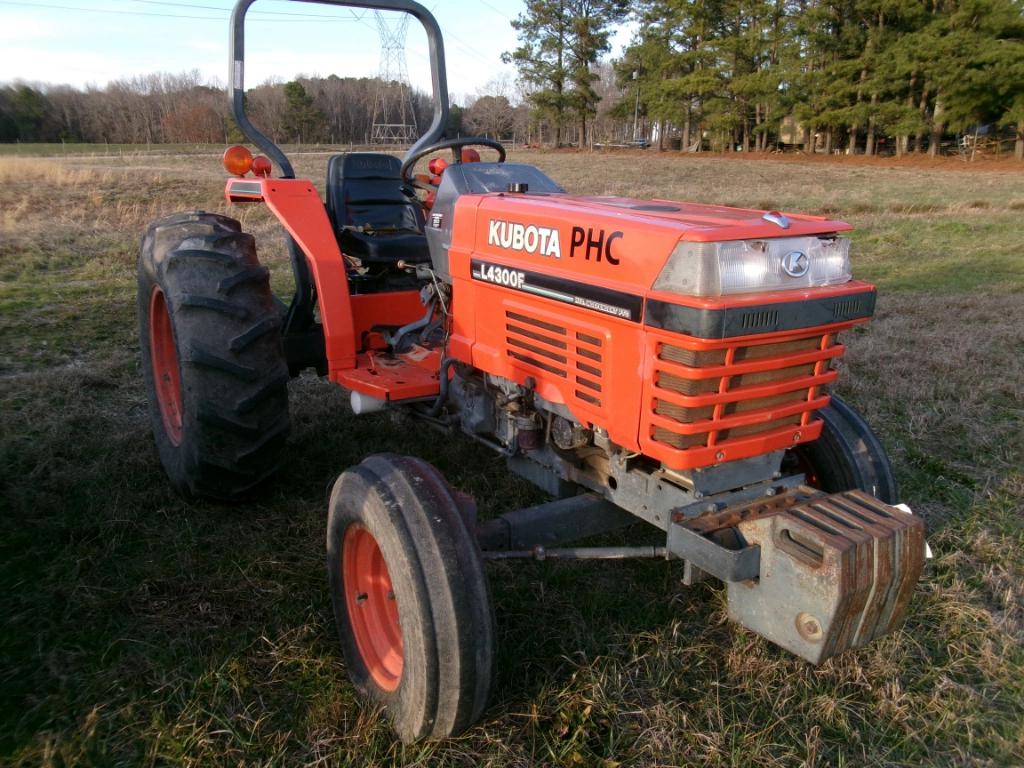

Kubota L4300
Kubota L4300 — Standard L Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
2844 to 2976 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
The Kubota L4300 was an "economy" version of the L4310. It was only available with an unsynchronized 8-speed gear transmission and no cab was offered.Reference
Two- or four-wheel driveReference
Final driveshelical gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
L4300F2WDReference
L4300DT4WDReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank31.0 LReference
Engine (gross)33.8 kWReference
Kubota V-2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)33.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elelmentReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity6.3 LReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Unsynchronized transmission. Tractor must be stopped to shift.Reference
PTO & Hydraulics
PTO (claimed)28.0 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow24.2 lpmReference
Total flow39.4 lpmReference
Steering flow14.8 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)1301 kgReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase181 cmReference
4WD Wheelbase180 cmReference
Weight2844 to 2976 poundsReference
Front tire7.5L-15Reference
2WD Rear tire14.9-24Reference
2WD Standard tires (ag)Front: 7.5L-15. Rear: 14.9-24Reference
4WD Standard tires (ag)Front: 8.0-16. Rear: 14.9-24Reference
Lawn/turf front10-16.5Reference
Lawn/turf rear17.5-24Reference
2WD Industrial front27x8.5-15Reference
4WD Industrial front29x12.5-15Reference
2WD Industrial rear41x14-20Reference
4WD Industrial rear21.5:-16.1Reference
Length279 cmReference
Width154 cmReference
Height (ROPS)215 cmReference
4WD Weight1290 kgReference
4WD Weight1349 kgReference
Clearance (front axle)38 cmReference
Kubota L4300 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery CCA550Reference
Battery volts12Reference
Battery AH55Reference
Attachment overview
Kubota LB552 loaderReference
Kubota LA682 loaderReference
BackhoeReference
Kubota BL4690A Backhoe
Backhoe typeKubota BL4690A BackhoeReference
Transport height195 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Kubota L4560 Backhoe
Backhoe typeKubota L4560 BackhoeReference
Transport height268 cmReference
Digging depth274 cmReference
Reach from pivot373 cmReference
Loading height274 cmReference
Bucket Rotation190°Reference
Swing Arc180°Reference
Bucket force2231 kgReference
Bucket force2748 kgReference
Dipperstick force1102 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
