Tractor · 1991Unverified
Kubota L4350
Kubota L4350 — Utility tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1750 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Kubota 2.2L 4-cyl dieselReference
Engine (gross)35.4 kWReference
Kubota V2203-DIReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke86 x 91 mmReference
Power (gross)35.4 kWReference
Rated RPM2600Reference
Starter volts12Reference
Starter power1.4 kWReference
Oil capacity6.5 LReference
Coolant capacity7.0 LReference
Transmission
8-speed mechanical shuttleReference
8-speed hydraulic shuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Oil capacity43.1 LReference
Four gears in two ranges with reverser lever.Reference
Typehydraulic shuttleReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Hydraulic system43.1 LReference
Typeopen centerReference
Capacity43.1 LReference
Pump flow41.6 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1496 kgReference
Rear lift (at 24"/610mm)1451 kgReference
Rear PTOliveReference
Rear PTO Type540/750 (1.375)Reference
Engine RPM540@2243Reference
Engine RPM750@2391Reference
Capacities
Fuel60.2 LReference
Front hubs2.7 LReference
Front diff.5.5 LReference
Dimensions
Wheelbase184 cmReference
Weight1750 kgReference
Front tire8.3-16Reference
Rear tire12.4-28Reference
Ag front8.3-16Reference
Ag rear12.4-28Reference
Length340 cmReference
Width165 cmReference
Height (steering wheel)153 cmReference
Max Drawbar997 kgReference
Ground clearance29 cmReference
Front tread128 cmReference
Rear tread132 to 182 cmReference
Kubota L4350 attachments
front-end loaderReference
backhoeReference
L4350 Serial Numbers
Location:Left side of transmission housing, on operator platform.Reference
Electrical
GroundnegativeReference
Battery CCA600Reference
Battery volts12Reference
Battery AH110Reference
Battery AH160Reference
Attachment overview

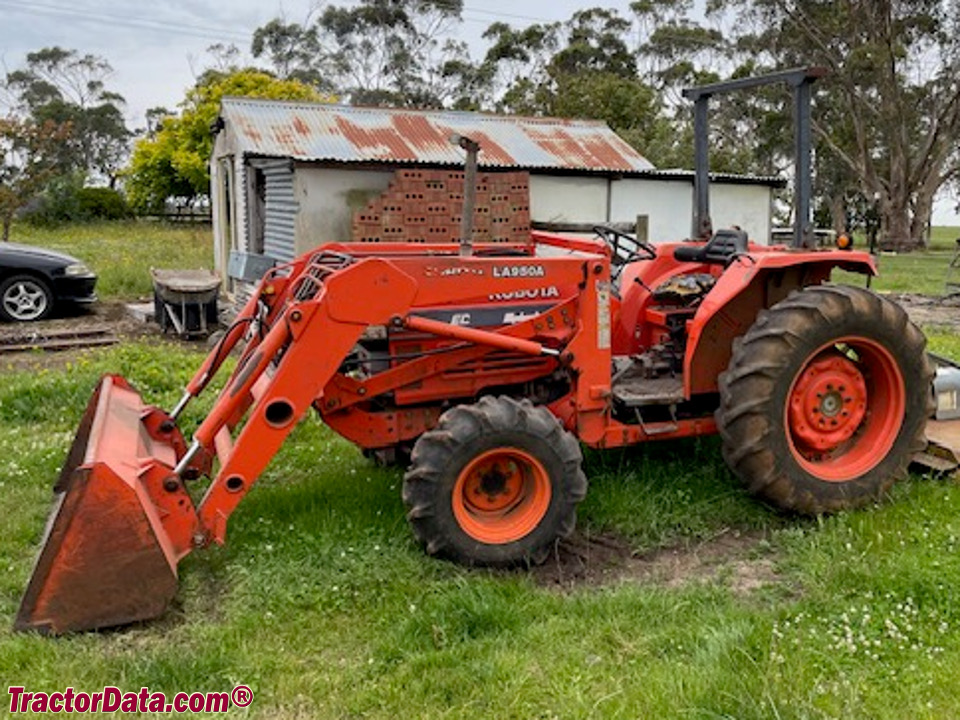

Kubota LA950 loaderReference
Kubota LA950A loaderReference
BackhoeReference
The Kubota L4350 was recommended with two 16-inch plows. Rotary cutters up to 84-inches were recommended.Reference
Kubota L4540A Backhoe
Backhoe typeKubota L4540A BackhoeReference
Transport height262 cmReference
Bucket width33 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width76 cmReference
Bucket width91 cmReference
Digging depth344 cmReference
Reach from pivot425 cmReference
Loading height250 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1564 kgReference
Dipperstick force1242 kgReference
Kubota L5412 Backhoe
Backhoe typeKubota L5412 BackhoeReference
Transport height279 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Digging depth335 cmReference
Reach from pivot419 cmReference
Loading height274 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force3007 kgReference
Dipperstick force1592 kgReference
Speeds
With 12.4-28 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
