Tractor · 2011Unverified

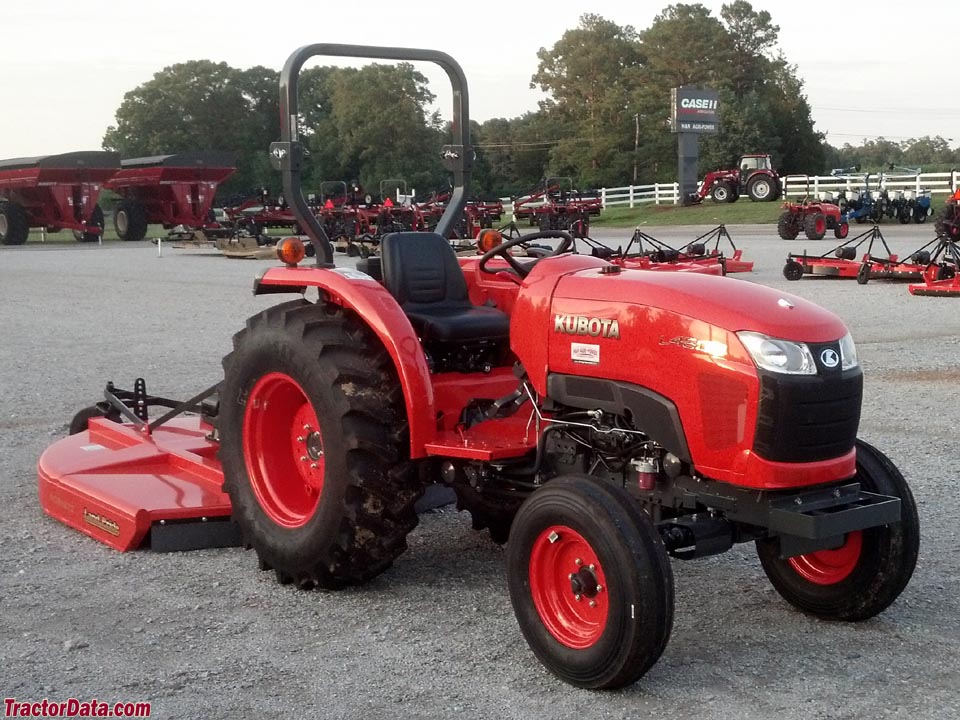

Kubota L4600

Name: Kubota L4600
Brand: Kubota

Kubota L4600 — Standard L Series · 46 hp. Reference specifications; pending source verification.

The Kubota L4600 is a compact tractor with a power output of 46 hp, placing it within a smaller class of tractors. This model was in production from 2011 to 2014. It features a 4-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. The listed weight for this model is 3109 to 3197 pounds, and it is designed for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Max power

46.3 hp

Weight

3109 to 3197 pounds

Catalogue coverage

Variants represented

Richest spec table

114 rows

Recorded power

46 hp

Transmissions

8-speed synchronized shuttle

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Differential lockrear standardReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post foldable ROPS.Reference

Variants

L4600F2WD GearReference

L4600DT4WD GearReference

L4600HST4WD HydroReference

Engine

Kubota 2.2L 4-cyl dieselReference

Fuel tank48.1 LReference

Engine (gross)34.5 kWReference

Engine (net)32.7 kWReference

Kubota E-TVCSReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke86 x 91 mmReference

EmissionsIntertim Tier 4Reference

Power (net)32.7 kWReference

Power (gross)34.5 kWReference

Fuel systemindirect injectionReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity6.5 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Emissions complianceIntertim Tier 4Reference

Bore and stroke3.4x3.6 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed synchronized shuttleReference

2WD gear1410 kgReference

4WD gear1445 kgReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Oil capacity40.1 LReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeSync ShuttleReference

Wheel Drive2 WD | 4 WDReference

PTO & Hydraulics

Hydro PTO (claimed)27.4 kWReference

Gear PTO (claimed)28.6 kWReference

Typeopen center gear pumpReference

Valves0 to 3Reference

Pump flow31.8 lpmReference

Total flow51.1 lpmReference

Steering flow19.3 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift (at ends)1301 kgReference

Rear lift (at 24"/610mm)1052 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2475Reference

Dimensions

2WD Wheelbase184 cmReference

4WD Wheelbase184 cmReference

Weight3109 to 3197 poundsReference

Front tire7.5L-15Reference

Rear tire14.9-24 (2WD)Reference

Standard tires (ag)Front: 7.5L-15. Rear: 14.9-24 (2WD)Reference

Standard tires (ag)Front: 8.3-16. Rear: 14.9-24 (4WD)Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf front27x10.5 (4WD)Reference

Lawn/turf front305R343LSW (4WD)Reference

Lawn/turf rear44x18-20Reference

Industrial front10.0-16.5 (4WD)Reference

Industrial rear17.5L-24 (4WD)Reference

2WD Length311 cmReference

4WD Length299 cmReference

Width158 cmReference

Height232 cmReference

Ground clearance38 cmReference

Front tread128/137/148/157 cmReference

Front tread115 cmReference

Rear tread118/119/130/145/154 cmReference

4WD hydro1450 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Charging volts12Reference

Battery CCA582Reference

Battery volts12Reference

Total cold cranking amps582 CCAReference

General

Make & ModelKubotaReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureTwo-post foldable ROPS.Reference

Capacities

Capacity134.1 ciReference

Crankcase oil volume8 qtsReference

Power

Max Power46.3 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,475 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typeHydrostatic PowerReference

Hydraulics

Pump Rated Output (total)13.5 gpmReference

Hydraulics Typeopen center gear pumpReference

Remote Valves0 to 3 ValvesReference

Steering & Implements flow5.1 gpm (8.4 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,301.8 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Wheelbase184.9 cmReference

Overall Height232.9 cmReference

Overall Length311.9 cmReference

Overall Width158.5 cmReference

Overall weight1,445.1 kgReference

Wheels & tyres

Rear wheel tread range46.5/47.2/51.2/57.1/60.8 inchesReference

Front Wheel tread range50.4/54.3/58.3/62.2 inches(2WD) | 45.5 inches (4WD)Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
