Tractor · 1999Unverified

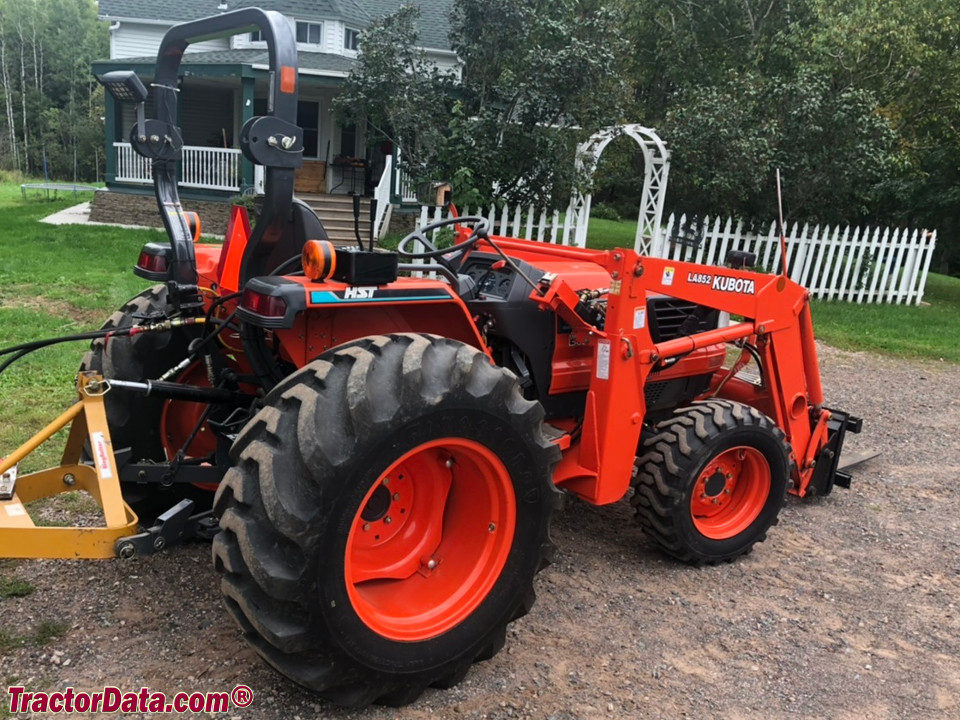

Kubota L4610
Kubota L4610 — Grand L10 Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
3180 to 3650 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
L4610GSTGlide-Shift ROPSReference
L4610HSTHydro ROPSReference
L4610HSTCHydro CabReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank34.8 LReference
Engine (gross)35.6 kWReference
Engine (net)34.3 kWReference
Kubota E-TVCS V-2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (net)34.3 kWReference
Power (gross)35.6 kWReference
Rated RPM2700Reference
Starter volts12Reference
Transmission
8-speed automatic fully synchronizedReference
hydrostaticReference
16-speed creeperReference
TransmissionGlide Shift (GST)Reference
Typeautomatic fully synchronizedReference
Gears8 forward and reverseReference
Clutchdry discReference
The Glide Shift allows clutchless automatic shifting between gears.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
TypecreeperReference
Gears16 forward and reverseReference
Optional creeper range available for the GST transmission.Reference
PTO & Hydraulics
Gear PTO (claimed)30.2 kWReference
Hydro PTO (claimed)29.1 kWReference
Typeopen centerReference
Pump flow36.3 lpmReference
Total flow54.5 lpmReference
Steering flow18.2 lpmReference
Rear Type1Reference
Controlposition control and optional draft controlReference
Rear lift (at 24"/610mm)1047 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase181 cmReference
Weight3180 to 3650 poundsReference
Front tire8.3-16Reference
Rear tire14.9-24Reference
Ag front8.3-16Reference
Ag rear14.9-24Reference
Length298 cmReference
Width158 cmReference
Height (ROPS)215 cmReference
Height (cab)220 cmReference
Ground clearance38 cmReference
Front tread129 cmReference
Rear tread118/119/130/145/154 cmReference
1442 kgReference
1451 kgReference
1655 kgReference
Kubota L4610 attachments
front-end loaderReference
backhoeReference
L4610 Serial Number Location
Serial number on the left side of the L4610 frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps55 (Cab)Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Advertised attachments for the L4710 included 72-inch rear-mount finish mowers (RCR72-CA) and rotary cutters (L372CA), tillers (FL1521C, L60CA), post-hole diggers (BL80A), and box scrapers (L7554).Reference
Kubota BL4690 Backhoe
Backhoe typeKubota BL4690 BackhoeReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
