Tractor · 2014Unverified

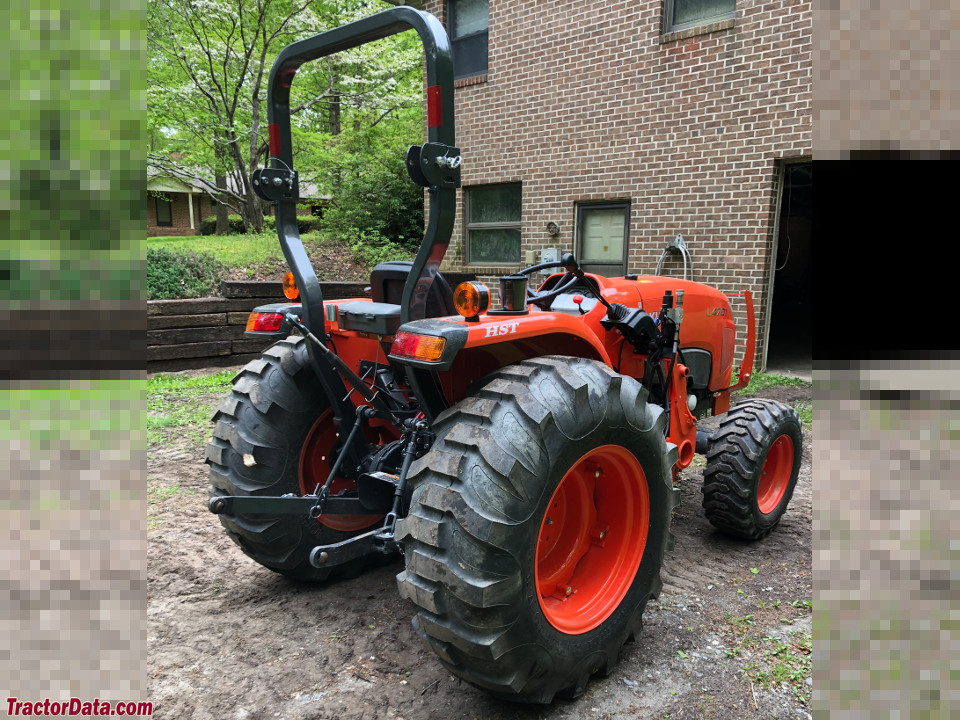

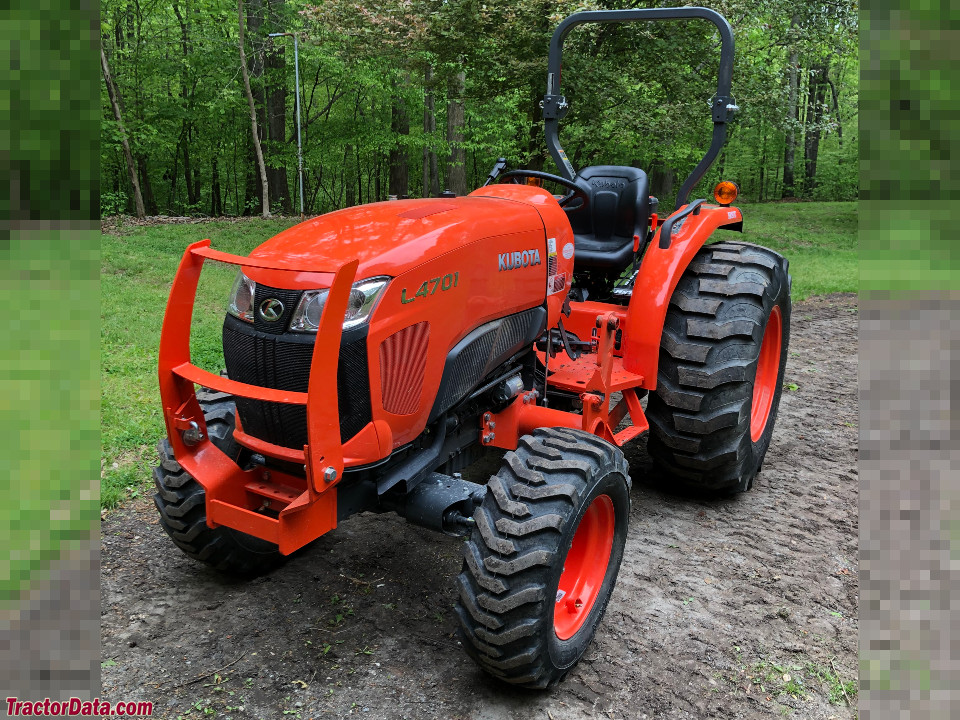

Kubota L4701

Name: Kubota L4701
Brand: Kubota

Kubota L4701 — L01 Standard Series · 47 hp. Reference specifications; pending source verification.

The Kubota L4701 is a compact tractor with a rating of 47 hp, positioned among its peers in terms of size. It was produced from 2014 to 2022. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, which powers a mechanical front-wheel drive and hydrostatic transmission system. The listed weight of the Kubota L4701 falls within the range of 3219 to 3307 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

47 hp

Max power

47.3 hp

Weight

3219 to 3307 pounds

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

47 hp

Transmissions

8-speed synchronized shuttle

Production years

2014-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WDReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank51.1 LReference

Engine (gross)35.3 kWReference

Engine (net)33.4 kWReference

KubotaReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

EmissionsTier IVReference

Power (net)33.4 kWReference

Power (gross)35.3 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

Bore and stroke3.4 × 4.0 inReference

Transmission

8-speed synchronized shuttleReference

hydrostaticReference

2WD Gear1460 kgReference

4WD Gear1495 kgReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in two ranges with mechanical shuttle.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeHSTReference

forward and reverse options8x8 / 3 rangeReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)29.3 kWReference

Hydro PTO (claimed)28.2 kWReference

Typeopen centerReference

Pressure176.5 barReference

Pump flow29.5 lpmReference

Steering flow17.8 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1301 kgReference

Rear lift (at 24"/610mm)1052 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Dimensions

2WD Wheelbase184 cmReference

4WD Wheelbase184 cmReference

Weight3219 to 3307 poundsReference

Front tire7.5L-15Reference

2WD Rear tire14.9-24Reference

2WD Standard tires (ag)Front: 7.5L-15. Rear: 14.9-24Reference

4WD Standard tires (ag)Front: 8.3-16. Rear: 14.9-24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear44x18-20Reference

Industrial front10-16.5 (4WD)Reference

Industrial rear17.5L-24 (4WD)Reference

2WD Length311 cmReference

4WD Length303 cmReference

Width158 cmReference

Height (ROPS)232 cmReference

Ground clearance38 cmReference

Front tread128/137/148/157 cmReference

Front tread115 cmReference

Rear tread118/119/130/145/154 cmReference

4WD Hydro1500 kgReference

Kubota L4701 attachments

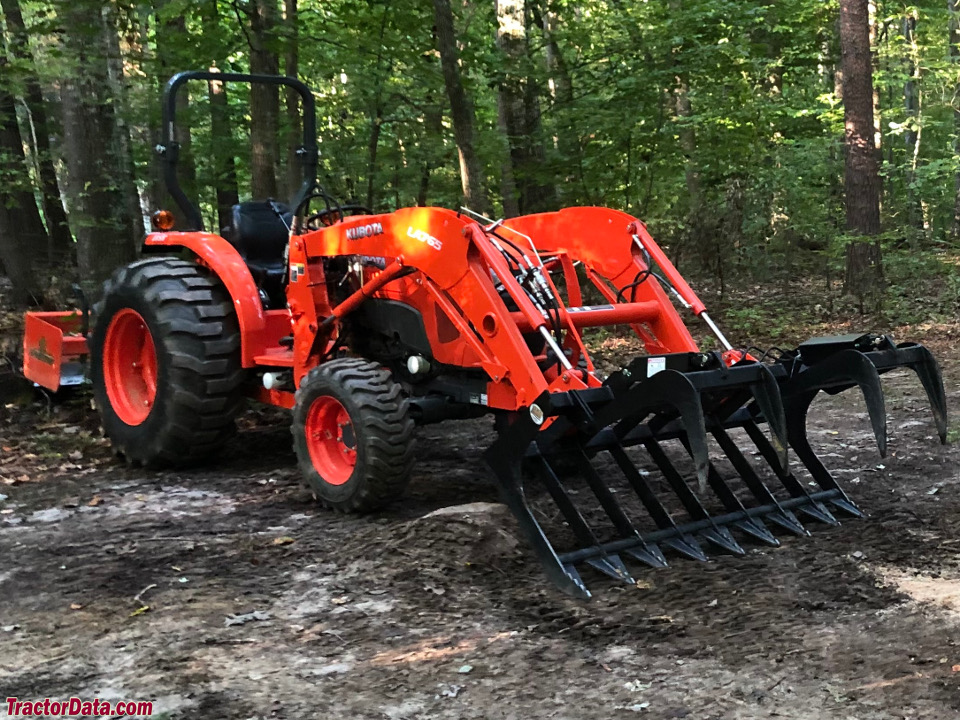

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Charging volts12Reference

Battery CCA600Reference

Battery volts12Reference

Alternator size12 VReference

Attachment overview

Front-end loaderReference

BackhoeReference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

2-Foot flat digging depth269 cmReference

Reach from pivot379 cmReference

Loading height230 cmReference

Bucket Rotation180°Reference

Capacities

Capacity148.5 cu. in.Reference

Power

Max Power47.3 hpReference

PTO

PTO Power39.3 hpReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed2,475 RPMReference

General

Cruise controltrueReference

Hydraulics

Pump Rated Output (total)47.3 l/minReference

Steering & Implements flow4.7 gpm (7.8 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,301.8 kgReference

Dimensions & weight

Wheelbase184.9 cmReference

Height Over ROPS232.9 cmReference

Overall Length311.9 cmReference

Overall Width158.5 cmReference

Turning radius8.9 feet (with Brakes)Reference

Overall weight1,500 kgReference

Operator station

Seat SuspensionAvailableReference

Steering & brakes

Steering typeHydrostatic power steeringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
