Tractor · 2007Unverified
Kubota L4740
Kubota L4740 — L40 Series · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
3751 to 4001 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price$27,259 (2011)Reference
The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.Reference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic power steeringReference
Differential wet disc brakesReference
Two-post ROPS. Grand CAB on L4740HSTCReference
Variants
L4740GSTgearReference
L4740HSThydroReference
L4740HSTChydro cabReference
Engine
Kubota 2.4L 4-cyl dieselReference
Engine (gross)36.5 kWReference
Engine35.0 kWReference
KubotaReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 102 mmReference
Power35.0 kWReference
Power (gross)36.5 kWReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity8.2 LReference
Coolant capacity8.2 LReference
Transmission
hydrostaticReference
12-speed power shiftReference
TransmissionHST PlusReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity43.2 LReference
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.Reference
TransmissionGlide Shift (GST)Reference
Typepower shiftReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)30.9 kWReference
PTO (claimed)29.8 kWReference
Hydraulic system43.1 LReference
Typeopen centerReference
Capacity43.1 LReference
Valves2 to 3Reference
Pump flow37.1 lpmReference
Total flow55.6 lpmReference
Steering flow18.5 lpmReference
Rear TypeIReference
Rear lift (at ends)1750 kgReference
Rear lift (at 24"/610mm)1250 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2550Reference
Mid PTOsemi-independent (optional)Reference
Mid PTO Type2000Reference
Capacities
Fuel54.1 LReference
Front axle9.0 LReference
Dimensions
Wheelbase189 cmReference
Weight3751 to 4001 poundsReference
Front tire8.3-16Reference
Rear tire14.9-24Reference
Standard tires (ag)Front: 8.3-16. Rear: 14.9-24Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf front12R13.5Reference
Lawn/turf rear44x18-20Reference
Lawn/turf rear24R18Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Length314 cmReference
Width168 cmReference
Height255 cmReference
Weight1701 kgReference
Weight1814 kgReference
Ground clearance37 cmReference
Front tread130 cmReference
Rear tread128 to 152 cmReference
Kubota L4740 attachments
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging amps45Reference
Charging amps60 (cab)Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference

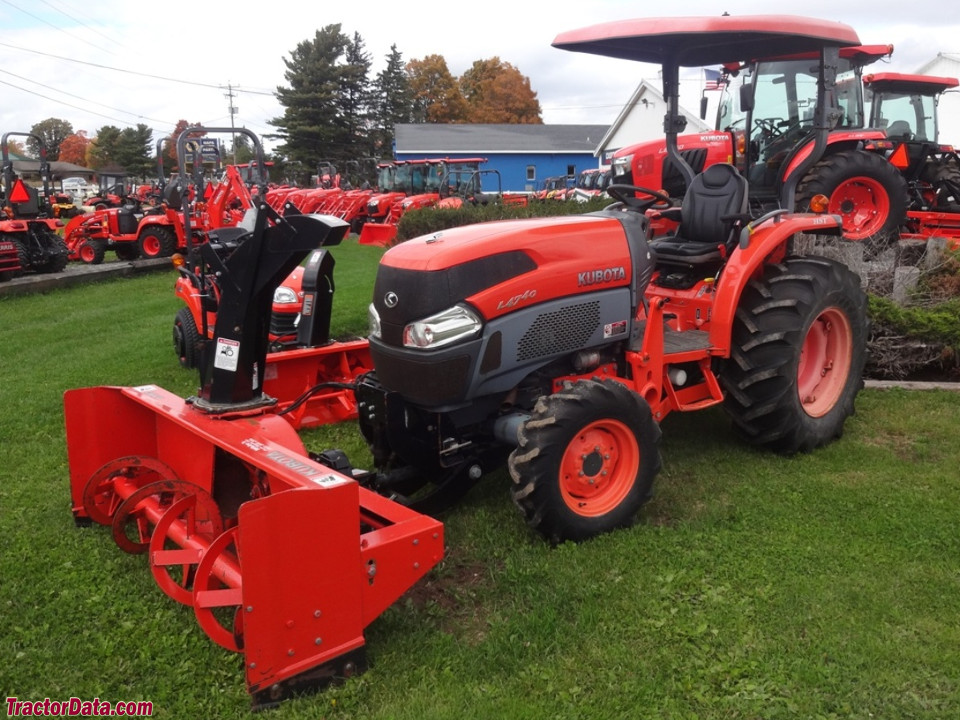

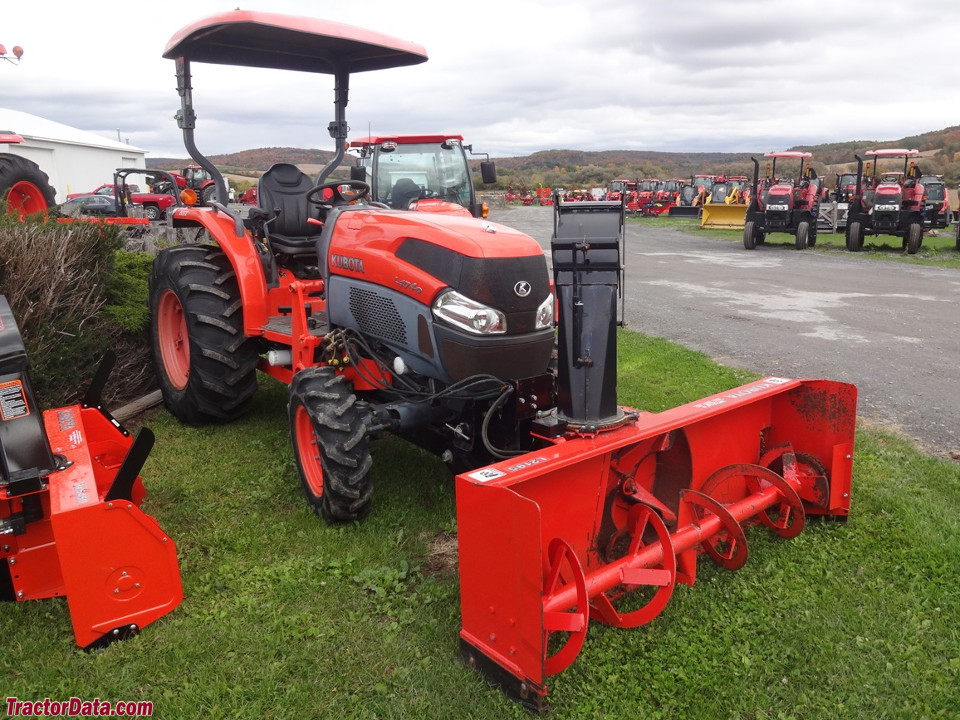

The front-mounted sweeper and snowblower require the mid PTO.Reference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
2-Foot flat digging depth278 cmReference
Reach from pivot382 cmReference
Loading height214 cmReference
Bucket force2062 kgReference
Dipperstick force1223 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
