Tractor · 2022Unverified

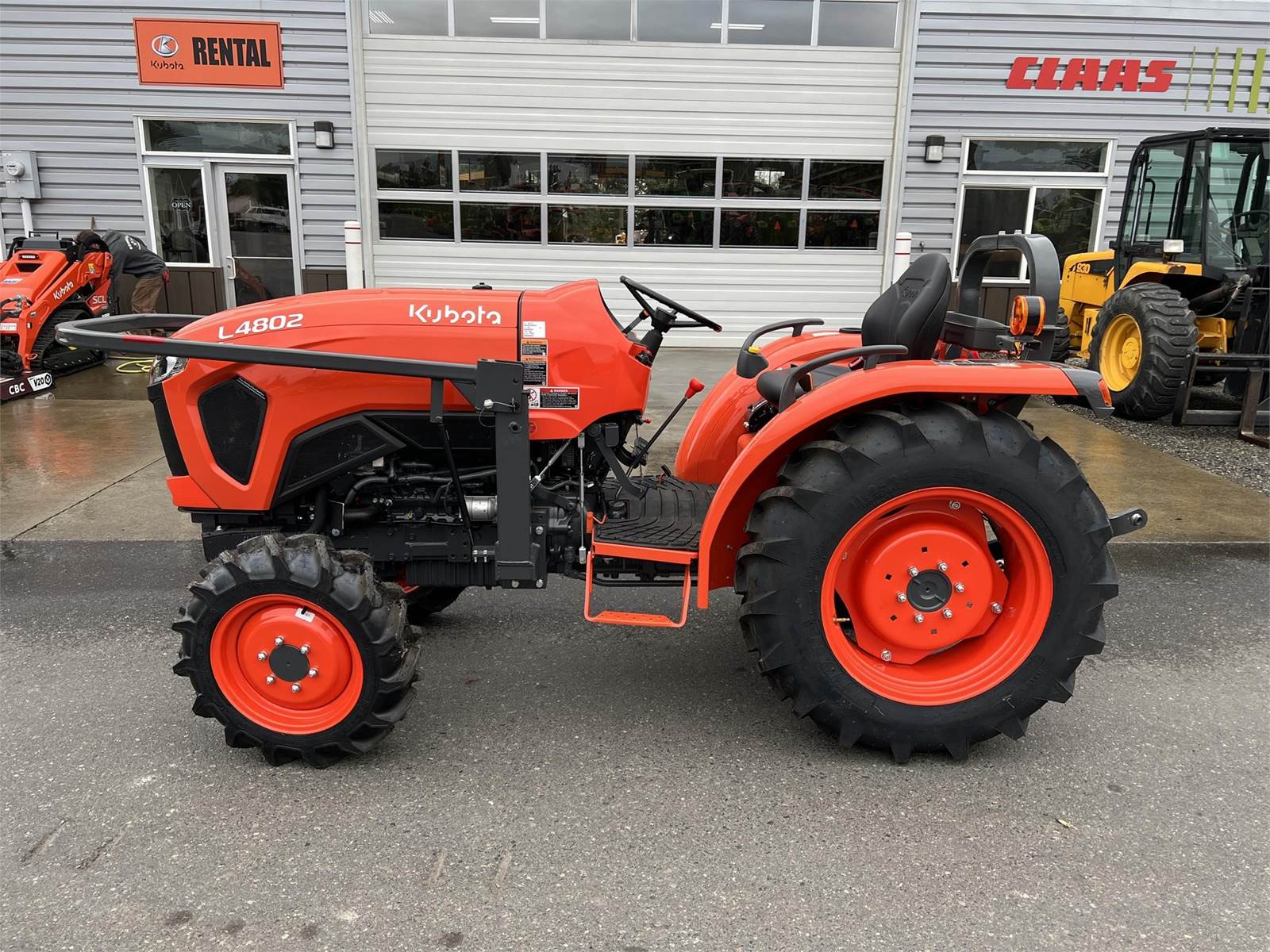

Kubota L4802N

Name: Kubota L4802N
Brand: Kubota

Kubota L4802N — L02 Standard Series · 48 hp. Reference specifications; pending source verification.

The Kubota L4802N is a tractor with a rated power output of 48 hp, categorising it as a lighter model in its class. Manufactured in 2022, it features a 4-cylinder diesel liquid-cooled engine coupled with four-wheel drive and a hydrostatic transmission. The tractor's operating weight is 1525 kg, with a suitable operating capacity of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

48 hp

Weight

1525 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

48 hp

Recorded weight

1525 kg

Transmissions

hydrostatic

Production years

2022-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price was $34,406 in 2023Reference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post mid-mount folding ROPS.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank51.1 LReference

Engine (gross)36.1 kWReference

Engine (net)34.3 kWReference

KubotaReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power (net)34.3 kWReference

Power (gross)36.1 kWReference

Fuel systemdirect injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)30.2 kWReference

Typeopen centerReference

Pump flow29.5 lpmReference

Steering flow17.8 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1301 kgReference

Rear lift (at 24"/610mm)1052 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2640Reference

Dimensions

Wheelbase184 cmReference

Weight1525 kgReference

Front tire7.2-16Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7.2-16. Rear: 11.2-24Reference

Lawn/turf front27x10.5-15Reference

Lawn/turf rear44x18-20Reference

Length298 cmReference

Width133 cmReference

Height119 cmReference

Height (ROPS)240 cmReference

Height (Folded ROPS)155 cmReference

Ground clearance29 cmReference

Front tread105 cmReference

Rear tread104 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging volts12Reference

Battery CCA600Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
