Kubota L5030
Kubota L5030 — L30 Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
3705 to 4090 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Grand Cab optionalReference
Variants
L5030GSTGlide-shiftReference
L5030HSThydrostaticReference

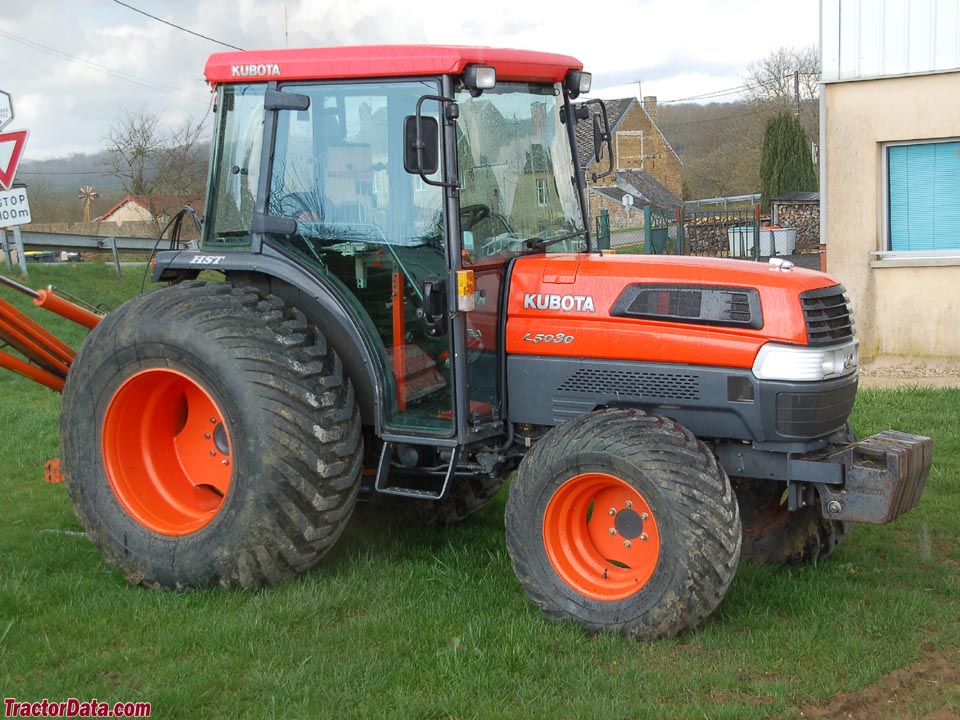

L5030HSTChydrostatic with cabReference
Engine
Kubota 2.4L 4-cyl dieselReference
Fuel tank43.1 LReference
Engine (gross)38.9 kWReference
Engine (net)37.3 kWReference
Kubota V2403Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power (net)37.3 kWReference
Power (gross)38.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Compression23.8:1Reference
Rated RPM2700Reference
Starter volts12Reference
Power at rated engine speed34.2 kWReference
Transmission
hydrostaticReference
12-speed power shiftReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
TransmissionKubota Glide Shift (GST)Reference
Typepower shiftReference
Gears12 forward and 8 reverseReference
Clutchdry discReference
PTO & Hydraulics
Gross PTO (claimed)32.8 kWReference
Hydro PTO (claimed)31.7 kWReference
PTO (tested)34.2 kWReference
Typeopen centerReference
Valves3Reference
Pump flow37.1 lpmReference
Total flow55.6 lpmReference
Steering flow18.5 lpmReference
Rear TypeII/IReference
Controlposition control with optional draft controlReference
Rear lift (at 24"/610mm)1351 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2550Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Power at rated PTO speed33.4 kWReference
Dimensions
Wheelbase191 cmReference
Weight3705 to 4090 poundsReference
Front tire9.5-16Reference
Rear tire14.9-26Reference
Standard tires (ag)Front: 9.5-16. Rear: 14.9-26Reference
Length320 cmReference
Width170 cmReference
Height (ROPS)235 cmReference
Height (cab)227 cmReference
Ground clearance40 cmReference
Front tread134 cmReference
Rear tread132/143 cmReference
ROPS Shipping1680 kgReference
Cab Shipping1855 kgReference
ROPS Operating1723 kgReference
Kubota L5030 attachments
snowblowerReference
bladeReference

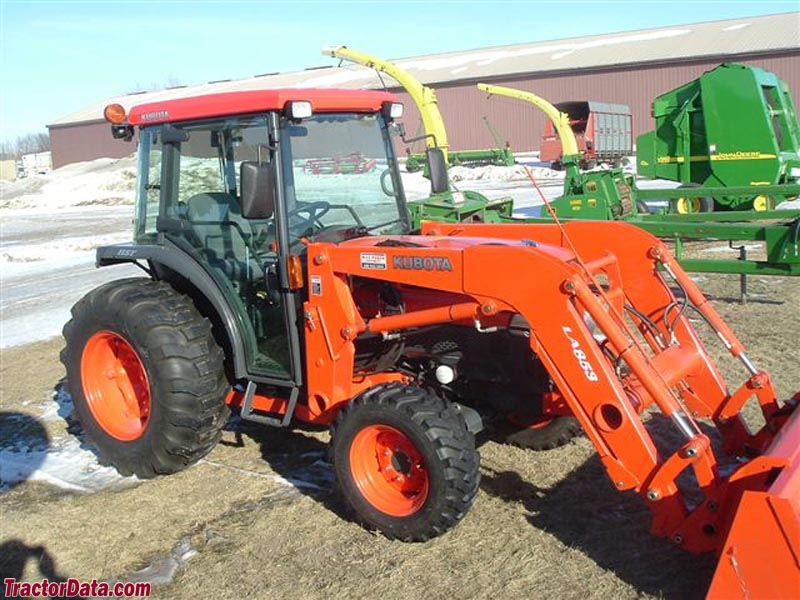

front-end loaderReference
backhoeReference
L5030 Serial Numbers
Location:Serial number decal on the left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps60Reference
Battery volts12Reference
Attachment overview
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Kubota BL4690B Backhoe
Backhoe typeKubota BL4690B BackhoeReference
Transport height195 cmReference
Digging depth229 cmReference
Reach from pivot295 cmReference
Loading height191 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1338 kgReference
Dipperstick force789 kgReference
Kubota BH90 Backhoe
Backhoe typeKubota BH90 BackhoeReference
Transport height251 cmReference
Digging depth276 cmReference
Reach from pivot372 cmReference
Loading height242 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1755 kgReference
Dipperstick force1176 kgReference
Test results
Diesel Glideshift 4WDNovember 14 - 16, 2006Link: Nebraska Tractor Test 1891 fileReference
PTO performanceReference
Fuel use12.1 l/hourReference
Fuel use11.7 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
