Tractor · 2007Unverified

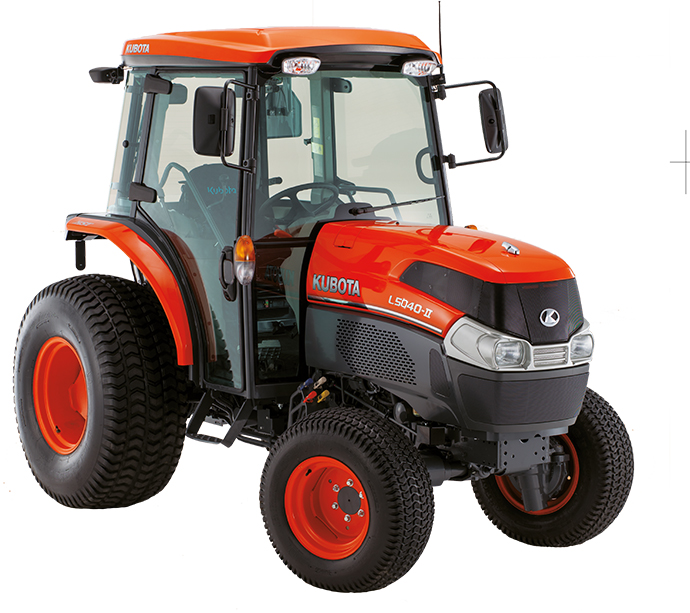

Kubota L5040

Name: Kubota L5040
Brand: Kubota

Kubota L5040 — L40 Series · 52 hp. Reference specifications; pending source verification.

The Kubota L5040 is a compact tractor model with a rating of 52 hp. It was produced from 2007 to 2013. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine and a hydrostatic transmission with four-wheel drive. Its listed weight is 1725 kg, suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Max power

52 hp

Weight

1725 kg

Catalogue coverage

Variants represented

Richest spec table

120 rows

Recorded power

52 hp

Recorded weight

1725 kg

Transmissions

12-speed

Production years

2007-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Original price$28,871 (2011)Reference

The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.Reference

Four-wheel driveReference

Differential lockstandardReference

Steeringhydrostatic power steeringReference

Mechanical wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Engine (gross)38.8 kWReference

Engine (net)37.3 kWReference

KubotaReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke86 x 102 mmReference

Power (net)37.3 kWReference

Power (gross)38.8 kWReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity9.4 LReference

Coolant capacity8.2 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.4x4.0 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

TransmissionGlide Shift (GST)Reference

Gears12 forward and 8 reverseReference

Oil capacity45.0 LReference

Transmission TypeSemi-PowershiftReference

forward and reverse optionsGlide Shift - 12F and 8RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)32.8 kWReference

Hydraulic system45.0 LReference

Typeopen centerReference

Capacity45.0 LReference

Valves2 to 3Reference

Pump flow35.6 lpmReference

Total flow53.4 lpmReference

Steering flow17.8 lpmReference

Rear TypeIReference

Rear lift (at ends)1669 kgReference

Rear lift (at 24"/610mm)1251 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@2550Reference

Mid PTOsemi-independent (optional)Reference

Mid PTO Type2000Reference

Capacities

Fuel54.1 LReference

Front axle9.0 LReference

Fuel tank54.1 LReference

Crankcase oil volume9.9 qtsReference

Dimensions

Wheelbase191 cmReference

Weight1725 kgReference

Front tire9.5-16Reference

Rear tire14.9-26Reference

Standard tires (ag)Front: 9.5-16. Rear: 14.9-26Reference

Optional tires (ag)Front: 9.5-16. Rear: 14.9-26Reference

Lawn/turf front29x12.50-15Reference

Lawn/turf front305R343Reference

Lawn/turf rear44x18-20Reference

Lawn/turf rear610R470Reference

Industrial front10-16.5Reference

Industrial rear17.5L-24Reference

Length321 cmReference

Width170 cmReference

Height (ROPS)248 cmReference

Ground clearance39 cmReference

Front tread134 cmReference

Rear tread132 to 143 cmReference

Kubota L5040 attachments

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging amps45Reference

Battery CCA582Reference

Battery volts12Reference

Total cold cranking amps582 CCAReference

Attachment overview

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

The front-mounted sweeper and snowblower require the mid PTO.Reference

Kubota BH92 Backhoe

Backhoe typeKubota BH92 BackhoeReference

2-Foot flat digging depth278 cmReference

Reach from pivot382 cmReference

Loading height214 cmReference

Bucket force2062 kgReference

Dipperstick force1223 kgReference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post foldable ROPSReference

Power

Max Power52 hpReference

Rated Power50 hpReference

PTO

PTO Power44 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Engine Speed on Rear PTO speed540@2,550 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typehydrostatic power steeringReference

Hydraulics

Pump Rated Output (total)14.1 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 to 3 ValvesReference

Steering & Implements flow4.7 gpm (9.4 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,669.2 kgReference

Dimensions & weight

Overall Height248.9 cmReference

Overall Length321.1 cmReference

Overall Width170.9 cmReference

Overall weight9,659.6 cmReference

Wheels & tyres

Rear Wheel Type14.9-26Reference

Rear wheel tread range52.2 to 56.3 inchesReference

Front Wheel Type9.5-16Reference

Front Wheel tread range134.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
