Tractor · 2007Unverified

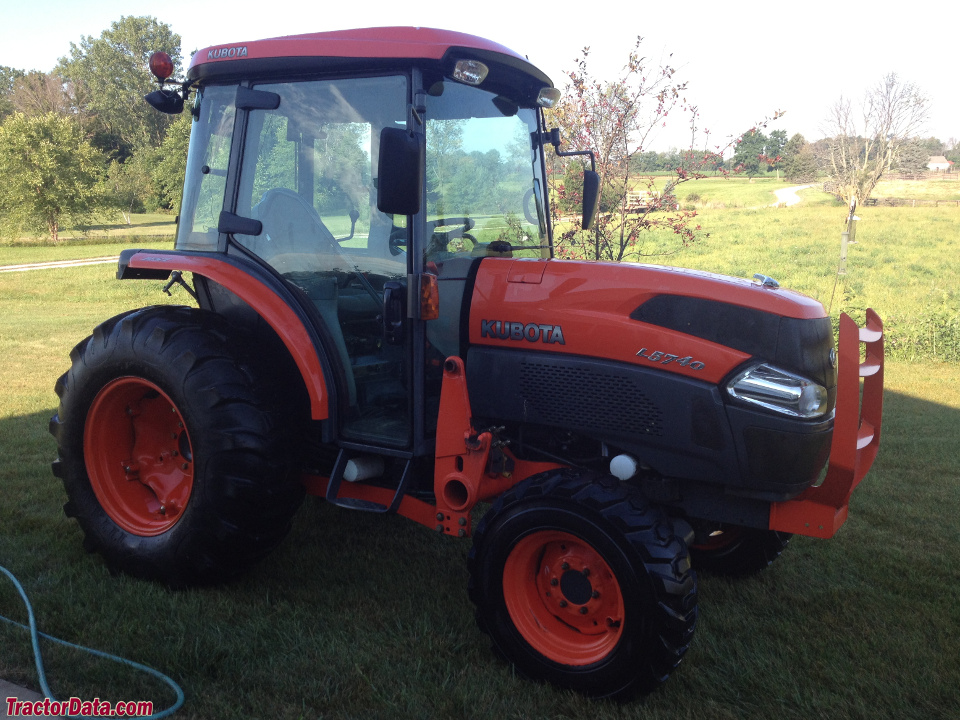

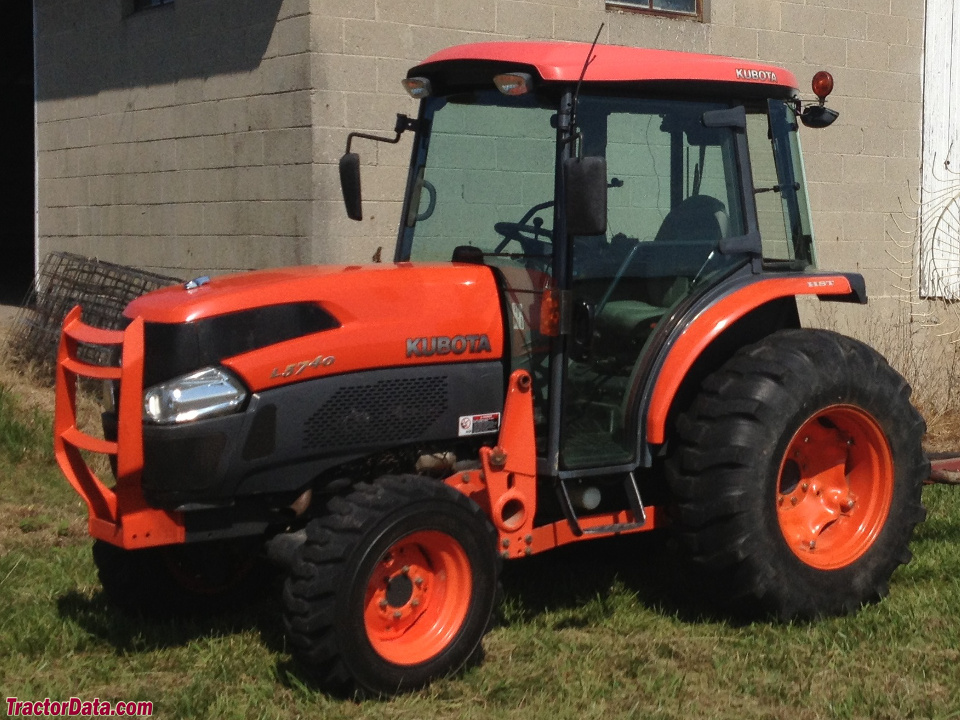

Kubota L5740
Kubota L5740 — L40 Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
3902 to 4223 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price$30,971 (2011)Reference
The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.Reference
Four-wheel driveReference
Differential lockstandardReference
Steeringhydrostatic power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Grand CAB on HSTCReference
Variants
L5740HSTROPSReference
L5740HSTCcabReference
Engine
Kubota 2.4L 4-cyl dieselReference
Engine (gross)44.0 kWReference
Engine (net)42.5 kWReference
KubotaReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke86 x 102 mmReference
Power (net)42.5 kWReference
Power (gross)44.0 kWReference
Rated RPM2700Reference
Starter volts12Reference
Oil capacity9.4 LReference
Coolant capacity8.2 LReference
Transmission
hydrostaticReference
TransmissionHST PlusReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity45.0 LReference
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.Reference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Hydraulic system45.0 LReference
Typeopen centerReference
Capacity45.0 LReference
Valves2 to 3Reference
Pump flow37.1 lpmReference
Total flow55.6 lpmReference
Steering flow18.5 lpmReference
Rear TypeI/IIReference
Rear lift (at ends)1750 kgReference
Rear lift (at 24"/610mm)1351 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2550Reference
Mid PTOsemi-independent (optional)Reference
Mid PTO Type2000Reference
Capacities
Fuel54.1 LReference
Front axle9.0 LReference
Dimensions
Wheelbase191 cmReference
Weight3902 to 4223 poundsReference
Front tire9.5-16Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference
Optional tires (ag)Front: 9.5-16. Rear: 14.9-26Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf front305R343Reference
Lawn/turf rear44x18-20Reference
Lawn/turf rear610R470Reference
Industrial front10-16.5Reference
Industrial rear17.5L-24Reference
Length321 cmReference
Width170 cmReference
Height256 cmReference
Weight1769 kgReference
Weight1915 kgReference
Ground clearance39 cmReference
Front tread134 cmReference
Rear tread132 to 143 cmReference
Kubota L5740 attachments
snowblowerReference
bladeReference

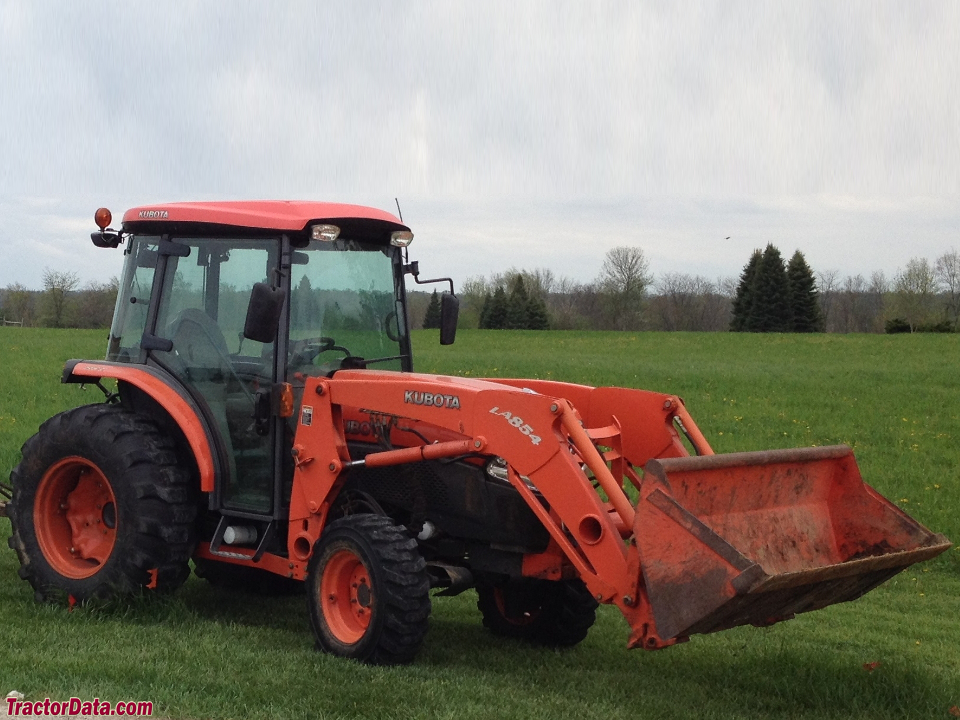

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps55 (cab)Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
The front-mounted sweeper and snowblower require the mid PTO.Reference
Kubota BH92 Backhoe
Backhoe typeKubota BH92 BackhoeReference
2-Foot flat digging depth278 cmReference
Reach from pivot382 cmReference
Loading height214 cmReference
Bucket force2062 kgReference
Dipperstick force1223 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
