Tractor · 2020Unverified
Kubota LX3310
Kubota LX3310 — LX Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
2072 to 2557 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Original price$21,845 (2020 ROPS )Reference
Original price$28,888 (2020 Cab )Reference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Kubota 1.5L 4-cyl dieselReference
ROPS Fuel tank26.9 LReference
Cab Fuel tank31.8 LReference
Engine (gross)23.0 kWReference
Kubota V1505Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)23.0 kWReference
Air cleanerdual dry elementReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity4.3 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity11.4 LReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Typeopen centerReference
Rear valves0 to 2Reference
Pump flow18.9 lpmReference
Total flow32.9 lpmReference
Steering flow14.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)970 kgReference
Rear lift (at 24"/610mm)760 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2398Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Dimensions
Wheelbase166 cmReference
Weight2072 to 2557 poundsReference
Front tire7-12Reference
Rear tire12.4-16Reference
Weight501 kgReference
Standard tires (ag)Front: 7-12. Rear: 12.4-16Reference
Industrial front23x8.50-14Reference
Industrial front25x8.50-14Reference
Industrial front23x8.50-12 (R14)Reference
Industrial rear12.4-16Reference
Industrial rear15-19.5Reference
Industrial rear14-17.5 (R-14)Reference
ROPS Length258 cmReference
Cab Length263 cmReference
Width136 cmReference
Height (ROPS)224 cmReference
Height (cab)214 cmReference
ROPS Weight939 kgReference
Cab Weight1159 kgReference
Ground clearance37 cmReference
Kubota LX3310 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference

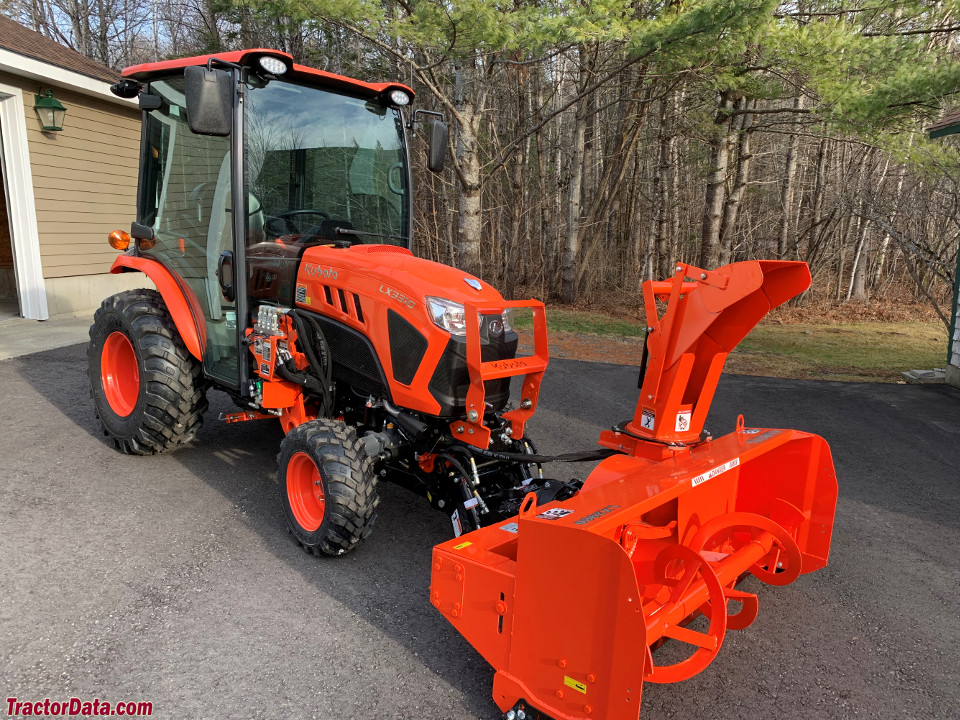

snowblowerReference
bladeReference

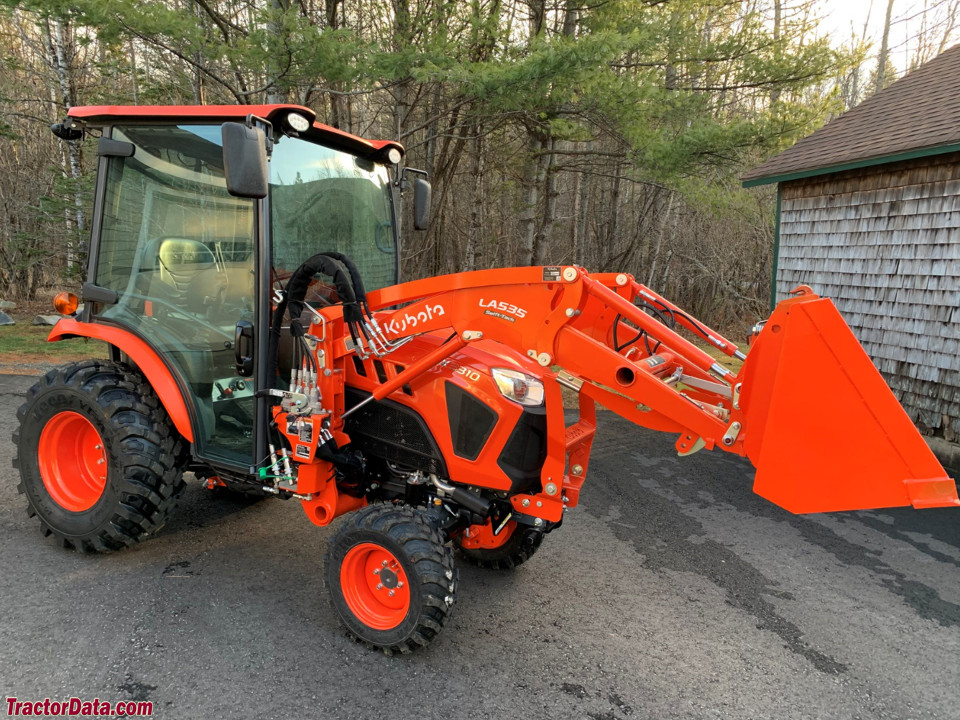

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging amps60Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Kubota BH77 Backhoe
Backhoe typeKubota BH77 BackhoeReference
Transport height204 cmReference
2-Foot flat digging depth233 cmReference
Reach from pivot316 cmReference
Loading height169 cmReference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
