Tractor · 1988Unverified

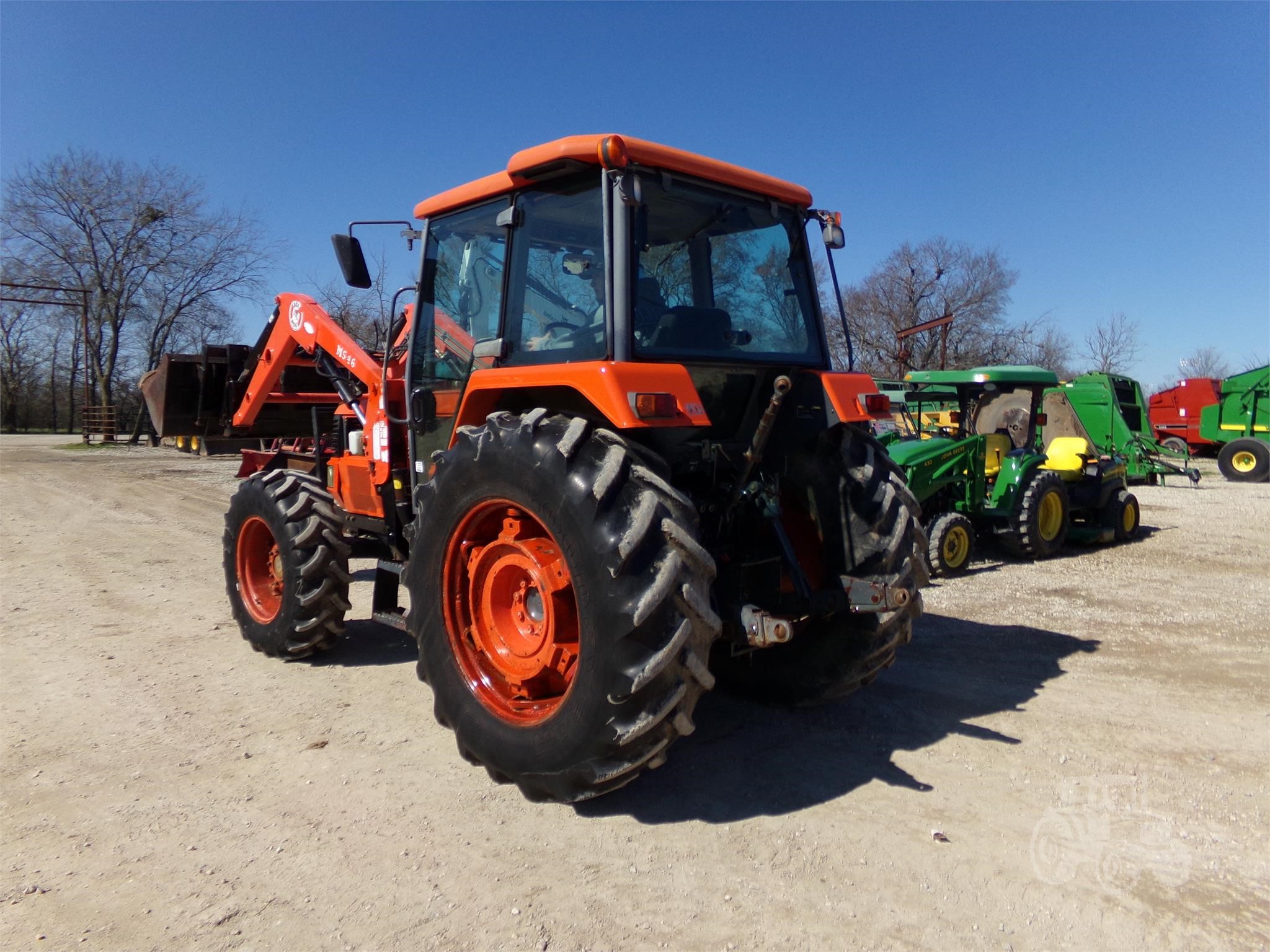

Kubota M1-100
Kubota M1-100 — M1 Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3989 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Four-post ROPS. Cab optional.Reference
Engine
Kubota 5.4L 5-cyl dieselReference
Fuel tank149.9 LReference
Engine74.6 kWReference
Kubota F5402Reference
dieselReference
5-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke105 x 125 mmReference
Power74.6 kWReference
Rated RPM2400Reference
Torque367.7 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
36-speed creeperReference
Gears24 forward and reverseReference
Six gears in two ranges with two-speed high-low shift.Reference
TypecreeperReference
Gears36 forward and reverseReference
PTO & Hydraulics
PTO (claimed)67.0 kWReference
Rear TypeJIS2Reference
Rear lift3700 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2016Reference
Engine RPM1000@2381Reference
Dimensions
Wheelbase256 cmReference
Weight3989 kgReference
Front tire13.6-24Reference
Rear tire16.9-38Reference
Standard tires (ag)Front: 13.6-24. Rear: 16.9-38Reference
Length421 cmReference
Width204 cmReference
Height268 cmReference
Clearance (rear axle)50 cmReference
Front tread164 to 173 cmReference
Rear tread154 to 215 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
