Tractor · 1988Unverified

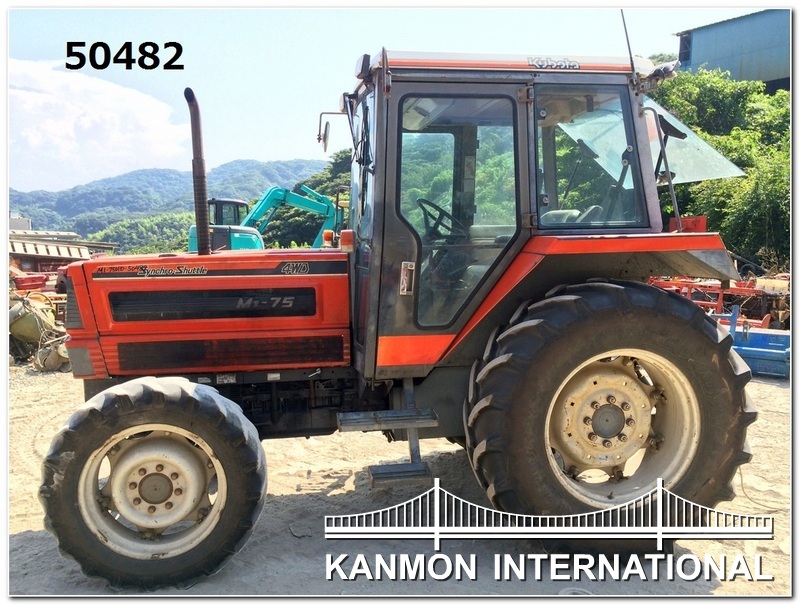

Kubota M1-75
Kubota M1-75 — M1 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
2950 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Four-post ROPS. Cab optional.Reference
Engine
Kubota 4.3L 4-cyl dieselReference
Fuel tank104.8 LReference
Engine55.9 kWReference
Kubota V4302Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power55.9 kWReference
Rated RPM2400Reference
Torque280.6 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
18-speed creeperReference
Gears12 forward and reverseReference
Six gears in two ranges with shuttle.Reference
TypecreeperReference
Gears18 forward and reverseReference
PTO & Hydraulics
PTO (claimed)52.4 kWReference
Rear TypeJIS1Reference
Rear TypeJIS2Reference
Rear lift2800 kgReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2389Reference
Dimensions
Wheelbase224 cmReference
Weight2950 kgReference
Front tire9.5-24Reference
Rear tire12.4-36Reference
Standard tires (ag)Front: 9.5-24. Rear: 12.4-36Reference
Length384 cmReference
Width176 cmReference
Height251 cmReference
Clearance (rear axle)41 cmReference
Front tread120 to 139 cmReference
Rear tread121 to 192 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
