Tractor · 2002Unverified

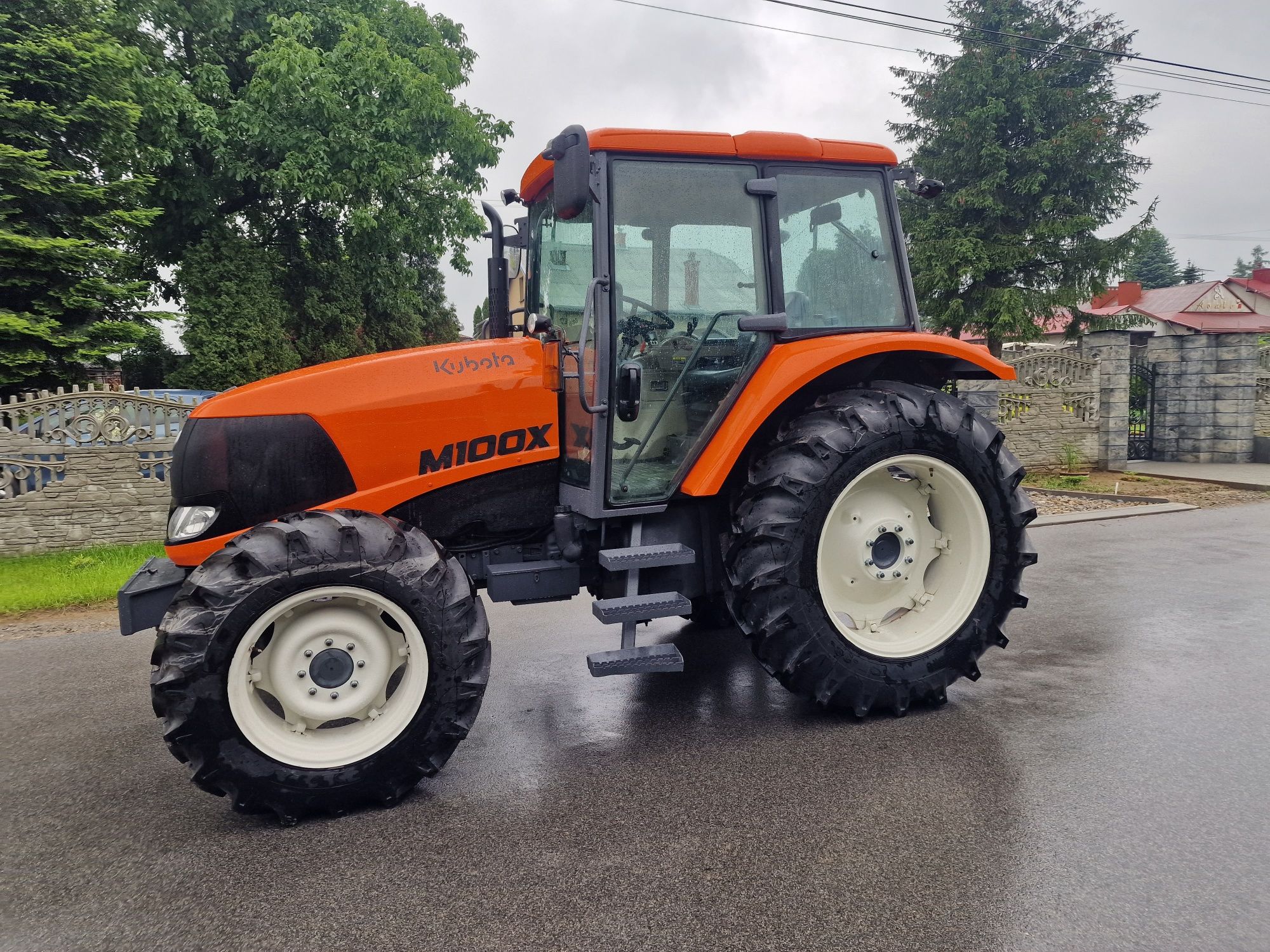

Kubota M100
Kubota M100 — Grandom Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Weight
3640 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 4.7L 4-cyl dieselReference
Fuel tank199.8 LReference
Engine73.6 kWReference
Kubota V4702Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.7 LReference
Bore/Stroke109 x 125 mmReference
Power73.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
Torque375.6 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchromeshReference
16-speed power shiftReference
24-speed creeperReference
TypesynchromeshReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges with additional high/low shift.Reference
Typepower shiftReference
Clutchhydraulic wet discReference
Eight power-shift gears in two ranges with shuttle.Reference
TypecreeperReference
Gears24 forward and reverseReference
1C:2C:3C:4C:5C:6C:7C:8C;:0.13:0.17:0.22:0.27:0.34:0.43:0.53:0.68Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear lift2804 kgReference
Rear lift3895 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2211Reference
Dimensions
Wheelbase244 cmReference
Weight3640 kgReference
Front tire11.2-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-34Reference
Length405 cmReference
Width198 cmReference
Height264 cmReference
Ground clearance45 cmReference
Front tread133 to 151 cmReference
Rear tread139 to 200 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
