Tractor · 2014Unverified

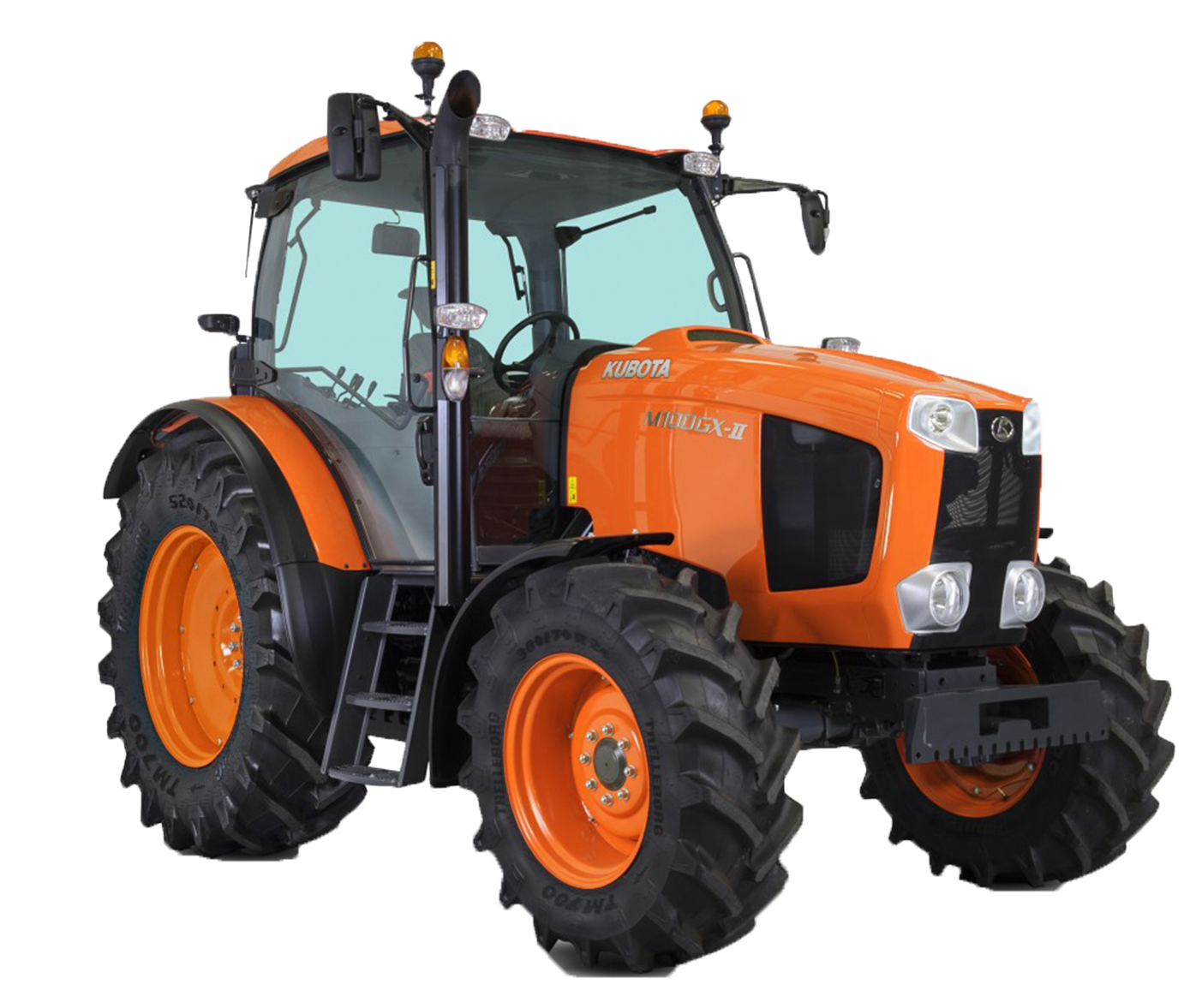

Kubota M100G
Kubota M100G — Globe Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Weight
3665 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank190.0 LReference
Engine73.6 kWReference
Kubota V3800-CR-TIE4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power73.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
32-speed creeperReference
Typepower shiftReference
Gears24 forward and reverseReference
Clutchhydraulic wet discReference
Eight power-shift gears in three ranges with shuttle.Reference
TypecreeperReference
Gears32 forward and reverseReference
Optional creeper adds an additional 8-speed range to the standard transmission.Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2405Reference
Engine RPM1000@2529Reference
Dimensions
Wheelbase243 cmReference
Weight3665 kgReference
Front tire11.2-24Reference
Rear tire13.6-38Reference
Standard tires (ag)Front: 11.2-24. Rear: 13.6-38Reference
Length426 cmReference
Width210 cmReference
Height278 cmReference
Ground clearance42 cmReference
Front tread133 to 151 cmReference
Rear tread139 to 200 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
