Tractor · 1986Unverified

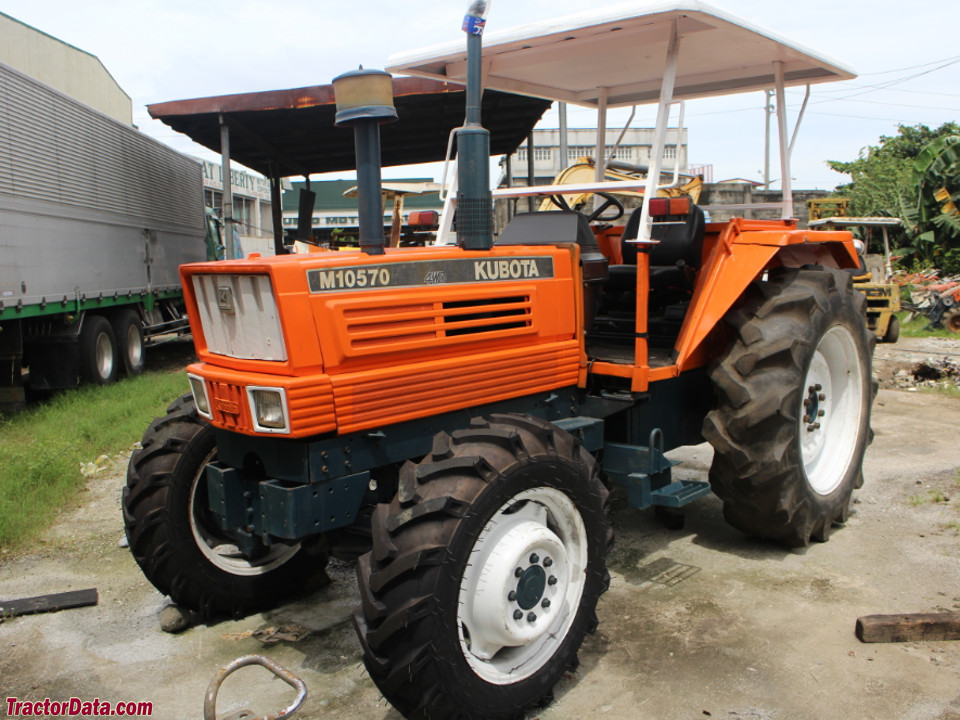

Kubota M10570

Name: Kubota M10570
Brand: Kubota

Kubota M10570 — Utility tractor · 104 hp. Reference specifications; pending source verification.

The Kubota M10570 is a mid-range tractor rated at approximately 104 horsepower, produced in 1986. It features a 5-cylinder diesel liquid-cooled engine paired with a powershift transmission. The operating weight of the Kubota M10570 is listed as 3709 kilograms. It is suitable for operations covering areas of 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

104 hp

Weight

3709 kg

Catalogue coverage

Variants represented

Richest spec table

40 rows

Recorded power

104 hp

Recorded weight

3709 kg

Transmissions

32-speed

Production years

1986-1986

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-post ROPS.Reference

Engine

Kubota 5.4L 5-cyl dieselReference

Fuel tank120.0 LReference

Engine77.3 kWReference

Kubota F5400Reference

dieselReference

5-cylinderReference

liquid-cooledReference

Displacement5.4 LReference

Bore/Stroke109 x 116 mmReference

Power77.3 kWReference

Rated RPM2400Reference

Torque385.5 NmReference

Torque RPM1200Reference

Starter volts12Reference

Transmission

32-speedReference

Gears32 forward and 8 reverseReference

Four gears, plus reverse, in two ranges with additional creeper range and two-speed power shift.Reference

PTO & Hydraulics

Pump flow41.6 lpmReference

Rear TypeII/IReference

Rear lift3499 kgReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2035Reference

Engine RPM1000@2388Reference

Dimensions

Wheelbase252 cmReference

Weight3709 kgReference

Front tire12.4-24Reference

Rear tire18.4-34Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference

Length416 cmReference

Width205 cmReference

Height (ROPS)264 cmReference

Height (exhaust)256 cmReference

Ground clearance40 cmReference

Front tread164/173 cmReference

Rear tread148 to 215 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
