Tractor · 2018Unverified

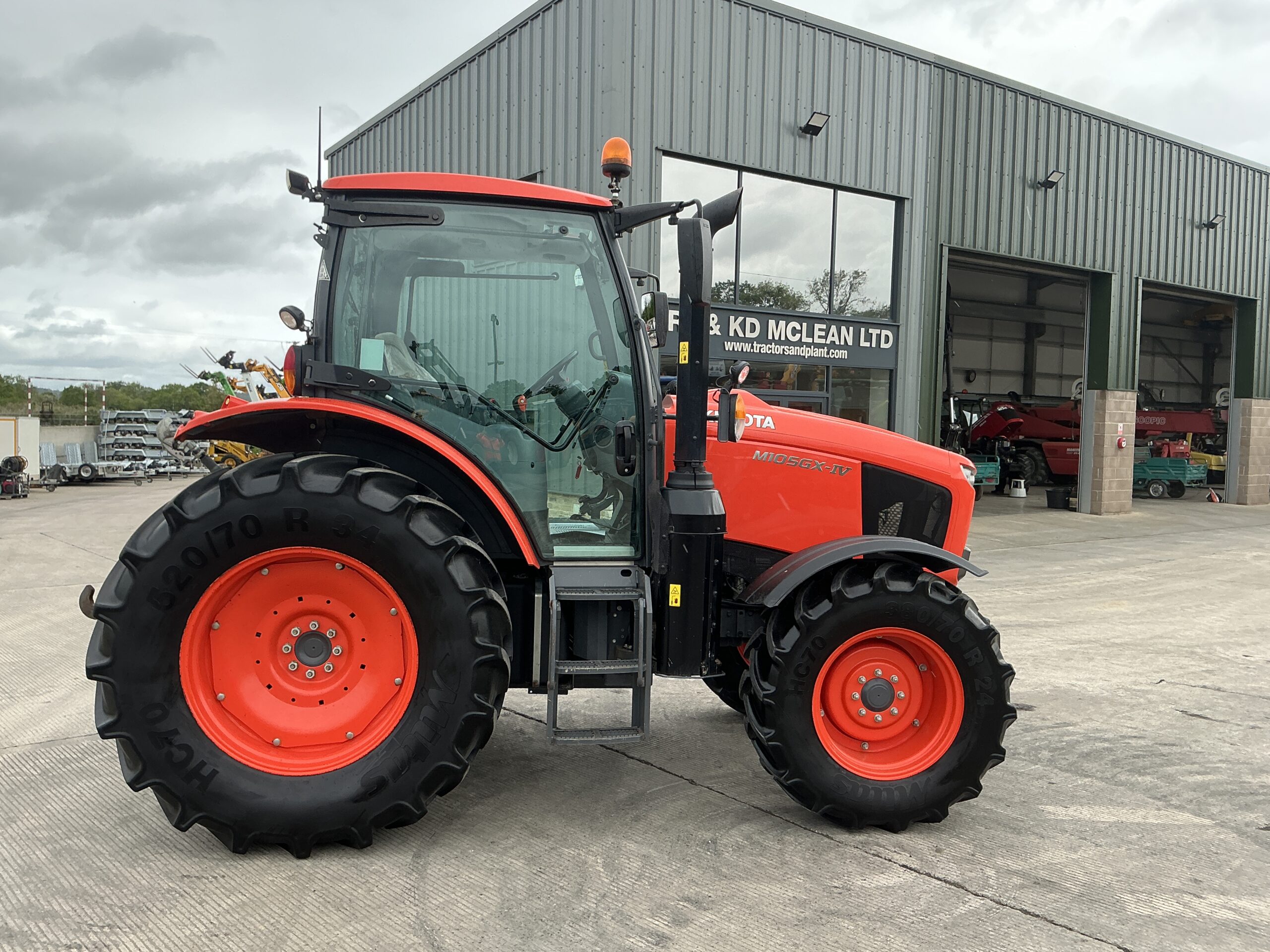

Kubota M105GX-IV
Kubota M105GX-IV — MGX IV Series · 111 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Weight
9480 to 10053 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank190.0 LReference
Exhaust fluid (DEF)15.9 LReference
Engine (gross)82.8 kWReference
Kubota V3800-CRReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
EmissionsStage IVReference
Rated Power (gross)82.8 kWReference
Rated RPM2400Reference
Torque379.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed 8-speed power shiftReference
32-speed creeperReference
Type8-speed power shiftReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Eight power shift gears in three synchronized ranges with shuttle.Reference
TypecreeperReference
Gears32 forward and reverseReference
PTO & Hydraulics
Valves2 to 4Reference
Pump flow76.5 lpmReference
Rear TypeIIIReference
Controlposition and lower-link draft controlReference
Rear lift (at ends)5000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase244 cmReference
Wheelbase254 cmReference
Weight9480 to 10053 poundsReference
Front tire380/70R24Reference
Rear tire520/70R34Reference
Standard tires (ag)Front: 380/70R24. Rear: 520/70R34Reference
Length431 cmReference
Width227 cmReference
Height282 cmReference
Weight4300 kgReference
Weight4560 kgReference
Front tread163 to 167 cmReference
Rear tread175/180/190 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
