Tractor · 2005Unverified

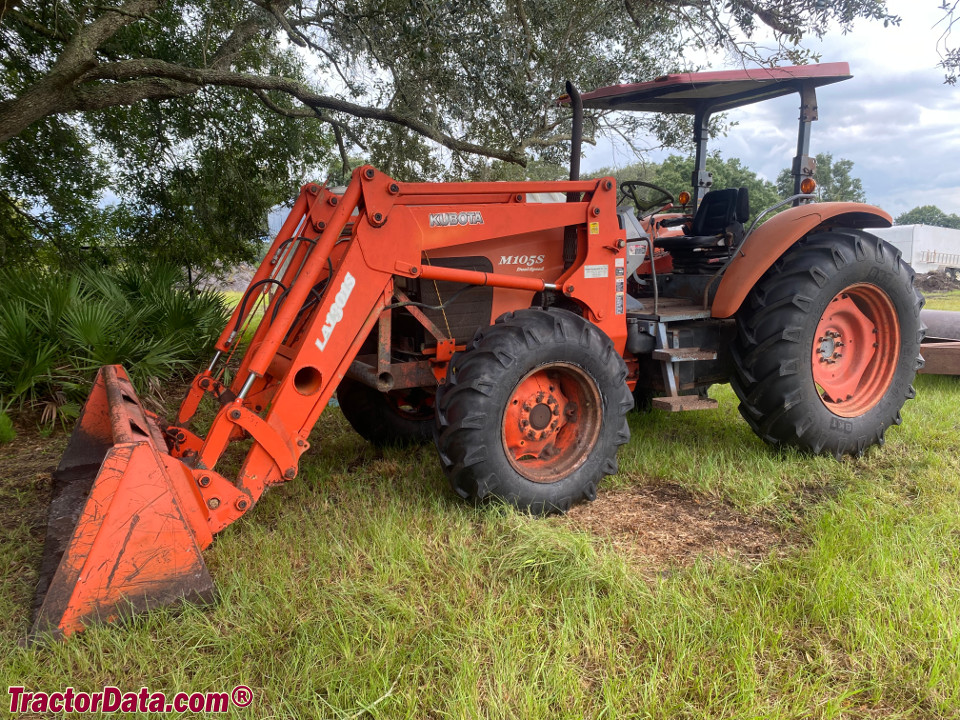

Kubota M105S
Kubota M105S — Utility tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
6305 to 8642 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab optional with heat and air-conditioningReference
Variants
M105XIntelliShiftReference
M105H2WD ROPSReference
M105HD4WD ROPSReference
M105DSF2WD ROPSReference
M105DS4WD ROPSReference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank174.9 LReference
Engine (net)78.3 kWReference
Kubota V3800-DI-TIReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power (net)78.3 kWReference
Air cleanerdry, dual elementReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
32-speedReference
48-speedReference
16-speedReference
TransmissionSwing Shift PlusReference
Gears32 forward and reverseReference
TransmissionSwing Shift Plus/creeperReference
Gears48 forward and reverseReference
TransmissionSwing ShiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)69.4 kWReference
Typeopen centerReference
Pressure196.1 barReference
Valves1 to 3Reference
Pump flow65.1 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2100 kgReference
Rear lift (at 24"/610mm)3397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@2205Reference
Dimensions
Wheelbase243 cmReference
Weight6305 to 8642 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Length411 cmReference
Width200 cmReference
Height (cab)269 cmReference
Ground clearance43 cmReference
2WD Front tread153 to 203 cmReference
4WD Front tread152 to 166 cmReference
Rear tread152 to 203 cmReference
2WD ROPS2859 kgReference
2WD cab3200 kgReference
4WD cab3920 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45 (ROPS)Reference
Charging amps60 (cab)Reference
Charging amps80Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
