Tractor · 2005Unverified

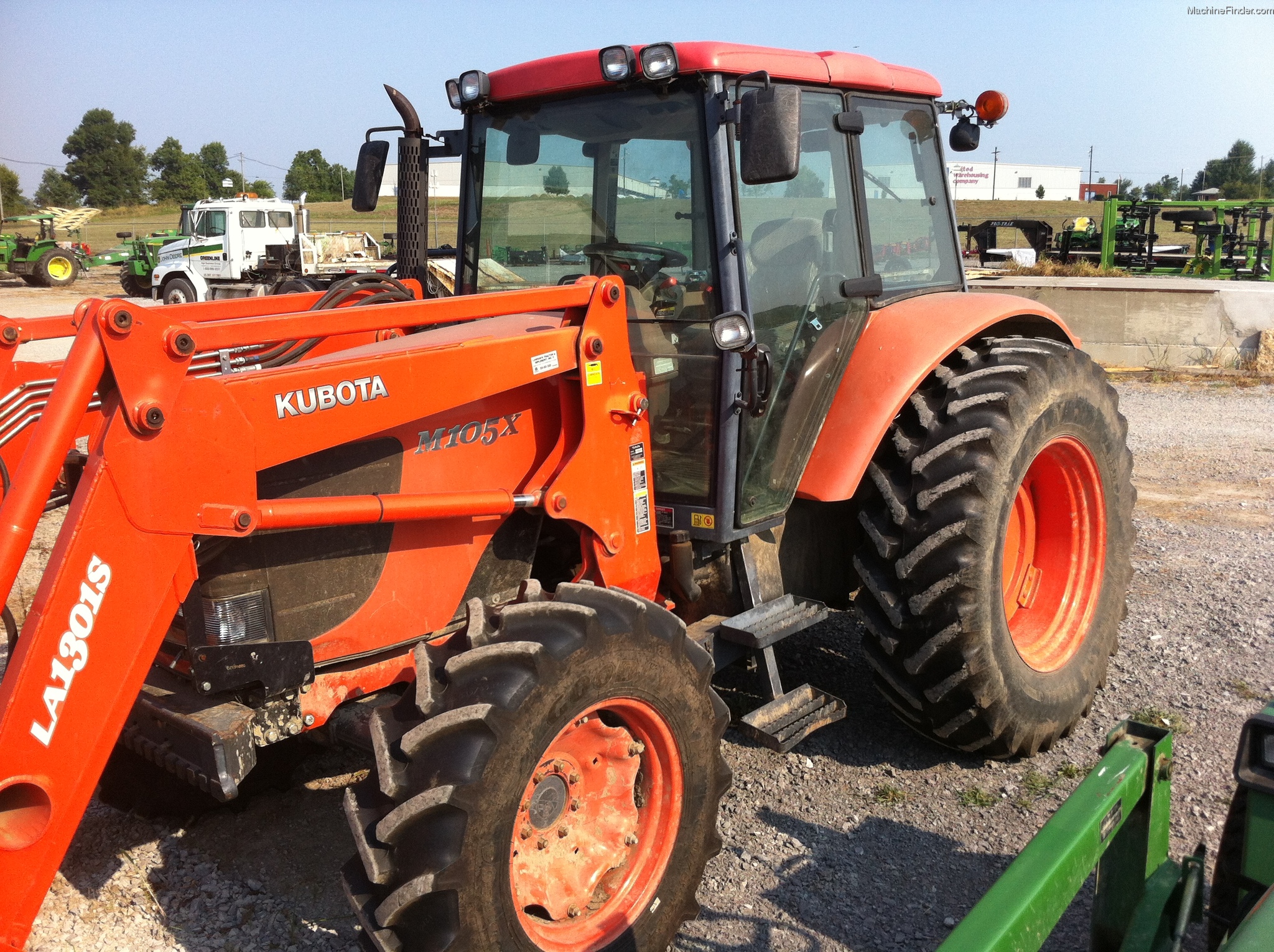

Kubota M105X
Kubota M105X — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4076 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioner. Optional radio/CD-player and instructor seat.Reference
Variants
M105SSwing ShiftReference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank190.0 LReference
Engine (net)78.3 kWReference
Kubota V3800TIE2Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power (net)78.3 kWReference
Air cleanerdual 8-inch dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
TransmissionIntelli-ShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
Valves2 to 4Reference
Pump flow68.5 lpmReference
Steering flow59.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2362 kgReference
Rear lift (at 24"/610mm)4285 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase243 cmReference
Weight4076 kgReference
Front tire13.6R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 18.4R34Reference
Length415 cmReference
Width212 cmReference
Height268 cmReference
Ground clearance58 cmReference
Front tread152 to 166 cmReference
Front tread203 cmReference
Rear tread152 to 203 cmReference
Kubota M105X attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery CCA900Reference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
