Tractor · 2007Unverified

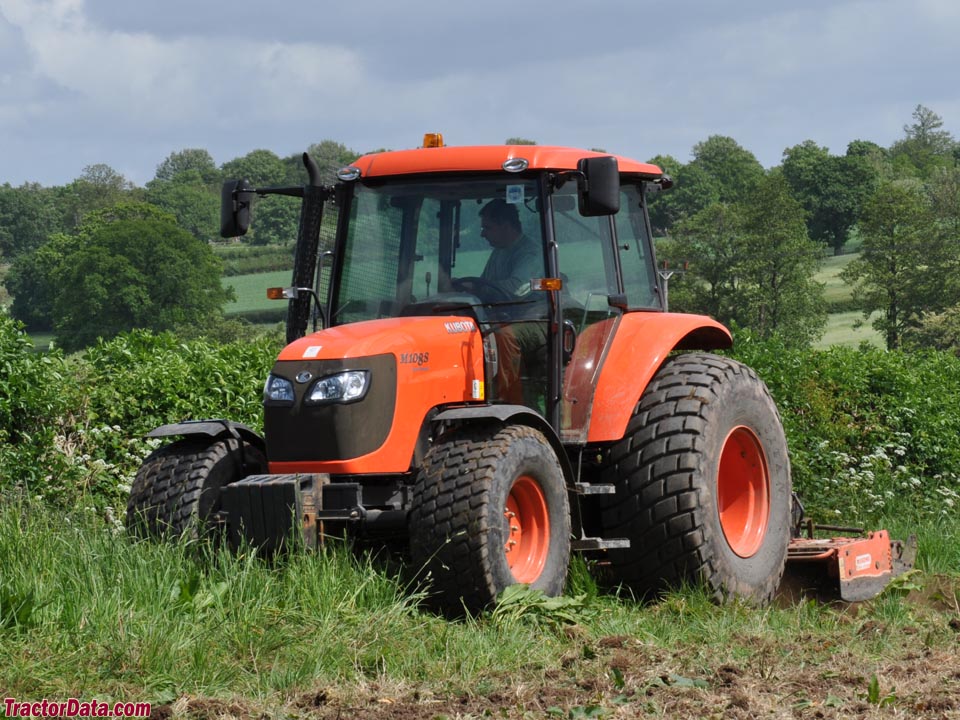

Kubota M108S
Kubota M108S — Row-Crop tractor · 108 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
108 hp
Max power
76.9 kW
Weight
6349 to 8576 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Row-Crop tractorReference
Original price$36,542 (2011)Reference
Two- or four-wheel driveReference
Differential lockmechanical rear or front-and-rear (4WD) (2WD)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab with heat and air-conditioning optional.Reference
Variants
M108XIntelli-ShiftReference
M108SDSLlow-profileReference
M108SH2WD ROPS 16-speedReference
M108SDSF2WD ROPS 32-speedReference
M108SHD4WD ROPS 16-speedReference
M108SDS4WD ROPS 32-speedReference
M108SHC2WD cab 16-speedReference
M108SHDC4WD cab 16-speedReference
M108SDSC4WD cab 32-speedReference
Engine
Kubota 3.8L 4-cyl dieselReference
Engine (net)80.5 kWReference
Kubota V3800-DT-TIReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.8 LReference
EmissionsTier IIIReference
Emission controlEGRReference
Power (net)80.5 kWReference
Air cleanerdual dry elementsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.1 LReference
Max power76.9 kWReference
Power at rated engine speed75.9 kWReference
Transmission
16-speed partially synchronizedReference
32-speed partial power shiftReference
24-speed partially synchronizedReference
48-speed partial power shiftReference
TransmissionSwing ShiftReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Clutchwet discReference
Oil capacity62.8 LReference
Four synchronized gears in two synchronized ranges plus additional non-synchronized high-low range. Hydraulic shuttle.Reference
TransmissionSwing Shift Plus Dual SpeedReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Dual Speed adds a push-button power shift at each gear in the basic Swing Shift transmission.Reference
TransmissionSwing Shift with creeperReference
Gears24 forward and reverseReference
TransmissionSwing Shift Plus with creeperReference
Gears48 forward and reverseReference
PTO & Hydraulics
PTO (claimed)71.6 kWReference
PTO (tested)76.9 kWReference
Hydraulic system62.8 LReference
Typeopen centerReference
Capacity62.8 LReference
Pressure196.1 barReference
Valves1 to 3Reference
Pump flow65.1 lpmReference
Total flow110.9 lpmReference
Steering flow45.8 lpmReference
Rear TypeIIReference
Rear lift (at ends)2522 kgReference
Rear lift (at 24"/610mm)2100 kgReference
Rear lift (at 24"/610mm)3397 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (optional)Reference
Engine RPM540@2205Reference
Power at rated PTO speed74.0 kWReference
Capacities
Fuel174.9 LReference
Front axle10.5 LReference
Dimensions
Weight6349 to 8576 poundsReference
Front tire10.00-16Reference
Rear tire18.4-34 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4-34 (2WD)Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34 (4WD)Reference
Optional tires (ag)Front: 9.5L-15. Rear: 16.9-34 (2WD)Reference
Optional tires (ag)Front: 10.00-16. Rear: 18.4R34 (2WD)Reference
Optional tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference
Optional tires (ag)Front: 12.4R24. Rear: 18.4R30 (4WD)Reference
Optional tires (ag)Front: 13.6R24. Rear: 13.6R34 (4WD)Reference
Optional tires (ag)Front: 12.4-24. Rear: 16.9-34 (4WD)Reference
Width228 cmReference
Width231 cmReference
Clearance (drawbar)43 cmReference
Front tread153 to 203 cmReference
Front tread152 to 166 cmReference
Rear tread170 to 200 cmReference
Rear tread172 to 203 cmReference
2879 kgReference
3150 kgReference
3620 kgReference
3890 kgReference
Kubota M108S attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45 (ROPS)Reference
Charging amps80 (cab)Reference
Battery CCA900Reference
Battery volts12Reference
Battery GroupnegativeReference
Attachment overview
Kubota LA1403 Height Position loaderReference
Kubota LA1403 Power Position loaderReference
Kubota M108S Height
ROPS266 cmReference
ROPS205 cmReference
Cab269 cmReference
Test results
Diesel 16-speed 4WDNovember 18 - 21, 2008Link: Nebraska Tractor Test 1944 fileReference
PTO performanceReference
Fuel use23.5 l/hourReference
Fuel use23.8 l/hourReference
Fuel use22.0 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
