Tractor · 2007Unverified

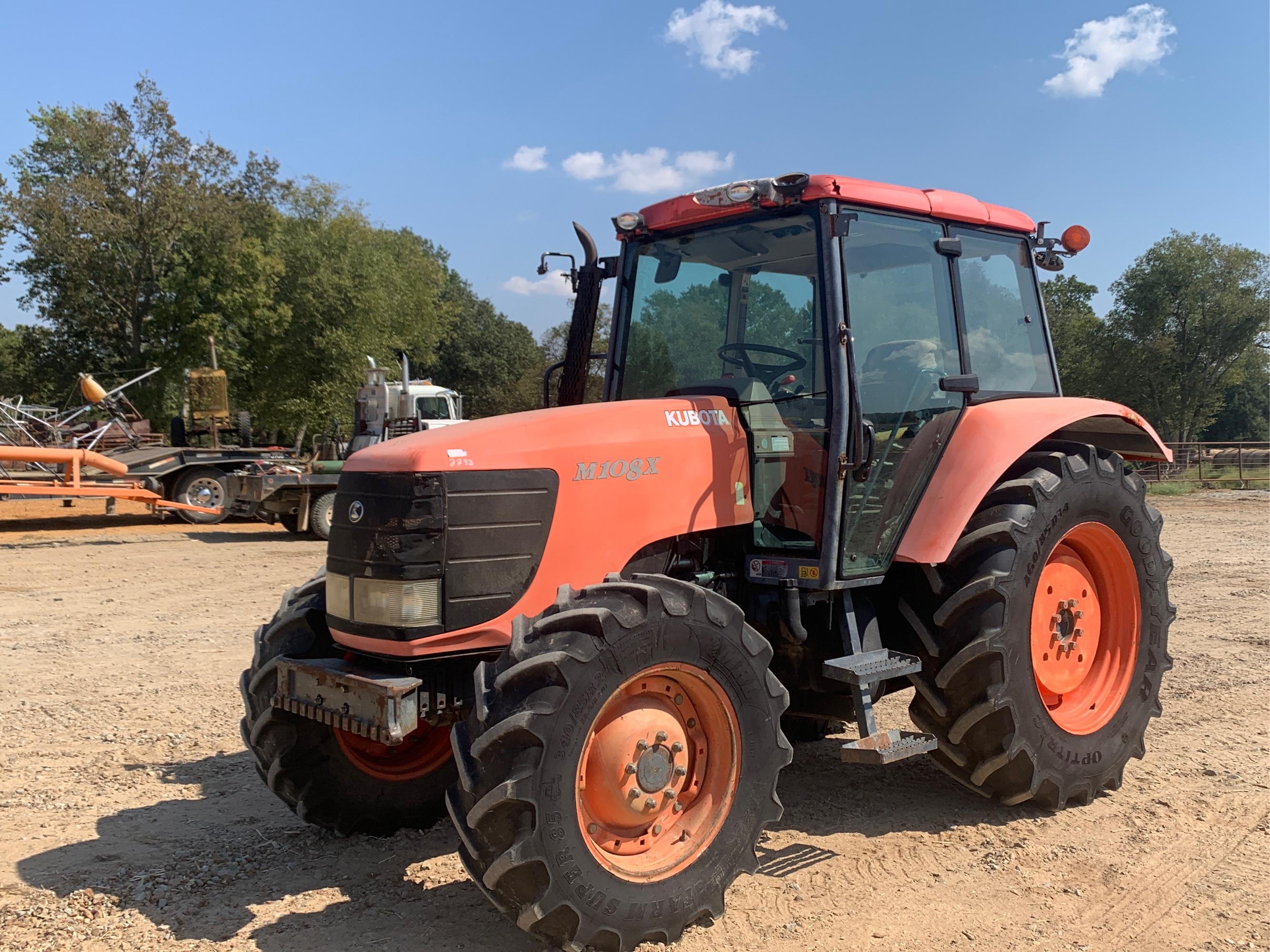

Kubota M108X
Kubota M108X · 108 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
108 hp
Weight
4276 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Original price$57,301 (2011)Reference
Four-wheel driveReference
Differential lockstandardReference
Steeringhydrostatic power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional radio/CD-player and instructor seat.Reference
Variants
M108Xrow-cropReference
M108SDSLlow-profileReference
Engine
Kubota 3.8L 4-cyl dieselReference
Engine (net)80.5 kWReference
Kubota F5802TE2Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power (net)80.5 kWReference
Air cleaner8-inch dry dual elementReference
Rated RPM2600Reference
Starter volts12Reference
Oil capacity10.7 LReference
Coolant capacity9.1 LReference
Transmission
16-speed partial power shiftReference
24-speedReference
TransmissionIntelli-ShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutch133mm electro-hydraulic wet discsReference
Oil capacity62.8 LReference
Eight gears in two ranges. Push-button power shift between gears. Auto-Mode enables load-matched automatic shifting within a four-gear range.Reference
TransmissionIntelli-Shift creeperReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)69.4 kWReference
Hydraulic system62.8 LReference
Typeopen centerReference
Capacity62.8 LReference
Pressure196.1 barReference
Valves2 to 4Reference
Pump flow68.5 lpmReference
Total flow118.5 lpmReference
Steering flow50.0 lpmReference
Rear TypeIIReference
Rear lift (at ends)2634 kgReference
Rear lift (at 24"/610mm)2360 kgReference
Rear lift (at 24"/610mm)4285 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2210Reference
Capacities
Fuel190.0 LReference
Front axle10.5 LReference
Dimensions
Wheelbase243 cmReference
Weight4276 kgReference
Front tire13.6R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 18.4R34Reference
Optional tires (ag)Front: 12.4R24. Rear: 18.4R30Reference
Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Optional tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Length415 cmReference
Width212 cmReference
Height268 cmReference
Ground clearance58 cmReference
Front tread152 to 166 cmReference
Front tread203 cmReference
Rear tread152 to 203 cmReference
Kubota M108X attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery CCA900Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
