Tractor · 1998Unverified

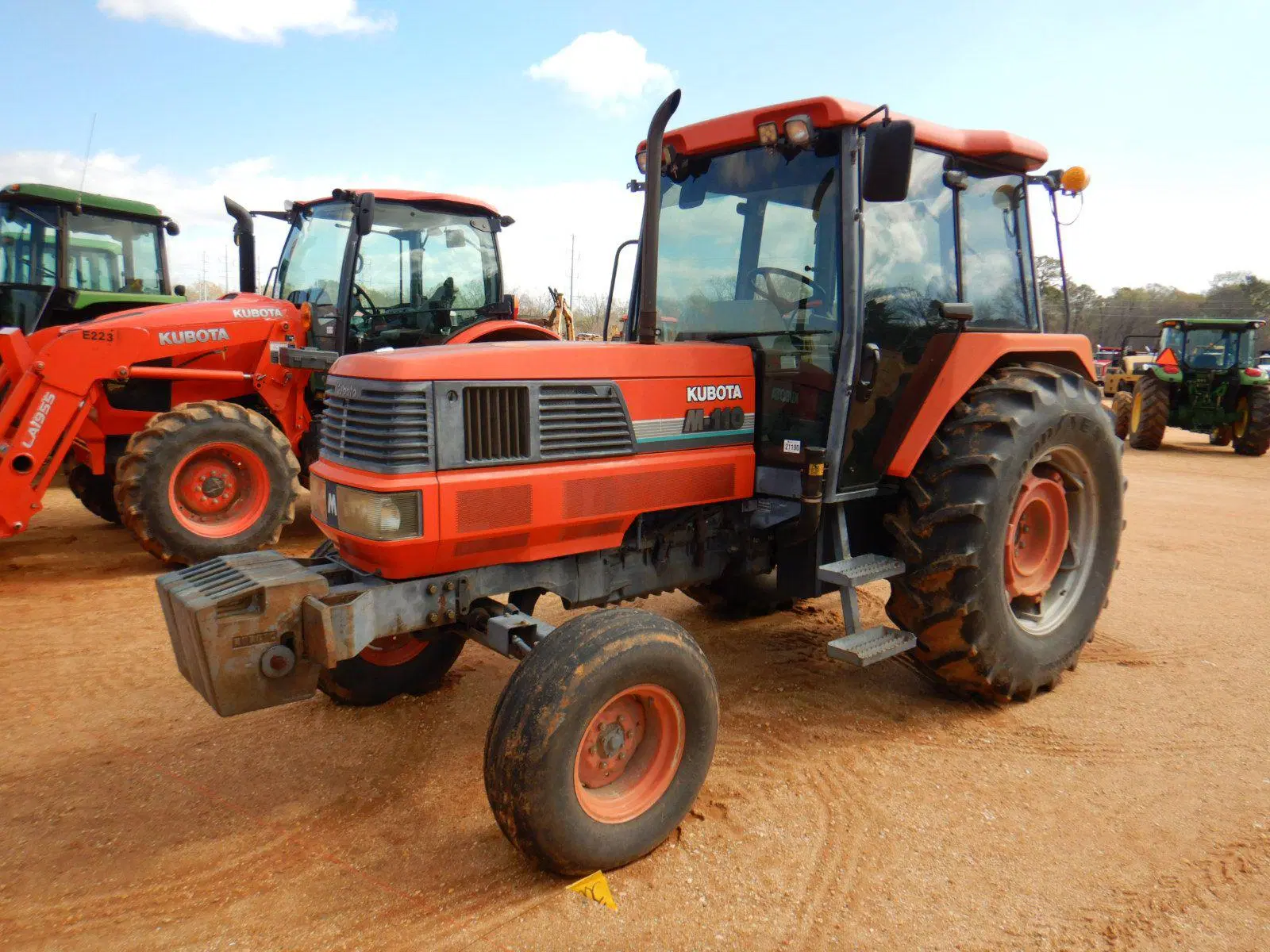

Kubota M110

Name: Kubota M110
Brand: Kubota

Kubota M110 — M Series · 88 hp. Reference specifications; pending source verification.

The Kubota M110 is a tractor model with a rated power of 88 hp, falling within the mid-range of its class. It was manufactured from 1998 to 2004. The tractor features a 5-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. Its operating weight ranges between 8598 and 9259 pounds, suitable for land operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

88 hp

Weight

8598 to 9259 pounds

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

88 hp

Recorded weight

3900 kg

Transmissions

16-speed eight-speed power shift

Production years

1998-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kubota 5.8L 5-cyl dieselReference

Engine82.0 kWReference

Kubota F5802Reference

turbocharged dieselReference

5-cylinderReference

liquid-cooledReference

Displacement5.8 LReference

Bore/Stroke109 x 125 mmReference

Power82.0 kWReference

Fuel systemdirect injectionReference

Rated RPM2400Reference

Torque421.7 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity13.6 LReference

Fuel TypeDieselReference

No of Cylinders5 cylinderReference

Engine torque at rated speed311@ 1,300 RPM lb-ftReference

Bore and stroke4.291x4.922 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed eight-speed power shiftReference

24-speed creeperReference

Typeeight-speed power shiftReference

Gears16 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight-speed push-button power shift with two ranges (low/high). Push-button clutch button for range shifts. Electro-hydraulic power shuttle.Reference

TypecreeperReference

Gears24 forward and reverseReference

Transmission TypePowershiftReference

PTO & Hydraulics

PTO (claimed)65.6 kWReference

Hydraulic system54.9 LReference

Typeopen centerReference

Capacity54.9 LReference

Valves2Reference

Pump flow78.0 lpmReference

Rear TypeIIReference

Rear lift2358 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2035Reference

Engine RPM1000@2210Reference

Capacities

Fuel149.9 LReference

Fuel tank149.9 LReference

Dimensions

2WD Wheelbase249 cmReference

4WD Wheelbase251 cmReference

Weight8598 to 9259 poundsReference

Front tire10.00-16Reference

2WD Rear tire18.4R-34Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4R-34Reference

4WD Standard tires (ag)Front: 13.6-24. Rear: 18.4R-34Reference

Length422 cmReference

Width217 cmReference

Height (cab)267 cmReference

2WD Weight3900 kgReference

4WD Weight4199 kgReference

Clearance (front axle)58 cmReference

Kubota M110 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Kubota LA1301 loaderReference

Kubota LA1601 loaderReference

Speeds

With 18.4-38 rear tires.Reference

General

Make & ModelKubotaReference

Country of manufacturerUtility tractorReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@2,210 RPMReference

Steering & brakes

BrakesHydraulic wet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves2 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,358.7 kgReference

Dimensions & weight

Wheelbase249.4 cmReference

Height Over Cab267.5 cmReference

Overall Length422.4 cmReference

Overall Width217.9 cmReference

Front axle clearance58.9 cmReference

Wheels & tyres

Rear Wheel Type2WD - 18.4R-34 | 4WD - 18.4R-34Reference

Rear wheel tread range18.4R-34 inchReference

Front Wheel Type2WD - 10.00-16. | 4WD -13.6-24.Reference

Front Wheel tread range10.00-16, 13.6-24 (4WD)Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with air-conditioning.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
