Tractor · 2009Unverified

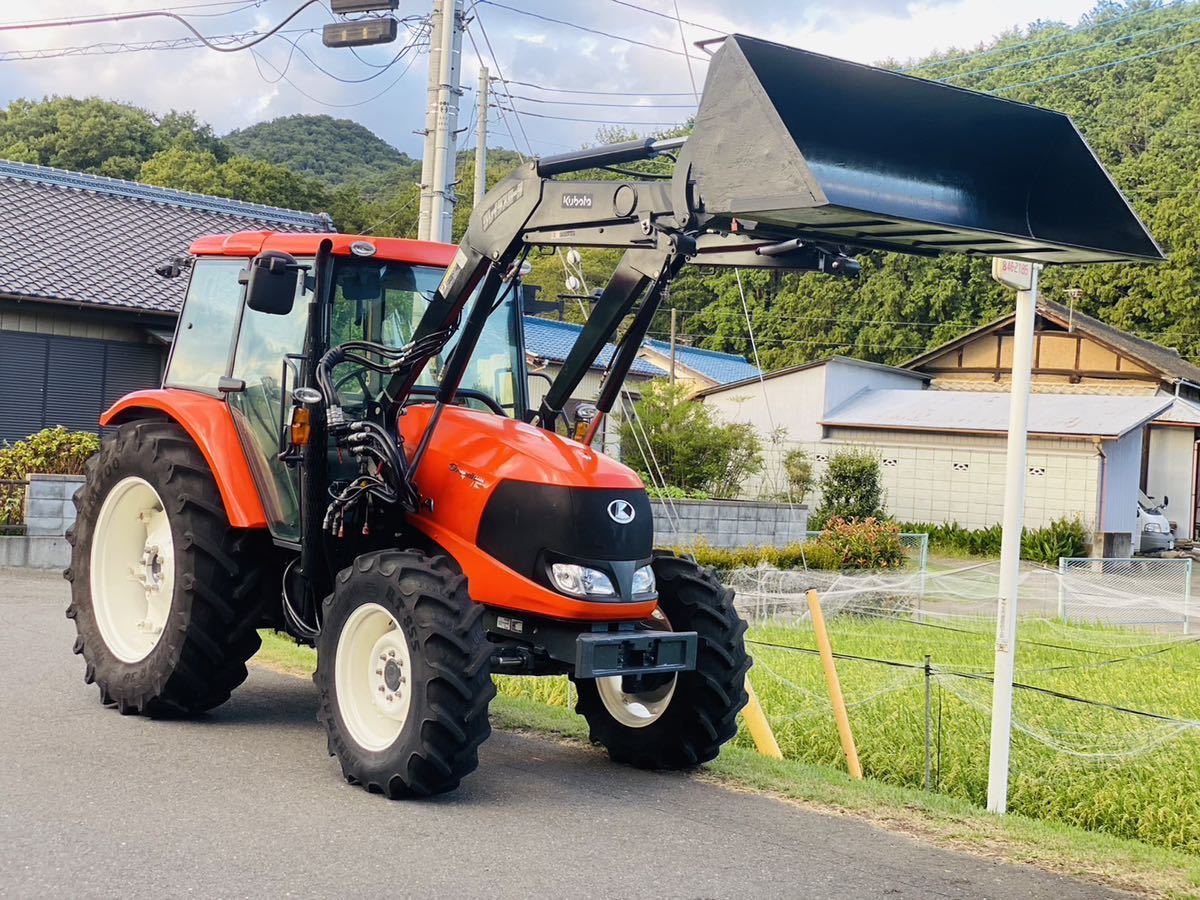

Kubota M110A

Name: Kubota M110A
Brand: Kubota

Kubota M110A — Grandom A Series · 109 hp. Reference specifications; pending source verification.

The Kubota M110A is a tractor with a rated power output of 109 hp, falling within the mid-range for its class. Manufactured from 2009 to 2013, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. With an operating weight of 3840 kg, the Kubota M110A is suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

109 hp

Max power

108.5 hp

Weight

3840 kg

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

109 hp

Recorded weight

3840 kg

Transmissions

16-speed power shift

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank190.0 LReference

Engine80.9 kWReference

Kubota V3800-TIReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power80.9 kWReference

Fuel systemdirect injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.94x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed power shiftReference

24-speed creeperReference

Typepower shiftReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

Eight power-shift gears in two ranges with shuttle.Reference

TypecreeperReference

Gears24 forward and reverseReference

Optional creeper adds an additional 8-speed range to the standard transmission.Reference

Transmission TypePowershiftReference

forward and reverse optionsPower Shift: 16 F and 16 R | Creeper : 24 F and 24 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIIReference

Controlposition and electronic draft controlReference

Rear lift3900 kgReference

Rear lift5000 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@2405Reference

Engine RPM1000@2529Reference

Dimensions

Wheelbase243 cmReference

Weight3840 kgReference

Front tire13.6-24Reference

Rear tire16.9-38Reference

Standard tires (ag)Front: 13.6-24. Rear: 16.9-38Reference

Length426 cmReference

Width197 cmReference

Height271 cmReference

Ground clearance40 cmReference

Front tread152 cmReference

Rear tread152 to 200 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Capacities

Capacity230 ciReference

Power

Max Power108.5 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@2,529 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typePowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity4,999.9 kgReference

Rear Hitch Sensing Typeposition and electronic draft controlReference

Dimensions & weight

Overall Height271 cmReference

Overall Length427 cmReference

Overall Width197.1 cmReference

Overall weight3,840.1 kgReference

Wheels & tyres

Rear Wheel Type16.9-38Reference

Rear wheel tread range60.2 to 79.1 InchesReference

Front Wheel Type13.6-24.Reference

Front Wheel tread range152.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
