Tractor · 2014Unverified

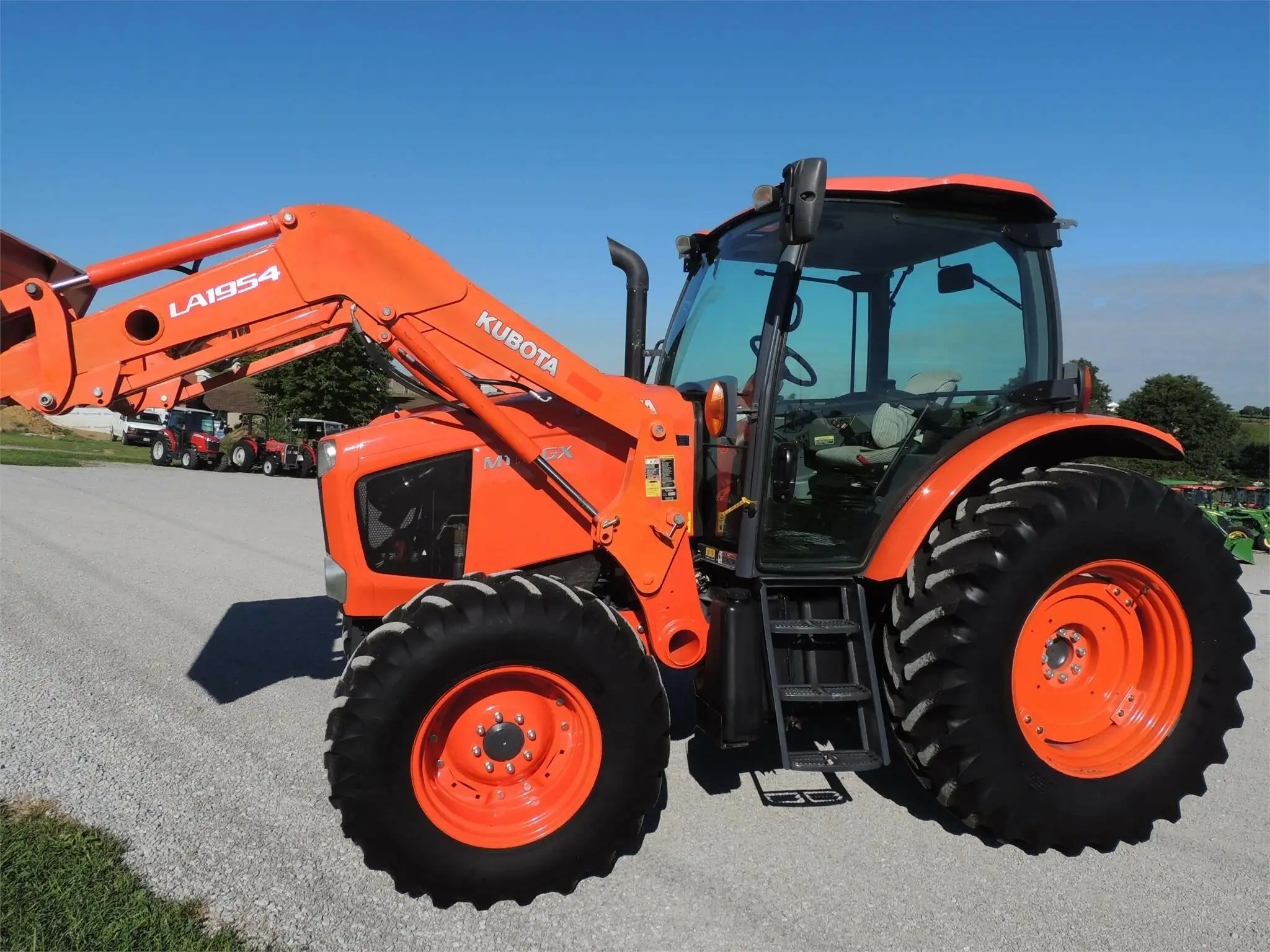

Kubota M110G
Kubota M110G — Globe Series · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
3709 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
M110Gwheeled[9743]Reference
M110G-PChalf-track crawlerReference
Engine
Kubota 3.8L 4-cyl dieselReference
Fuel tank190.0 LReference
Engine80.9 kWReference
Kubota V3800-CR-TIE4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power80.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
32-speed creeperReference
Typepower shiftReference
Gears24 forward and reverseReference
Clutchhydraulic wet discReference
Eight power-shift gears in three ranges with shuttle.Reference
TypecreeperReference
Gears32 forward and reverseReference
Optional creeper adds an additional 8-speed range to the standard transmission.Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2405Reference
Engine RPM1000@2529Reference
Dimensions
Wheelbase243 cmReference
Weight3709 kgReference
Front tire13.6-24Reference
Rear tire16.9-38Reference
Standard tires (ag)Front: 13.6-24. Rear: 16.9-38Reference
Length426 cmReference
Width210 cmReference
Height283 cmReference
Ground clearance48 cmReference
Front tread152 cmReference
Rear tread152 to 200 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
