Tractor · 2012Unverified

Kubota M110GX

Name: Kubota M110GX
Brand: Kubota

Kubota M110GX — Grand X Series · 96 hp. Reference specifications; pending source verification.

The Kubota M110GX is a tractor model with a rated output of 96 hp, placing it in the middle of its class for power. It was manufactured in 2012 and features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine. The tractor is equipped with a powershift transmission and four-wheel drive, and has a listed weight of 4180 kg. It is designed for tasks in areas of approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

96 hp

Max power

109.5 hp

Weight

4180 kg

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

96 hp

Recorded weight

4180 kg

Transmissions

24-speed eight-speed power shift

Production years

2012-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Row-Crop tractorReference

Original price was $70,010 in 2014Reference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Grand X Cab standard with air-conditioning.Reference

Engine

Kubota 3.8L 4-cyl dieselReference

Fuel tank190.0 LReference

Engine81.7 kWReference

Kubota V3800-TI-CRSReference

turbocharged and intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

EmissionsInterim Tier IVReference

Emission controlexhaust gas recirculation and diesel particulate filter (DPF) (EGR)Reference

Power81.7 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdual dry elementReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.94x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

24-speed eight-speed power shiftReference

32-speedReference

TransmissionIntelli-ShiftReference

Typeeight-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight power shift gears in three ranges. Power shuttle.Reference

TransmissionIntelli-Shift CreeperReference

Gears32 forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)71.6 kWReference

Valves2 to 4Reference

Pump flow70.8 lpmReference

Steering flow60.6 lpmReference

Rear TypeIIReference

Controlelectronic lower-link draft controlReference

Rear lift (at 24"/610mm)3099 kgReference

Rear lift (at 24"/610mm)4285 kgReference

Rear Armstelescopic lower link endsReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase243 cmReference

Weight4180 kgReference

Front tire13.6R24Reference

Rear tire18.4R34Reference

Ag front13.6R24Reference

Ag rear18.4R34Reference

Length420 cmReference

Width210 cmReference

Height283 cmReference

Ground clearance49 cmReference

Front axle4WDReference

Front tread157 to 167 cmReference

Rear tread152 to 203 cmReference

Kubota M110GX attachments

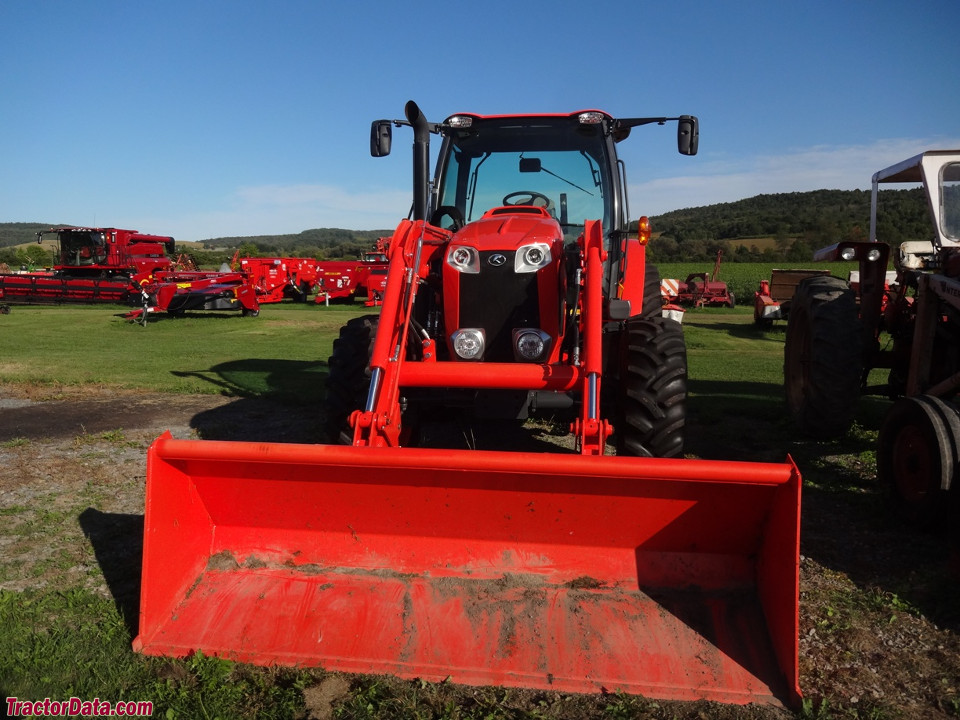

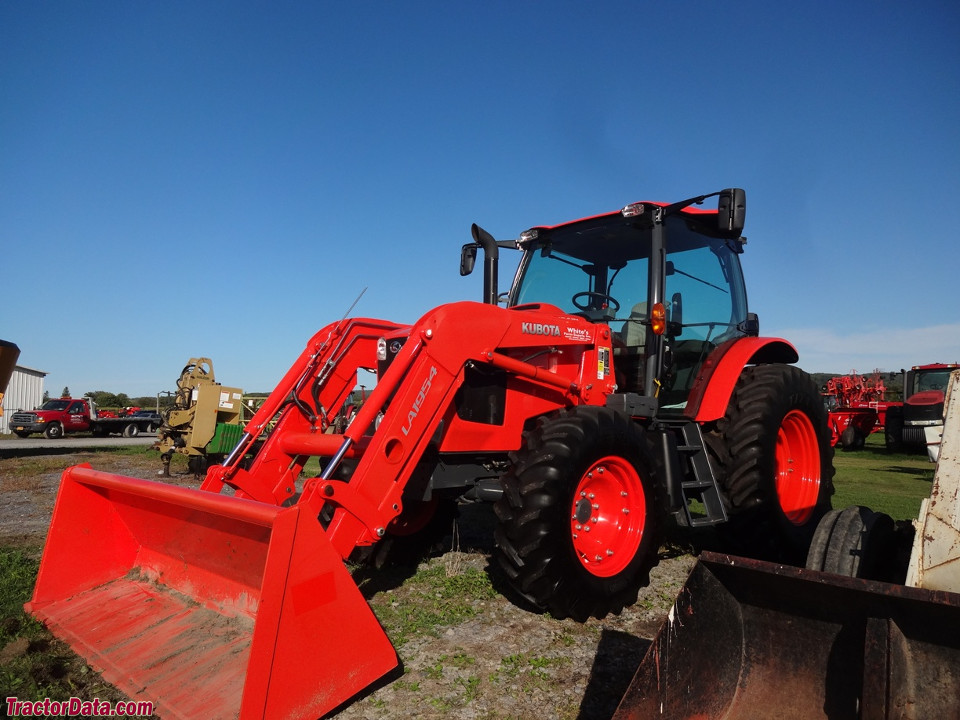

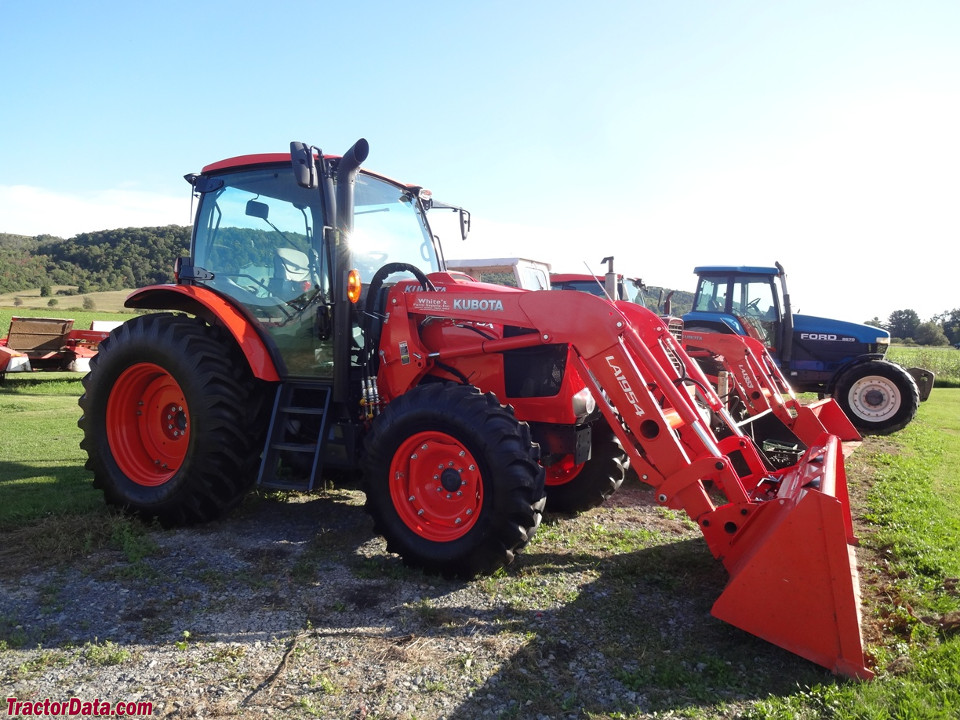

front-end loaderReference

M110GX Serial Number Location

Serial number decal on the right side of the M110GX tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps80Reference

Battery CCA900Reference

Battery volts12Reference

Battery AH100Reference

Total cold cranking amps900 CCAReference

General

Make & ModelKubotaReference

SCV controlAvailableReference

Front Axle Type4WDReference

Capacities

Capacity230 ciReference

Hydraulics

Capacity Valves16 ValvesReference

Remote Valves2 to 4 ValvesReference

Steering & Implements flow16 gpm (18.7 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeelectronic lower-link draft controlReference

Power

Max Power109.5 hpReference

PTO

PTO Power96 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall Height284 cmReference

Overall Length420.1 cmReference

Overall Width210.1 cmReference

Overall weight4,180.3 kgReference

Wheels & tyres

Rear Wheel Typeag: 18.4R34Reference

Rear wheel tread range60.2 to 80.3 inchesReference

Front Wheel Typeag: 13.6R24Reference

Front Wheel tread range62.2 to 66.1 inchesReference

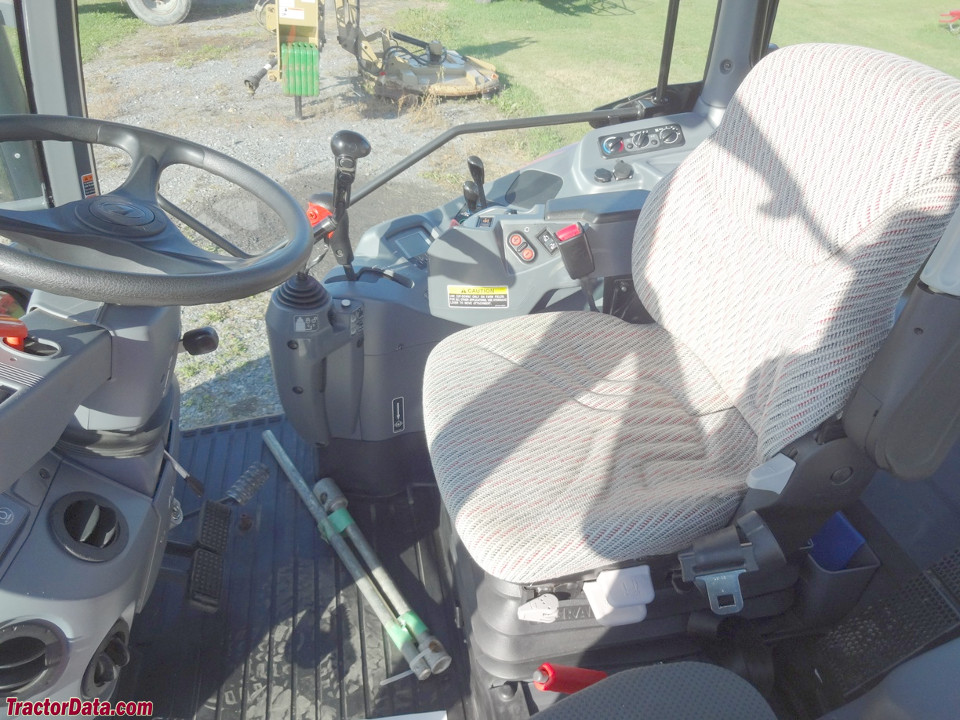

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
