Tractor · 2005Unverified

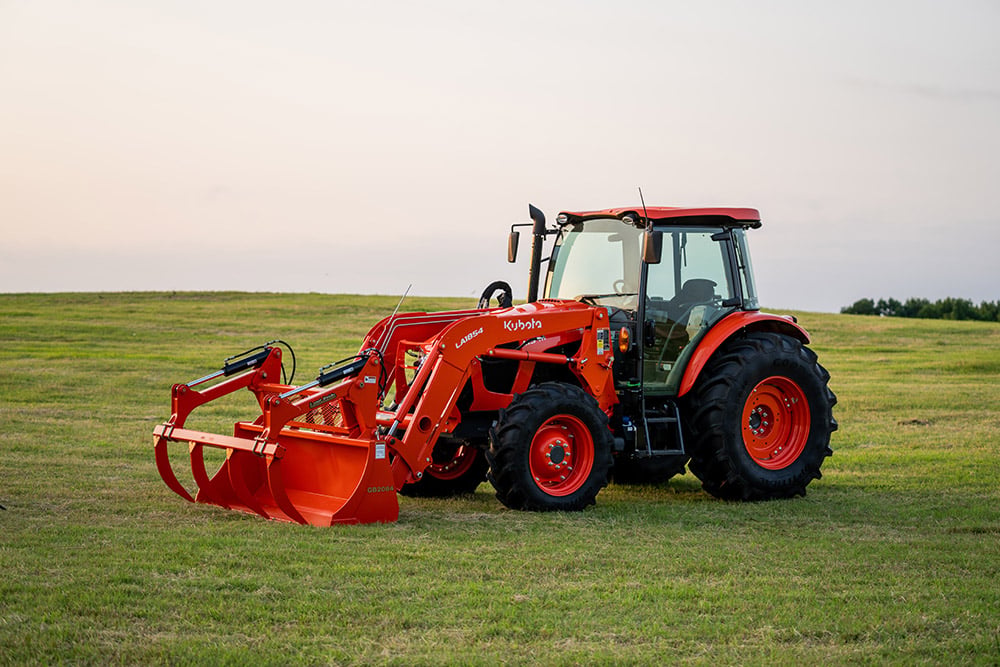

Kubota M115D
Kubota M115D — Grandom Series · 113 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
113 hp
Weight
4186 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 5.8L 5-cyl dieselReference
Fuel tank190.0 LReference
Engine84.5 kWReference
Kubota F5802-TReference
turbocharged dieselReference
5-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke109 x 125 mmReference
Power84.5 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shiftReference
24-speed creeperReference
Typepower shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
Eight power-shift gears in two ranges with shuttle.Reference
TypecreeperReference
Gears24 forward and reverseReference
Optional creeper adds an additional 8-speed range to the standard transmission.Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear lift3900 kgReference
Rear lift5000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2035Reference
Engine RPM1000@2211Reference
Dimensions
Wheelbase268 cmReference
Weight4186 kgReference
Front tire14.9-24Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-38Reference
Length436 cmReference
Width212 cmReference
Height273 cmReference
Ground clearance45 cmReference
Front tread164/173 cmReference
Rear tread152 to 200 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
