Tractor · 2018Unverified

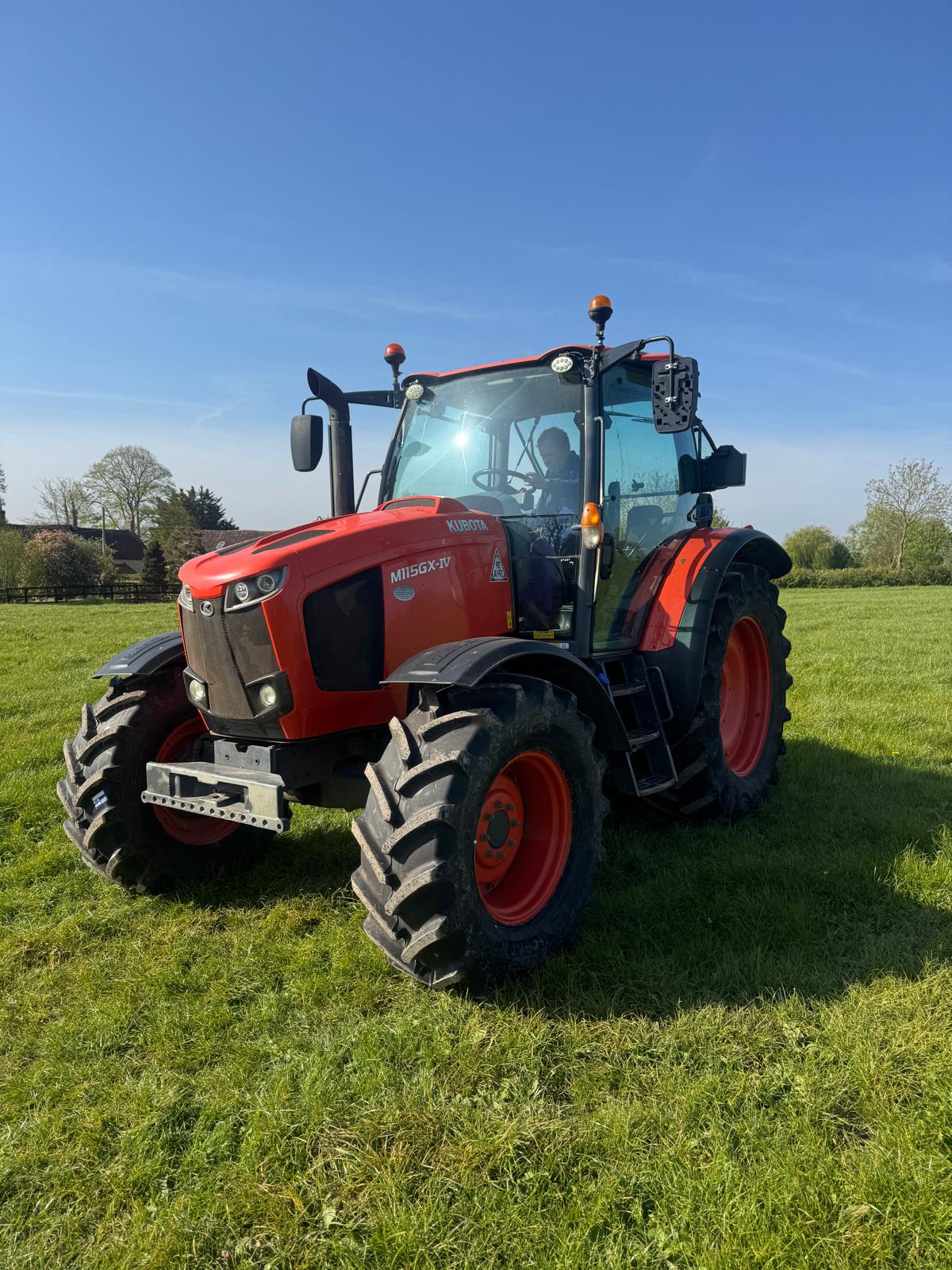

Kubota M115GX-IV

Name: Kubota M115GX-IV
Brand: Kubota

Kubota M115GX-IV — MGX IV Series · 123 hp. Reference specifications; pending source verification.

The Kubota M115GX-IV is a tractor with a rated output of 123 horsepower, categorising it as a high-powered machine in its class. It was manufactured in 2018. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers four-wheel drive via a powershift transmission. Its listed weight is between 10681 and 11166 pounds, with an intended application for areas ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

123 hp

Weight

10681 to 11166 pounds

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

123 hp

Recorded weight

4844 kg

Transmissions

24-speed 8-speed power shift

Production years

2018-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank190.0 LReference

Exhaust fluid (DEF)15.9 LReference

Engine (gross)91.7 kWReference

Kubota V6108-CRReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

EmissionsStage IVReference

Rated Power (gross)91.7 kWReference

Rated RPM2200Reference

Torque503.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed 8-speed power shiftReference

32-speed creeperReference

Type8-speed power shiftReference

Gears24 forward and reverseReference

Clutchelectro-hydraulic wet discReference

Eight power shift gears in three synchronized ranges with shuttle.Reference

TypecreeperReference

Gears32 forward and reverseReference

PTO & Hydraulics

Valves2 to 4Reference

Pump flow82.5 lpmReference

Rear TypeIIIReference

Controlposition and lower-link draft controlReference

Rear lift (at ends)6100 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase268 cmReference

Wheelbase267 cmReference

Weight10681 to 11166 poundsReference

Front tire420/70R24Reference

Rear tire520/70R38Reference

Standard tires (ag)Front: 420/70R24. Rear: 520/70R38Reference

Length447 cmReference

Width232 cmReference

Height288 cmReference

Weight4844 kgReference

Weight5064 kgReference

Front tread183 to 187 cmReference

Rear tread160/166/175/181 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
