Tractor · 2002Unverified

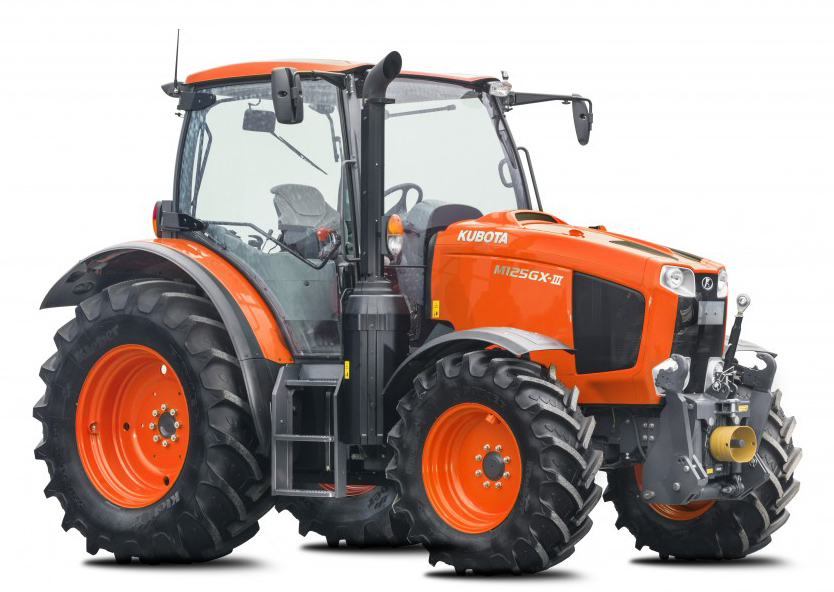

Kubota M125

Name: Kubota M125
Brand: Kubota

Kubota M125 — Grandom Series · 112 hp. Reference specifications; pending source verification.

The Kubota M125 is a tractor rated at approximately 112 hp, a mid-range figure for its class. It was manufactured from 2002 to 2004. The model is equipped with a 5-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight is 4070 kg, suitable for operations of up to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

112 hp

Weight

4070 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

112 hp

Recorded weight

4070 kg

Transmissions

16-speed synchromesh

Production years

2002-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Kubota 5.8L 5-cyl dieselReference

Fuel tank199.8 LReference

Engine91.9 kWReference

Kubota F5802-TReference

turbocharged dieselReference

5-cylinderReference

liquid-cooledReference

Displacement5.8 LReference

Bore/Stroke109 x 125 mmReference

Power91.9 kWReference

Fuel systemdirect injectionReference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed synchromeshReference

16-speed power shiftReference

24-speed creeperReference

TypesynchromeshReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in two ranges with additional high/low shift.Reference

Typepower shiftReference

Clutchhydraulic wet discReference

Eight power-shift gears in two ranges with shuttle.Reference

TypecreeperReference

Gears24 forward and reverseReference

1C:2C:3C:4C:5C:6C:7C:8C;:0.15:0.19:0.23:0.27:0.35:0.45:0.56:0.67Reference

PTO & Hydraulics

PTO (claimed)83.4 kWReference

Rear TypeIIReference

Controlposition and electronic draft controlReference

Rear lift3895 kgReference

Rear lift4996 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2035Reference

Engine RPM1000@2211Reference

Dimensions

Wheelbase268 cmReference

Weight4070 kgReference

Front tire14.9-24Reference

Rear tire18.4-38Reference

Standard tires (ag)Front: 14.9-24. Rear: 18.4-38Reference

Length438 cmReference

Width210 cmReference

Height272 cmReference

Ground clearance52 cmReference

Front tread164/173 cmReference

Rear tread152 to 200 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
