Tractor · 2014Unverified

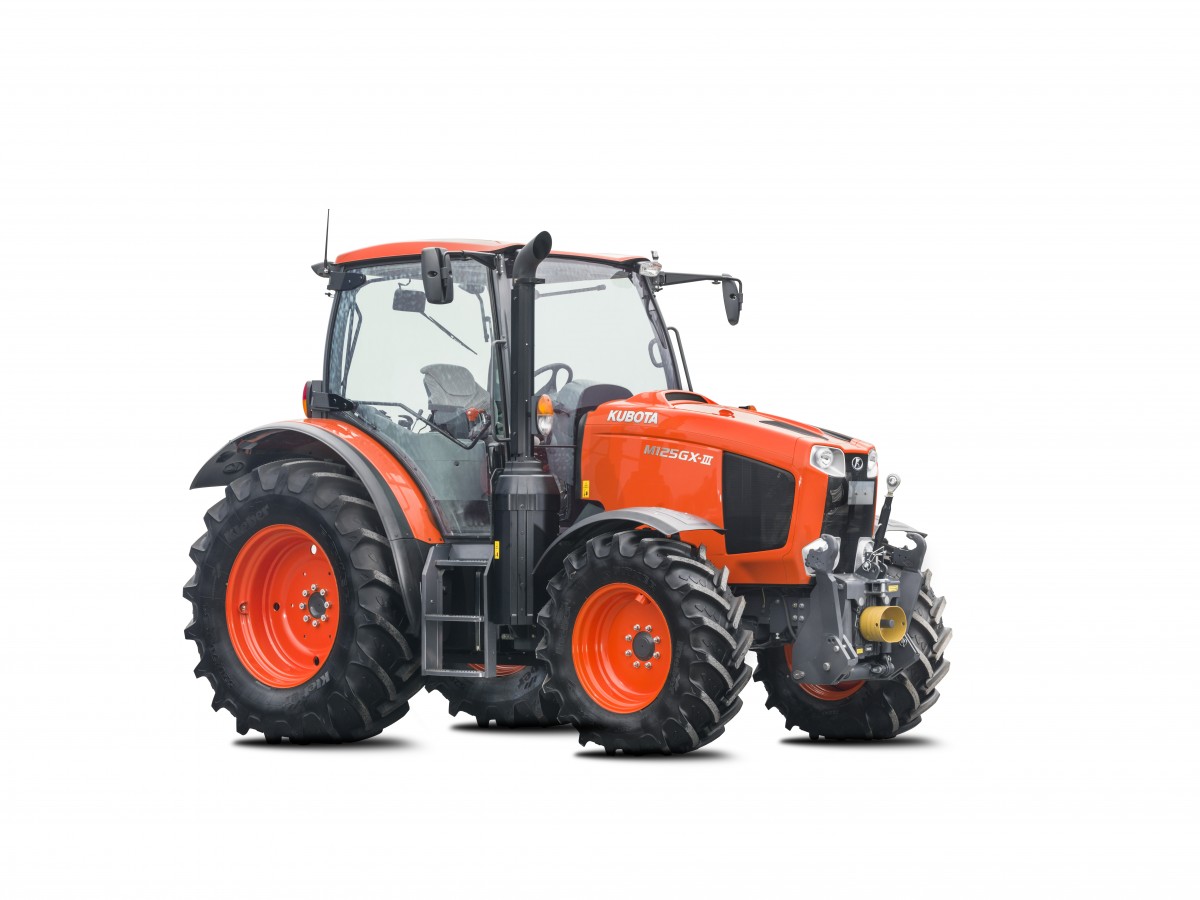

Kubota M125G
Kubota M125G — Globe Series · 123 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
123 hp
Weight
4419 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
M125GwheeledReference
M125G-PChalf-track crawlerReference
Engine
Kubota 6.1L 4-cyl dieselReference
Fuel tank190.0 LReference
Engine91.9 kWReference
Kubota V6108-CR-TIE4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
Power91.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
32-speed creeperReference
Typepower shiftReference
Gears24 forward and reverseReference
Clutchhydraulic wet discReference
Eight power-shift gears in three ranges with shuttle.Reference
TypecreeperReference
Gears32 forward and reverseReference
Optional creeper adds an additional 8-speed range to the standard transmission.Reference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and electronic draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1994Reference
Engine RPM1000@2050Reference
Dimensions
Wheelbase268 cmReference
Weight4419 kgReference
Front tire14.9R24Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R24. Rear: 18.4R38Reference
Length436 cmReference
Width210 cmReference
Height287 cmReference
Ground clearance47 cmReference
Front tread164/173 cmReference
Rear tread157 to 205 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
