Tractor · 2018Unverified

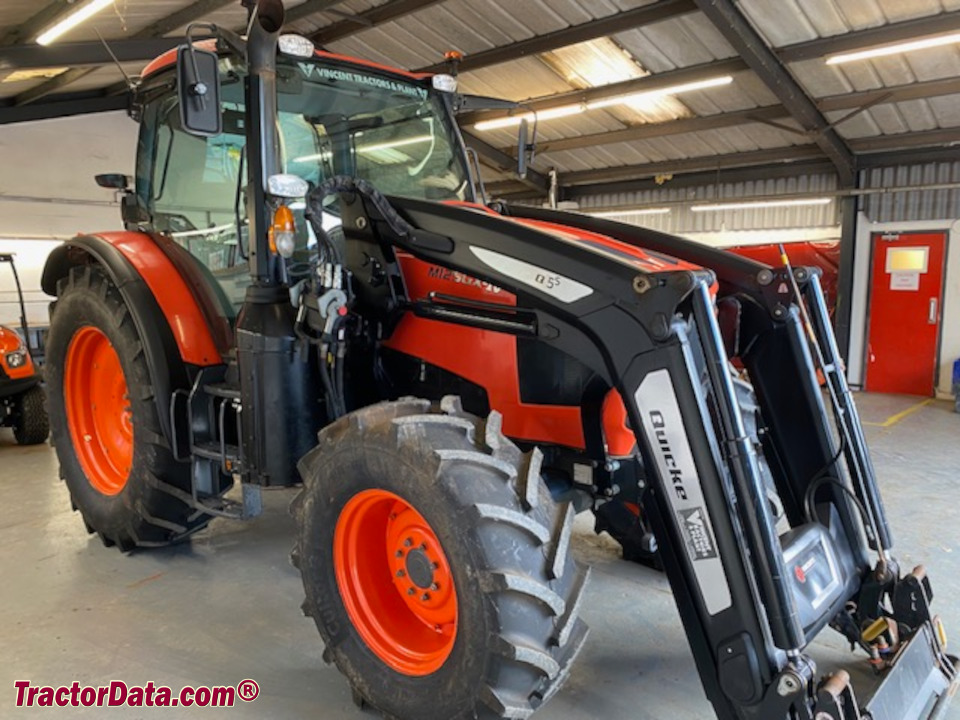

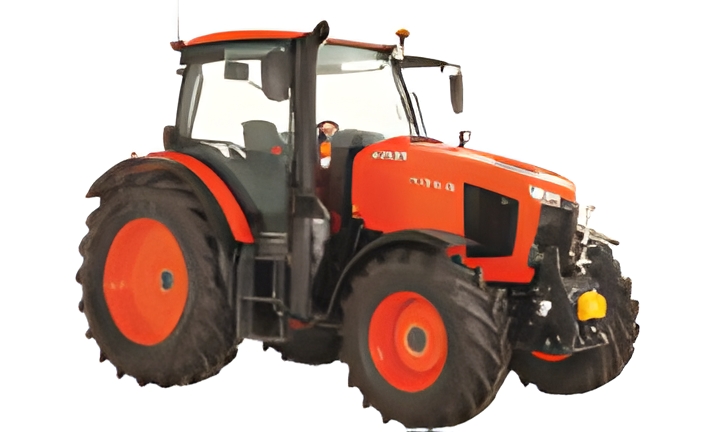

Kubota M125GX-IV
Kubota M125GX-IV — MGX IV Series · 133 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
133 hp
Weight
10681 to 11166 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 6.1L 4-cyl dieselReference
Fuel tank190.0 LReference
Exhaust fluid (DEF)15.9 LReference
Engine (gross)99.2 kWReference
Kubota V6108-CRReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
EmissionsStage IVReference
Rated Power (gross)99.2 kWReference
Rated RPM2200Reference
Torque543.8 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed 8-speed power shiftReference
32-speed creeperReference
Type8-speed power shiftReference
Gears24 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Eight power shift gears in three synchronized ranges with shuttle.Reference
TypecreeperReference
Gears32 forward and reverseReference
PTO & Hydraulics
Valves2 to 4Reference
Pump flow82.5 lpmReference
Rear TypeIIIReference
Controlposition and lower-link draft controlReference
Rear lift (at ends)6100 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase268 cmReference
Wheelbase267 cmReference
Weight10681 to 11166 poundsReference
Front tire420/70R24Reference
Rear tire520/70R38Reference
Standard tires (ag)Front: 420/70R24. Rear: 520/70R38Reference
Length447 cmReference
Width232 cmReference
Height288 cmReference
Weight4844 kgReference
Weight5064 kgReference
Front tread183 to 187 cmReference
Rear tread160/166/175/181 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
