Tractor · 2005Unverified

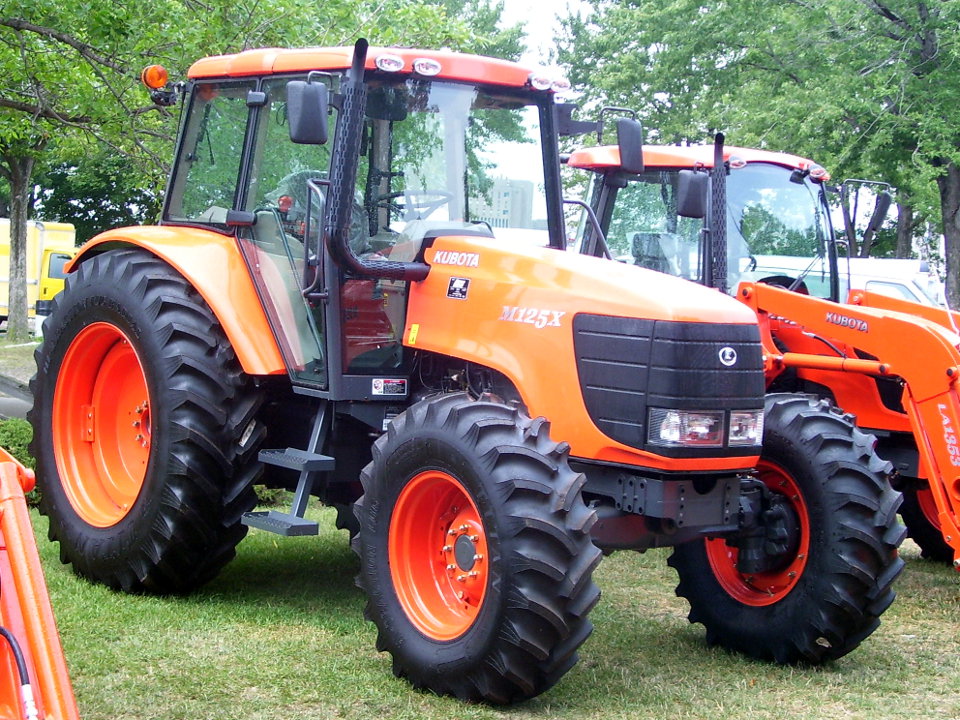

Kubota M125X
Kubota M125X · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
4390 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Original price$60,946 (2011)Reference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Steeringhydrostatic power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioningReference
Engine
Kubota 5.8L 5-cyl dieselReference
Engine93.2 kWReference
Kubota F5802TE2Reference
turbocharged dieselReference
5-cylinderReference
liquid-cooled inlineReference
Displacement5.8 LReference
Bore/Stroke109 x 125 mmReference
Power93.2 kWReference
Air cleaner10-inch dry dual elementReference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity13.6 LReference
Transmission
16-speed partial power shiftReference
24-speedReference
TransmissionIntelli-ShiftReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Oil capacity57.7 LReference
TransmissionIntelli-Shift creeperReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)76.8 kWReference
Hydraulic system57.7 LReference
Typeopen centerReference
Capacity57.7 LReference
Valves2 to 4Reference
Pump flow75.7 lpmReference
Total flow135.5 lpmReference
Steering flow59.8 lpmReference
Rear TypeIIReference
Rear lift (at ends)2634 kgReference
Rear lift (at 24"/610mm)2360 kgReference
Rear lift (at 24"/610mm)4285 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2210Reference
Capacities
Fuel190.0 LReference
Front axle16.6 LReference
Dimensions
Wheelbase268 cmReference
Weight4390 kgReference
Front tire14.9R24Reference
Rear tire18.4R38Reference
Standard tires (ag)Front: 14.9R24. Rear: 18.4R38Reference
Optional tires (ag)Front: 13.6-24. Rear: 16.9-38Reference
Length436 cmReference
Width212 cmReference
Height272 cmReference
Ground clearance61 cmReference
Front tread164 to 173 cmReference
Front tread203 cmReference
Rear tread152 to 203 cmReference
Kubota M125X attachments

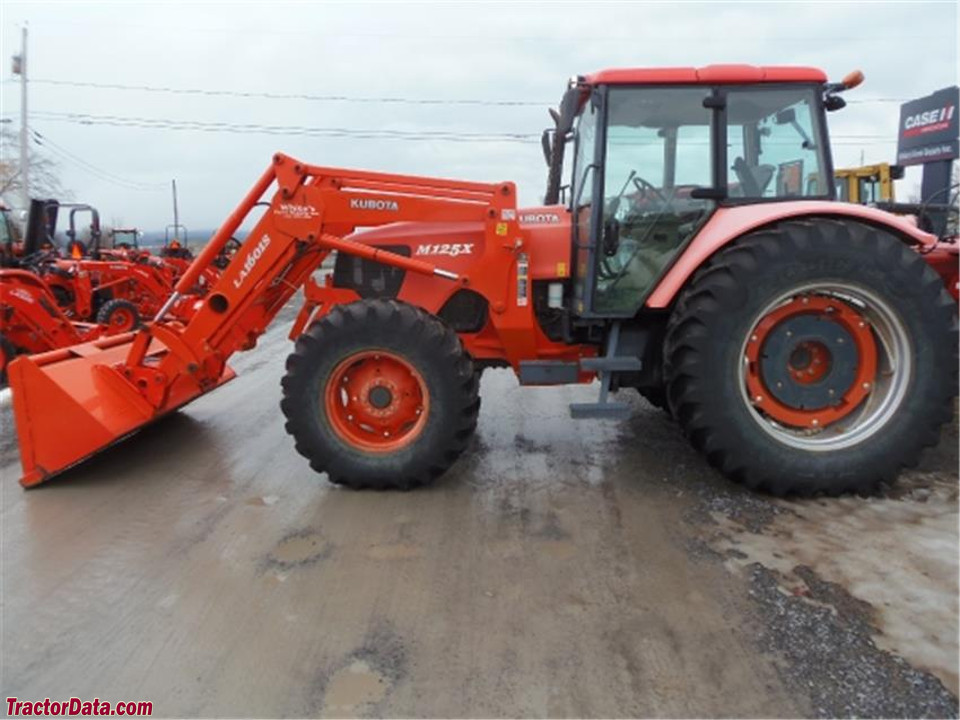

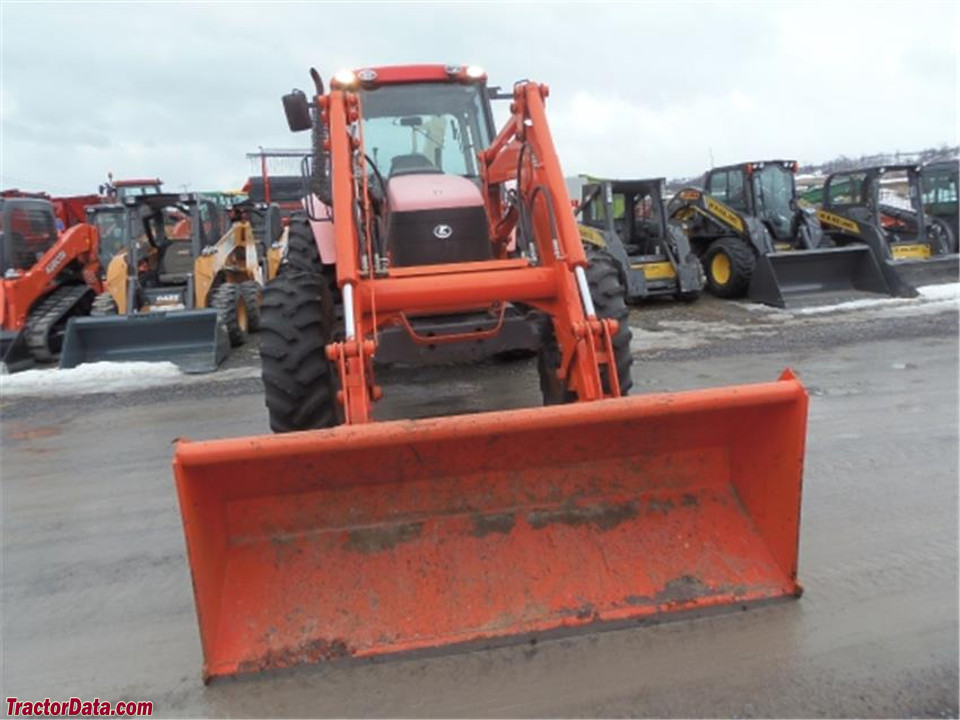

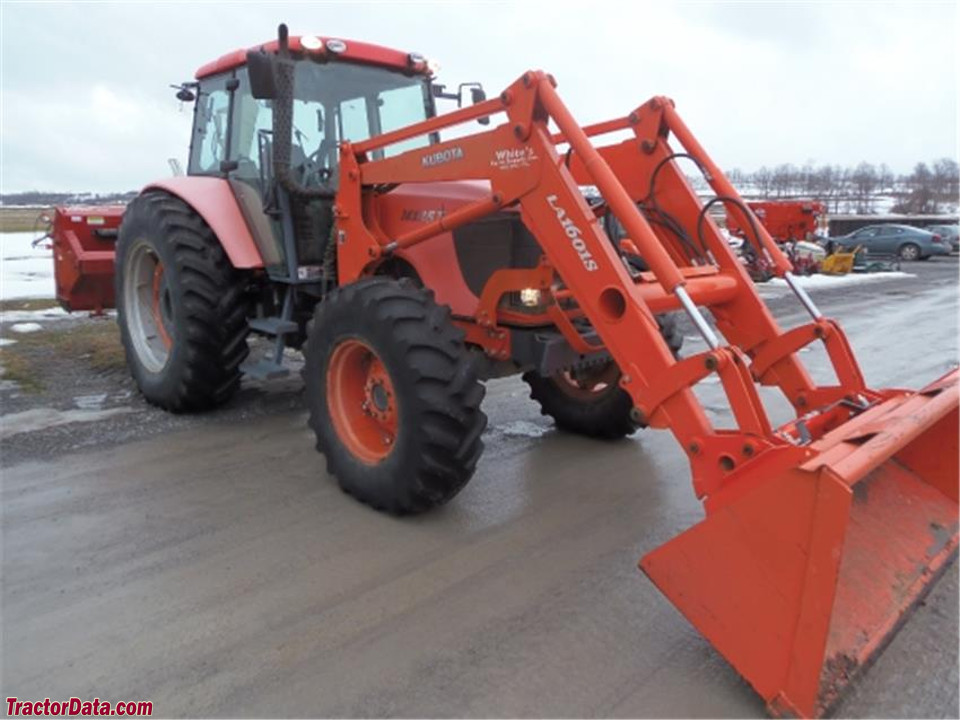

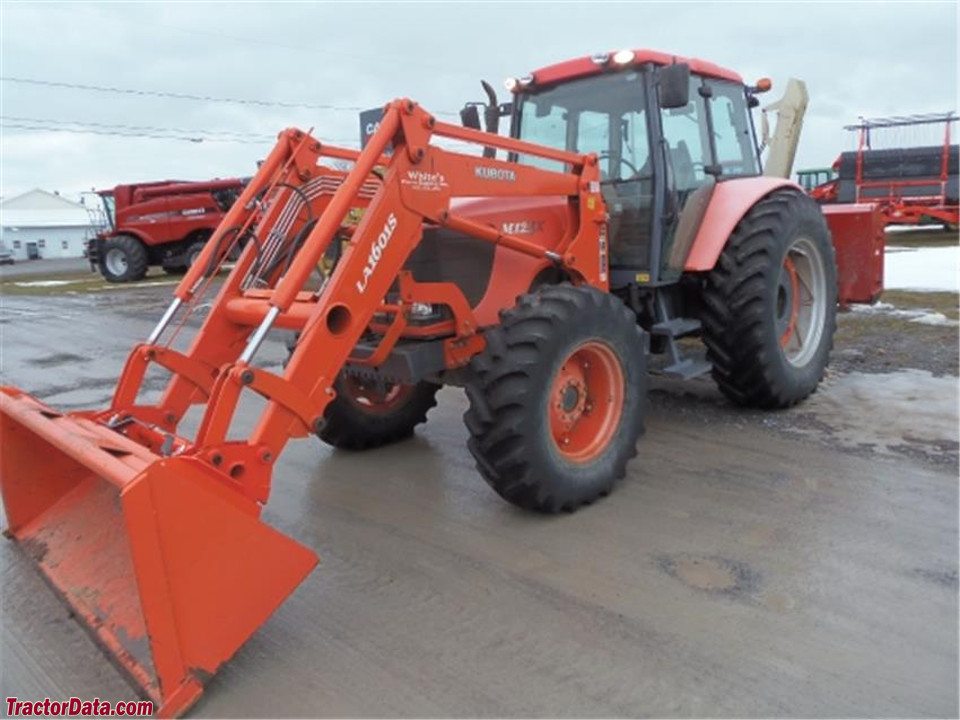

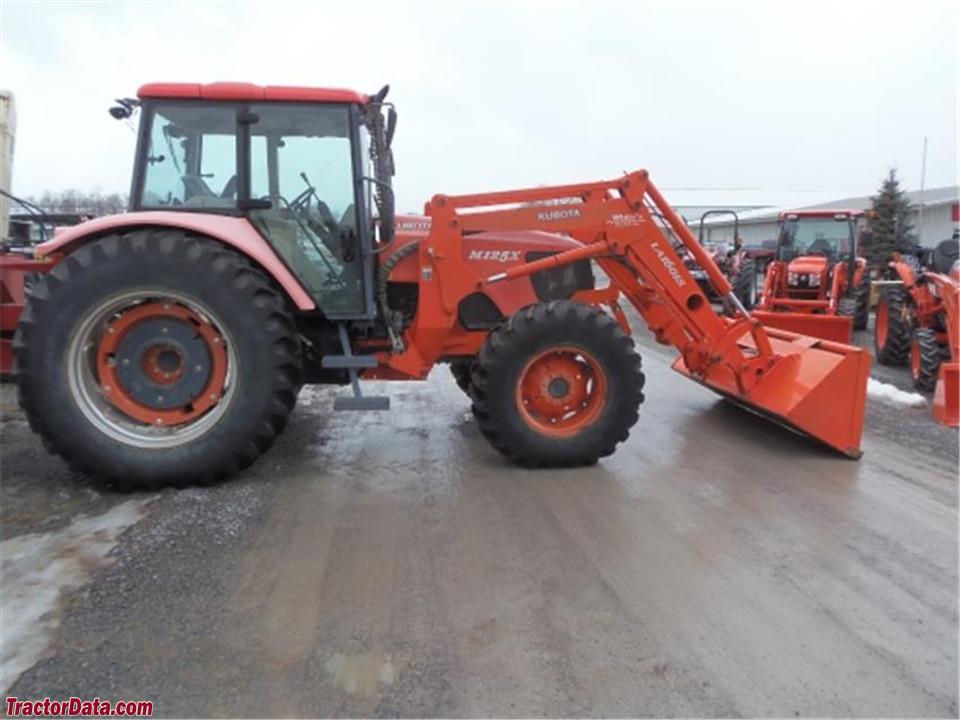

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery CCA1045Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
