Tractor · 2009Unverified

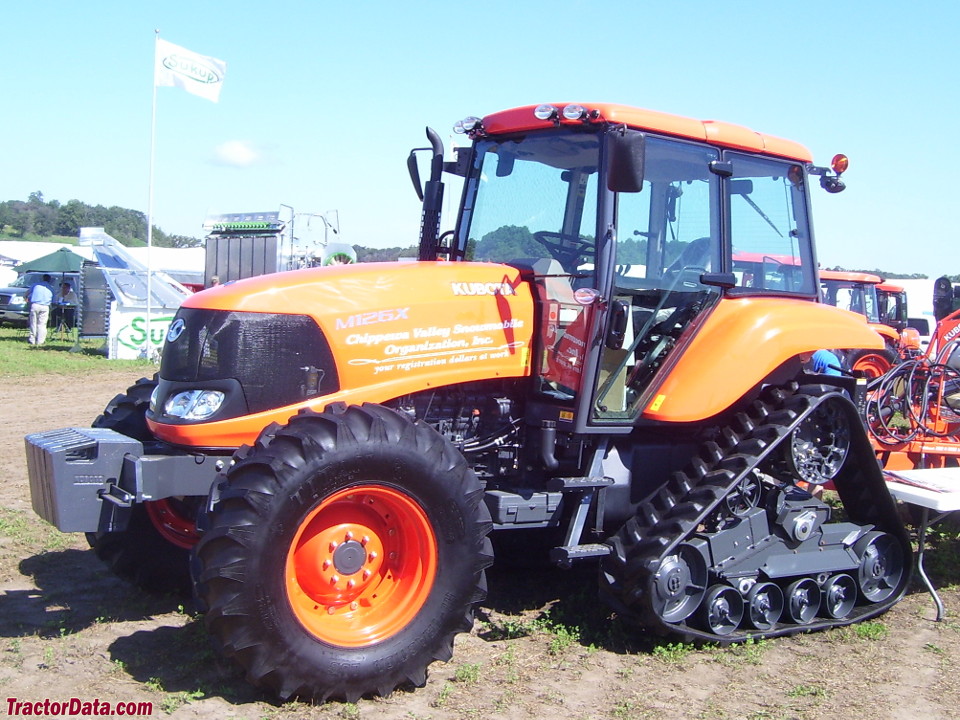

Kubota M126X Power Krawler
Kubota M126X Power Krawler — Half-track Crawler tractor · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
5200 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Half-track Crawler tractorReference
Original price$76,964Reference
Drivehalf-trackReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional radio/CD-player.Reference
Variants
M126Xwheeled tractorReference
Engine
M126X Power Krawlerhalf-trackReference
Kubota 6.1L 4-cyl dieselReference
Engine (net)93.2 kWReference
front-end loaderReference
Ag front14.9R24Reference
Ag rear16-inch tracksReference
Kubota V6108-TS-CRSReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke118 x 140 mmReference
Power (net)93.2 kWReference
Air cleanerdual dry elementsReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity14.6 LReference
Coolant capacity15.0 LReference
Transmission
16-speed partial powershiftReference
24-speedReference
TransmissionIntelli-ShiftReference
Typepartial powershiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discsReference
Oil capacity59.8 LReference
Eight-speed power shift two-range mechanical shift operated via clutch button.Reference
TransmissionIntell-Shift CreeperReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)80.5 kWReference
Hydraulic system59.8 LReference
Typeopen centerReference
Capacity59.8 LReference
Valves2 to 4Reference
Pump flow77.2 lpmReference
Total flow135.1 lpmReference
Steering flow57.9 lpmReference
Rear TypeIIReference
Rear lift (at ends)2634 kgReference
Rear lift (at 24"/610mm)2360 kgReference
Rear lift (at 24"/610mm)4285 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2035Reference
Engine RPM1000@2210Reference
Capacities
Fuel190.0 LReference
Front axle16.6 LReference
Dimensions
Wheelbase268 cmReference
Weight5200 kgReference
Front tire14.9R24Reference
Rear tiretracksReference
Length436 cmReference
Width217 cmReference
Height270 cmReference
Clearance (rear axle)43 cmReference
Front tread173 cmReference
Rear tread178 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery volts12Reference
Attachment overview

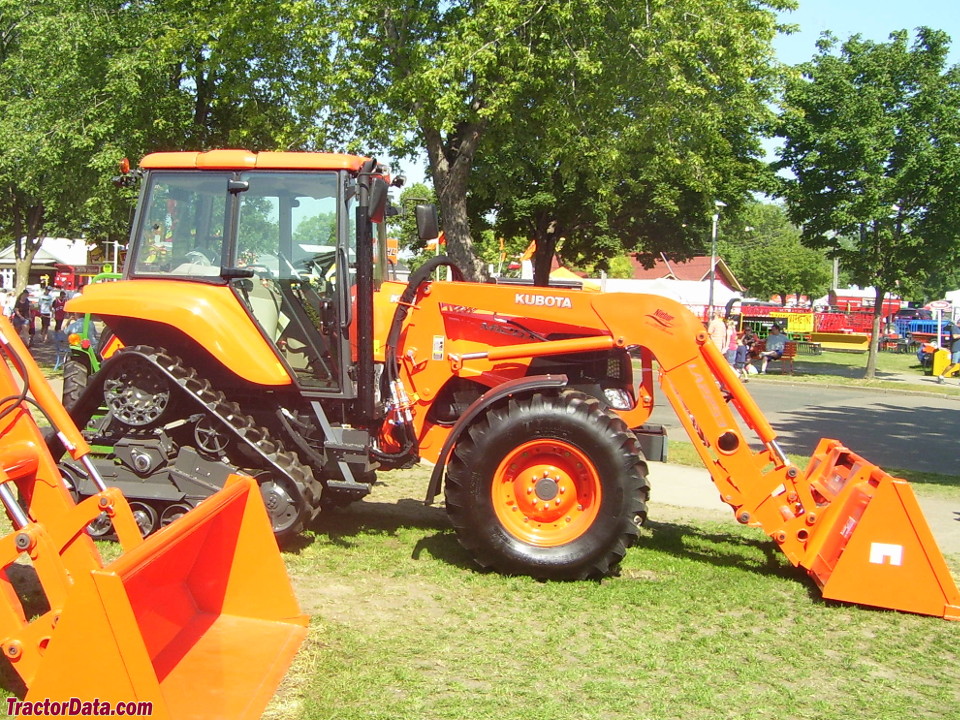

Kubota LA2253 Height Position loaderReference
Kubota LA2253 Power Position loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
