Tractor · 2008Unverified

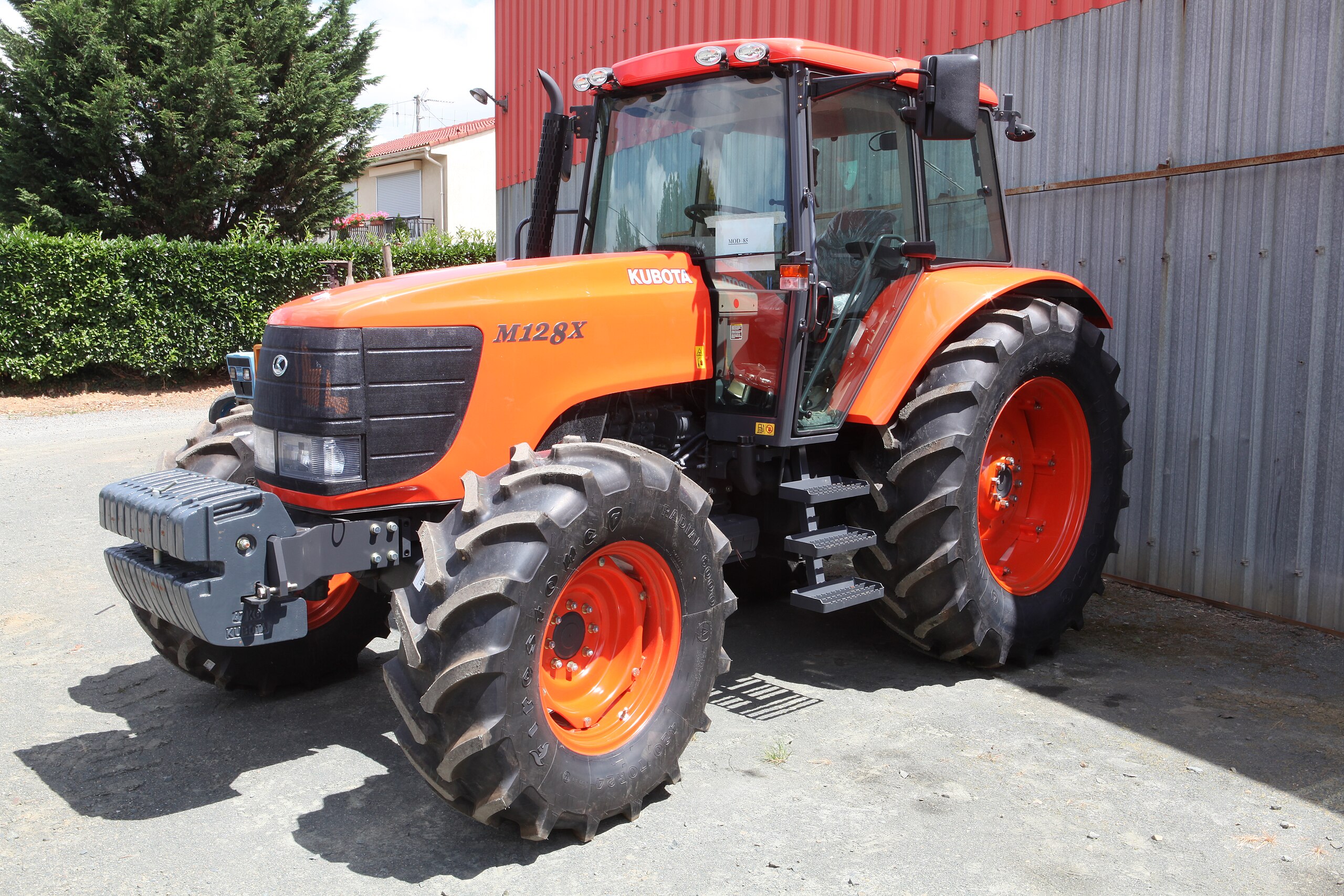

Kubota M128X

Name: Kubota M128X
Brand: Kubota

Kubota M128X — Row-Crop tractor · 134 hp. Reference specifications; pending source verification.

The Kubota M128X is a tractor model rated at 134 hp, positioning it at the more powerful end of its class. Manufactured between 2008 and 2010, this model features a 4-cylinder diesel liquid-cooled engine. It is equipped with four-wheel drive and a hydrostatic transmission. The listed operating weight of the Kubota M128X is 4409 kg, making it suitable for operations spanning approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

134 hp

Weight

4409 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

134 hp

Recorded weight

4409 kg

Transmissions

16-speed partial powershift

Production years

2008-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Row-Crop tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Engine

Kubota 6.1L 4-cyl dieselReference

Fuel tank190.0 LReference

Engine (gross)99.9 kWReference

Engine95.4 kWReference

Kubota A68-TI-CRSReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke118 x 140 mmReference

Power95.4 kWReference

Power (gross)99.9 kWReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed partial powershiftReference

24-speedReference

TransmissionIntelli-ShiftReference

Typepartial powershiftReference

Gears16 forward and reverseReference

Gears24 forward and reverseReference

PTO & Hydraulics

PTO (claimed)84.3 kWReference

Valves2 to 4Reference

Pump flow77.2 lpmReference

Steering flow57.9 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)2360 kgReference

Rear lift (at 24"/610mm)4285 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase268 cmReference

Weight4409 kgReference

Front tire420/70R24Reference

Rear tire520/70R38Reference

Ag front420/70R24Reference

Ag rear520/70R38Reference

Length445 cmReference

Width217 cmReference

Height275 cmReference

Ground clearance54 cmReference

Electrical

Charging systemalternatorReference

Charging amps80Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
